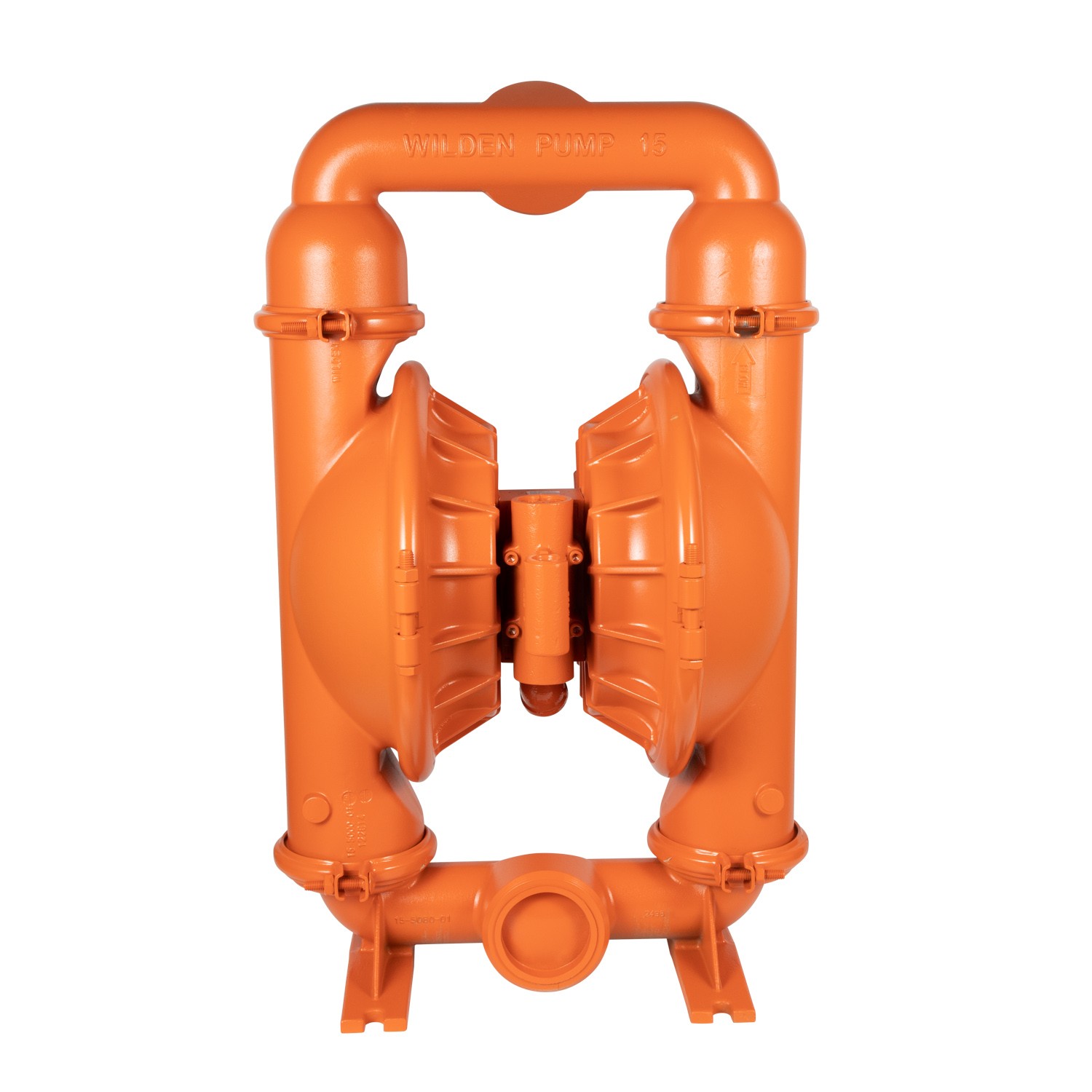

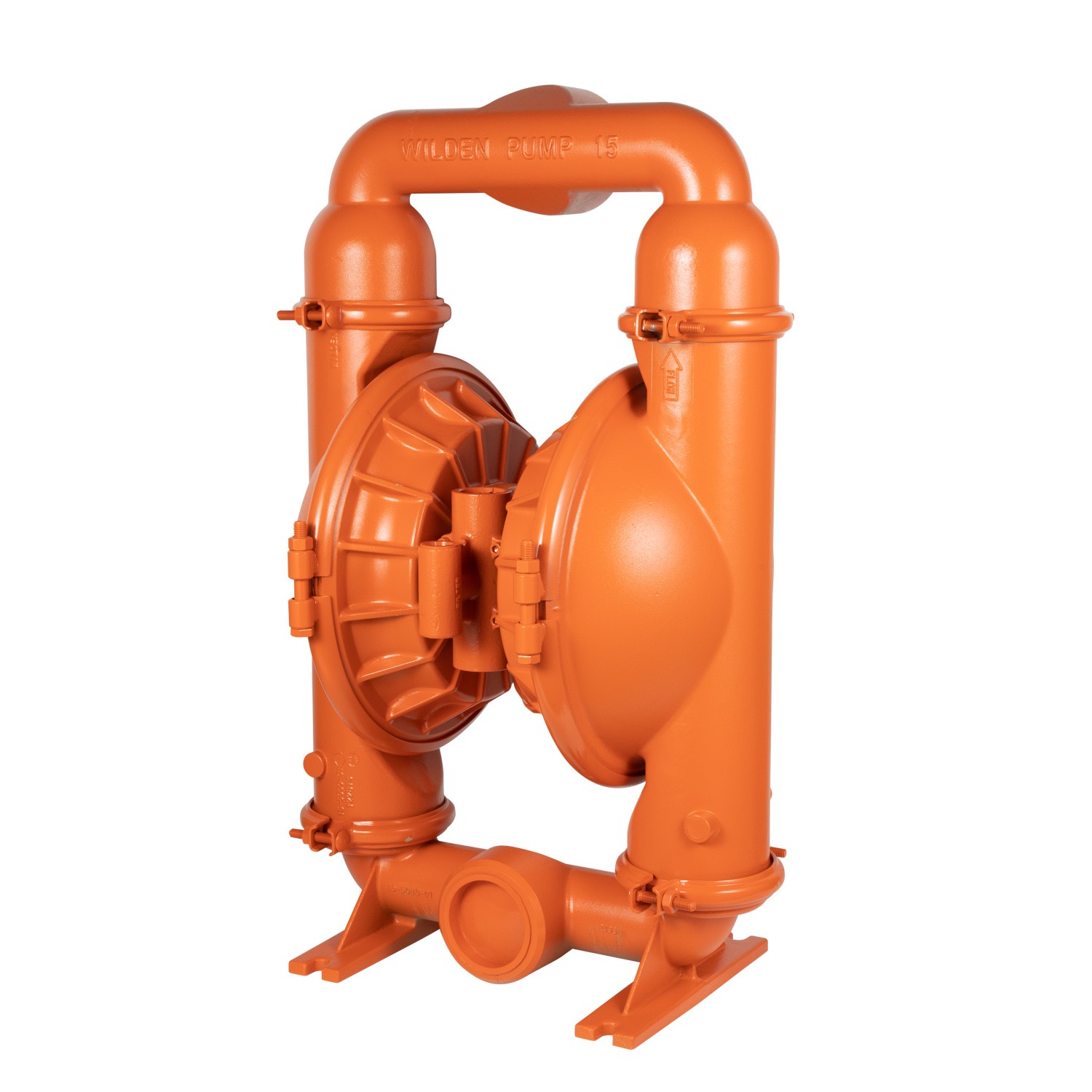

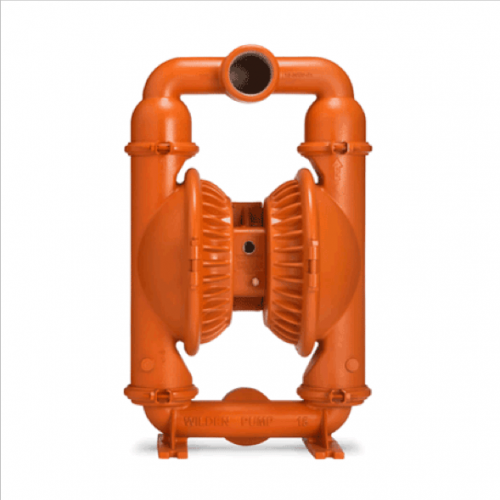

WILDEN   PX8 clamp type metal pneumatic separator  membrane pump

WILDEN   PX8 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 35 kg (78 lbs);

316 Stainless steel transport weight: 53 kg (117 lbs)

Ductile iron transport weight: 49 kg (109 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel;

Intermediate: aluminum alloy, stainless steel;

Air valve: aluminum alloy, stainless steel;

Performance parameters of WILDEN Wilton PX8 clamp metal pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm);

Media outlet dimensions: 2” (51 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 712 lpm (188 gpm);

Teflon PTFE: 617 lpm (163 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 7.4 m (24.4’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 4.5 m (14.8’), wet suction 8.7 m (28.4’);
