DESMI ROTAN® GP Cast Iron Gear Pump
DESMI ROTAN® GP Cast Iron Gear Pump
Desmi ROTAN® is the world's leading manufacturer of internal gear
pumps. ROTAN® internal gear pumps provide favorable flow conditions as the fluid flow direction
changes only require a slight adjustment to the pump.

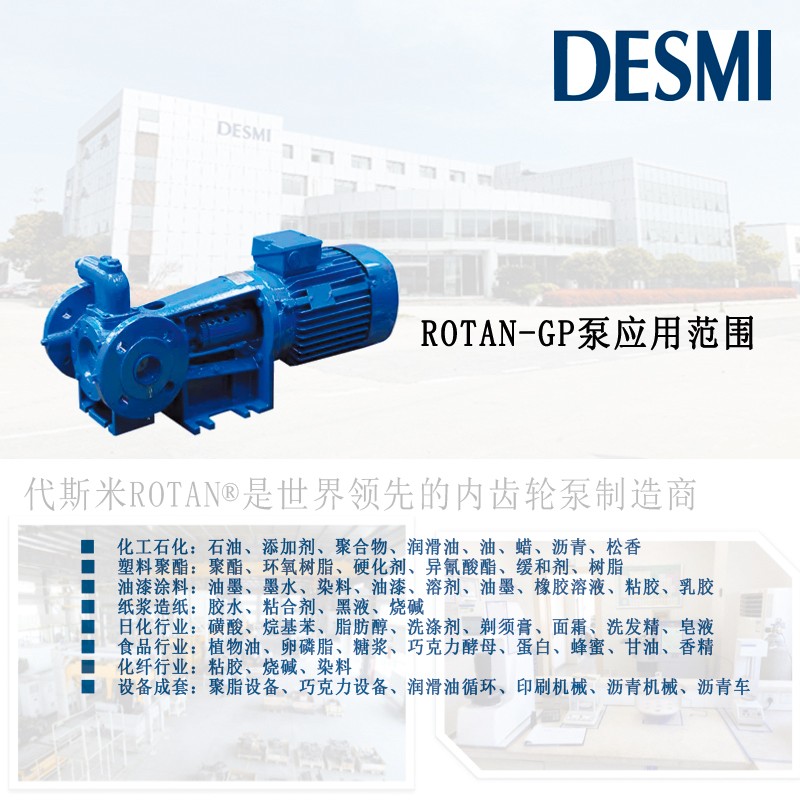

DESMI ROTAN® GP Cast Iron Gear Pump
For clean, particulate-free medium cast iron pump.
The simple and compact structure makes it a low-cost pump that is often used in OEM
customers' changes. Compact OEM models are available.
GP pumps are designed for motors connected to IEC and NEMA flanges. A 90° inlet and outlet structure can be provided.
DESMI ROTAN® GP Cast Iron Gear Pump Features and Advantages:
· Provide the most compact series of gear pumps suitable for tight spaces
· The most economical pump option for low to medium viscosity applications for high-speed operation
· Provides vertical installation options to further reduce device volume
DESMI ROTAN® GP Cast Iron Gear Pump Technical parameters:
Flow range: Maximum 50 m3/h / 220 gpm
Speed up to 1750 rpm
Differential pressure up to 16 bar /232 psi
Self-priming height When self-priming, up to 0.5 bar / 7.25 psi vacuum
Up to 0.8 bar / 11.6 psi vacuum during transport
Viscosity range up to 7500 cSt
Temperature up to 150°C / 302°F
DESMI ROTAN® GP Cast Iron Gear Pump Conveying medium
Cleaning oil
Ethylene glycol
Vegetable oil
Solvent
lubricating oil
Waste oil
fish oil
Desmi DESMI was founded in 1834 and is one of the oldest companies in Denmark.
Now Desmi DESMI's solutions are sold to more than 100 countries through subsidiaries
and agents around the world.
DESMI specializes in the development, manufacturing, sales and services of pump and
pumping solutions, including a variety of environmental equipment for oil spill recovery,
seaweed and waterway cleaning.
DESMI specializes in liquid delivery and has a wide range of applications in the process industry.
Industrial pumping solutions include ROTAN® internal gear pumps and efficient DESMI
centrifugal pumps.
DESMI provides efficient and reliable pump solutions for all utility applications.
To better serve cities, buildings and residents, our primary belief is reliability, energy
optimization and friendly service of equipment operations.

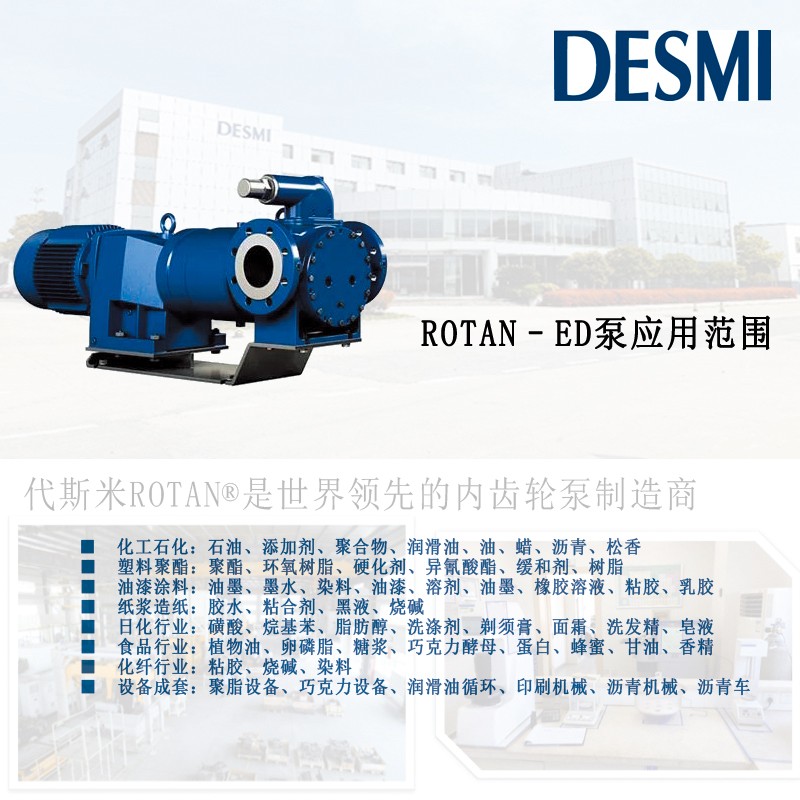

Since Danish imported water pumps require very little maintenance, ED pumps are a
fairly economical solution compared to traditional sealed pumps. Especially in applications
where dual mechanical seals are required. Usually, the application conditions of different
working conditions are different, which requires sealing and auxiliary flushing systems,
and requires frequent maintenance or replacement. Therefore, the life cycle cost of ED
pumps is generally much lower than that of dual mechanical seals.
Can provide 90° import and export structure
