P220/SSPPP/VTS/VT/STF/0677  WILDEN 02-11552 AODD Pump, Stainless Steel

AODD Pump, Stainless Steel, 1" Pro-Flo® FIT Series, Bolted, Threaded, w/ FKM

Item: 02-11552

Description: P220/SSPPP/VTS/VT/STF/0677

Item Overview for Wilden® 02-11552

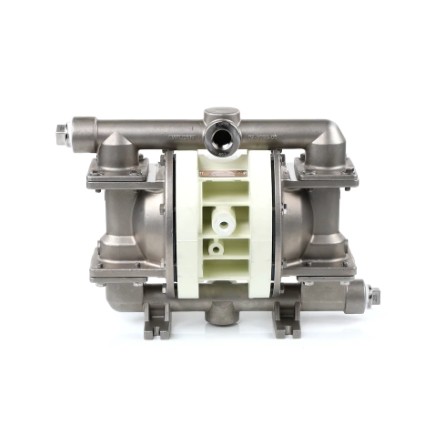

The Wilden® 02-11552, a 1" Pro-Flo® FIT Series bolted AODD pump built from Stainless Steel with FKM diaphragms and FKM ball valves, delivers up to 56 GPM at 120 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures consistency and stability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-horizontal-back inlet and threaded NPT center-horizontal-front discharge, applicable to a broad spectrum of material handling and transfer requirements. CE|UKCA certified.

Key Specifications

discharge orientation: center horizontal front

inlet orientation: center horizontal back

discharge size (in.): 1.0

default max diameter solids (in.): 0.25

inlet size (in.): 1.0

max flow rate (gpm): 56.0

max diameter solids (in.): 0.25

WILDEN Pump Description

P220/SSPPP/VTS/VT/STF/0677

Item Number Pump

02-11552

Port Size

1"

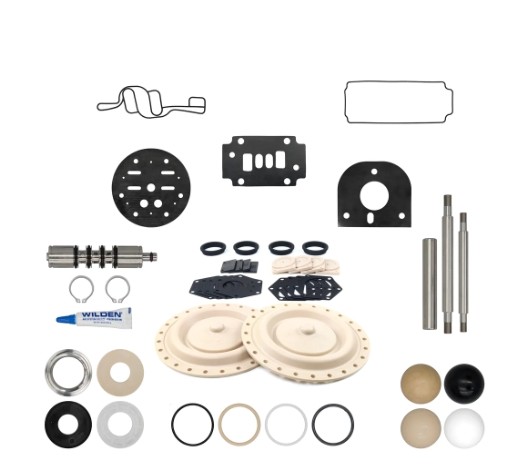

Air Kit

02-9985-20

Wet Kit

NWK

Air Distribution System

Pro-Flo®

Pump Construction

Stainless Steel

Diaphragms

Viton

Valve/ Balls

Viton

Valve Seats

SS with Teflon O-ring

Outer Piston

Stainless Steel

Air Chamber

Polypropylene

Center Block

Polypropylene

Air Valve

Polypropylene

Capacity GPM

56

Capacity Liters/min

212

Pump Weight Lbs

51,0

Pump Weight Kilo

23

Specialty Code

Center Ported, NPT Inlet & Discharge

Wilden O-ring used in 1" Pumps, PTFE

Item: 70-1280-55

Description: Genuine Wilden Spare Part, PTFE. O-ring used in 1" Bolted Metal Pumps.

08-6180-03-42: Screw, Hex Head Cap Screw

Item: 08-6180-03-42

Description: Screw, Hex Head Cap Screw (5/16-18 X 1), Stainless Steel

02-7010-03: Pipe Plug

Item: 02-7010-03

Description: Pipe Plug (1" NPT), Stainless Steel

02-6731-03: Washer, Flat

Item: 02-6731-03

Description: Washer, Flat (.344 X .688 X .063), Stainless Steel

02-5095-03-677: Inlet Manifold for 1" Stainless Steel Pumps

Item: 02-5095-03-677

Description: Inlet Manifold for 1" NPT Threaded Stainless Steel Bolted Pumps

Key Specifications

fluid connection inlet size (in.): 1

02-5035-03-677: Discharge Manifold for 1" Stainless Steel Pumps

Item: 02-5035-03-677

Description: Discharge Manifold for 1" NPT Threaded Stainless Steel Bolted Pumps

02-5015-03: Liquid Chamber for 1" Stainless Steel Pumps

Item: 02-5015-03

Description: Liquid Chamber for 1" Stainless Steel Bolted (P200) Pumps

02-4550-03: Outer Piston for 1" Stainless Steel

Item: 02-4550-03

Description: Outer Piston for 1" Stainless Steel Rubber/TPE/Full-Stroke PTFE Diaphragm Fitted Pumps

02-3810-03: Shaft for 1" Rubber Diaphragm Fitted Brahma (B) Series

Item: 02-3810-03

Description: Shaft for 1" Rubber Diaphragm Fitted Brahma (B) Series Pumps

02-3701-01: Inner Piston for 1" Aluminum

Item: 02-3701-01

Description: Inner Piston for 1" Aluminum Rubber/TPE/Full-Stroke PTFE Diaphragm Fitted Pumps

02-1205-55: Wetted Path O-ring in Ptfe

Item: 02-1205-55

Description: Wetted Path O-ring in Ptfe (1.734" ID × 0.139" W)

02-1125-03: Valve Seat for 1" Pumps, Stainless Steel

Item: 02-1125-03

Description: Valve Seat in Stainless Steel for 1" Bolted Metal Pumps

02-1085-53: Valve Ball for 1" Pumps, FKM

Item: 02-1085-53

Description: Valve Ball in FKM for 1" Bolted Metal Pumps

02-1010-53: Diaphragm for 1" pumps, FKM

Item: 02-1010-53

Description: Traditional FKM (VTS) diaphragm for 1" pumps
