ALLWEILER twin-screw pump｜Ideal for conveying high-viscosity media smoothly and efficiently
ALLWEILER twin screw pump for conveying high-viscosity media Product overview
ALLWEILER Twin-Screw Pump is one of the core product lines of the German ALLWEILER company. ALLWEILER, founded in 1860,
is the oldest pump manufacturer in Germany and is recognized by the industry as one of the top ten industrial pump manufacturers
in the world-5.
ALLWEILER's twin-screw pump technology originated from the Dutch company HOUTTUIN, which was merged in 1995. Founded in
1929, HOUTTUIN is an internationally renowned professional twin-screw pump manufacturer, and its twin-screw pump technology
has a profound influence in China -5.

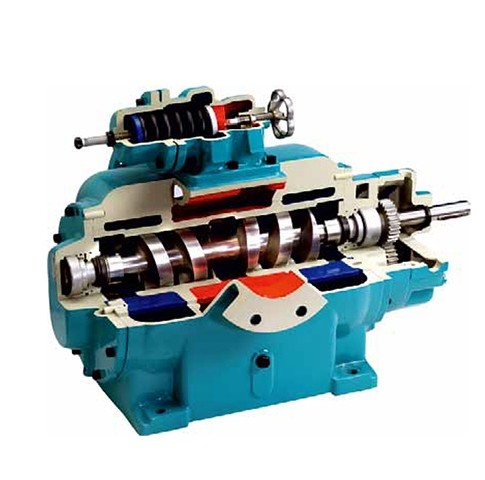

The core structure of the twin-screw pump is two screw shafts of the same size - a driving shaft and a driven shaft, which achieve
synchronous rotation through gear transmission. A small gap of 0.05 ~ 0.15 mm is maintained between the screw and the pump
body to ensure smooth operation and minimal wear-1. This product is widely used in the transportation of high-viscosity oils such
as lubricants, crude oil, asphalt, and fuel oil, covering industries such as food, chemicals, textiles, plastics, electronics, wood industry,
boilers, power plants, etc.-5.
Brand positioning: ALLWEILER twin-screw pumps are famous for their low pulsation, long life, and high reliability. Its HOUTTUIN
technology occupies a leading position in the global twin-screw pump field. ALLWEILER product line covers single-screw pumps,
twin-screw pumps, three-screw pumps, hose pumps, centrifugal pumps, axial flow pumps, etc., which can meet the application
needs of many industries-5.
Core technical features
1. Smooth and pulsation-free transportation
The twin-screw pump is designed based on the Archimedean screw principle. The two intermeshing screws and the pump body
together form a continuous sealed cavity, which smoothly pushes the medium from the suction side to the discharge side, achieving
almost pulsation-free transportation. This feature is especially important for processes that require stable flow rates.
2. Low wear and long life design
There is a small gap between the screw and the pump body, and there is no metal contact wear during operation -1. Coupled with
optimized gearbox design and superior hydraulic performance, component life is significantly extended and operating noise and
vibration are reduced -5.
3. Excellent media adaptability
Can handle high viscosity liquids (lubricating oil, fuel oil, asphalt, crude oil, etc.)-1
It has good adaptability to media containing solid particles and is less sensitive to impurities than a three-screw pump -1
Suitable for lubricating and non-lubricating media (can be selected according to material)
Wide flow range, up to 1600 m³/h-1
4. Flexible installation method
ALLWEILER twin-screw pumps provide a variety of installation methods such as horizontal, vertical, and submerged, as well as
various configurations such as horizontal installation and vertical installation, making it easy to adapt to different site conditions-8.
5. Special series available
ALLWEILER twin-screw pumps are available in special series for special applications requiring higher pressures up to 40 bar-8.
6. Magnetic drive option
Magnetic drive type is optional to achieve zero-leakage operation and is suitable for process industries and environmental
protection projects with strict sealing requirements-7.
Product range overview
Installation method instructions
Horizontal Twin Screw Pump Standard Horizontal Installation Configuration
Vertical Twin Screw Pump Vertical Mounting Configuration
Submersible twin-screw pump, submersible installation configuration, suitable for underwater working conditions
Special series for special applications up to pressure 40 bar
Note: The above series are ALLWEILER official product classification-8, please consult for confirmation for specific models.
Core application areas
Application areas Typical scenarios
Petrochemical industry Crude oil transportation, fuel oil/heavy oil transportation, lubricating oil circulation, asphalt transportation-1
Food industry: food slurry transportation, viscous material handling
Chemical process: high viscosity chemical transportation, process media circulation
Plastic industry: Conveying viscous materials such as polymers and resins
Textile printing and dyeing dye and auxiliary transportation
Power industry fuel delivery, lubricating oil system
Ship/Ocean Engineering Marine Fuel Oil, Lubricating Oil System (DNV-GL can be certified)
General industrial lubricant and coolant transportation
Applicable media types
Lubricating oil, grease, crude oil, heavy oil, fuel oil, asphalt, high-viscosity chemicals, polymers, resins, slurries, etc.-1-5
Summary of product advantages
Advantages Description
✅ German quality + Dutch technology, century-old German pump industry, integrated with HOUTTUIN twin-screw technology
✅ Smooth and pulsation-free, continuous low-pulsation transportation and stable flow
✅ Low wear and long life. The screw and pump body run in a gap, with minimal wear.
✅ Strong media adaptability and can handle media with high viscosity and particles.
✅Wide flow range up to 1600 m³/h, pressure up to 40 bar
✅ Flexible installation, horizontal/vertical/submersible options available
✅ Magnetic drive optional, zero leakage, suitable for environmental protection/process industry
✅ Complete series covering multiple industries and working conditions
Installation and Maintenance Guide
Installation precautions
Pipe cleaning: The inside of the pipe should be thoroughly cleaned before installation to prevent impurities from entering the
pump body.
Inlet and outlet connection: ensure reliable connection of inlet and outlet pipelines to avoid pipeline stress acting on the pump body
Pipe diameter matching: the inlet pipe should not be smaller than the pump inlet diameter to prevent cavitation
Gearbox inspection: Check whether there is sufficient lubricating oil in the gearbox before installation
Maintenance recommendations
Check seals regularly: watch for signs of leakage, magnetic drive version is maintenance-free
Gearbox maintenance: Regularly check the gearbox lubricating oil status and oil level
Gap inspection: After long-term operation, the gap between the screw and the pump body can be checked.
Spare pump management: The spare pump should be cranked regularly to prevent jamming
Why choose us?
Primary source of supply: German ALLWEILER original factory channel, 100% original and authentic
Technical support: Provide selection guidance, installation and commissioning and after-sales service
Original factory warranty: 1 year under normal use
Important note: This product is an original product of Germany ALLWEILER (HOUTTUIN Technology), please look for the brand
logo. Choosing non-original substitutes may result in substandard performance and seal failure.
