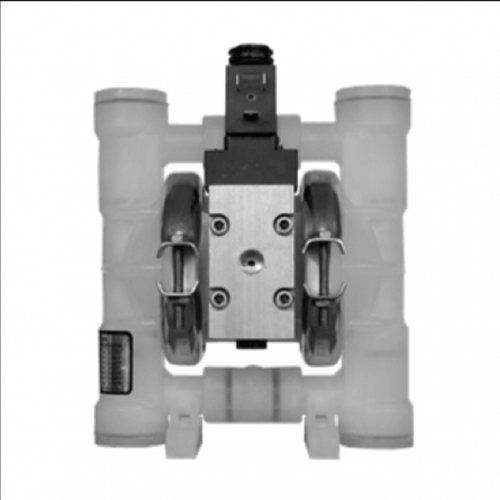

Wilden pneumatic diaphragm pump 1 inch P2 sewage/chemical pneumatic delivery pump 25 metal clamp pump plastic

WLDEN P2  bolted metal pneumatic diaphragm pump specifications:

Wetted parts material:

Wetted parts material

Shipping weight

Aluminum alloy

11 kg (24 lbs)

316 stainless steel

21 kg (47 lbs)

Ductile iron.

23 kg (51 lbs)

Elastomer material

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyurethane,

Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-wetted parts material

Middle part: aluminum alloy, polypropylene, acetal

Air valve: aluminum alloy, polypropylene, acetal

Performance parameters:

Medium inlet size

1” (25 mm)

Medium outlet size

1” (25 mm)

Air inlet size

1/4” (6 mm)

Maximum outlet pressure

8.6 Bar (125 psig)

Maximum solid particle diameter that can pass

1/4” (6.4 mm)

Maximum flow

Rubber/thermoplastic compounds

212 lpm (56 gpm)

PTFE.

168 lpm (44 gpm)

Maximum suction lift

Rubber/thermoplastic compounds

Dry suction 5.4 m (17.6’)

Wet suction 9.3 m (30.6’)

PTFE.

Dry suction 3.5 m (11.4’)

Wet suction 9.3 m (30.6’)
