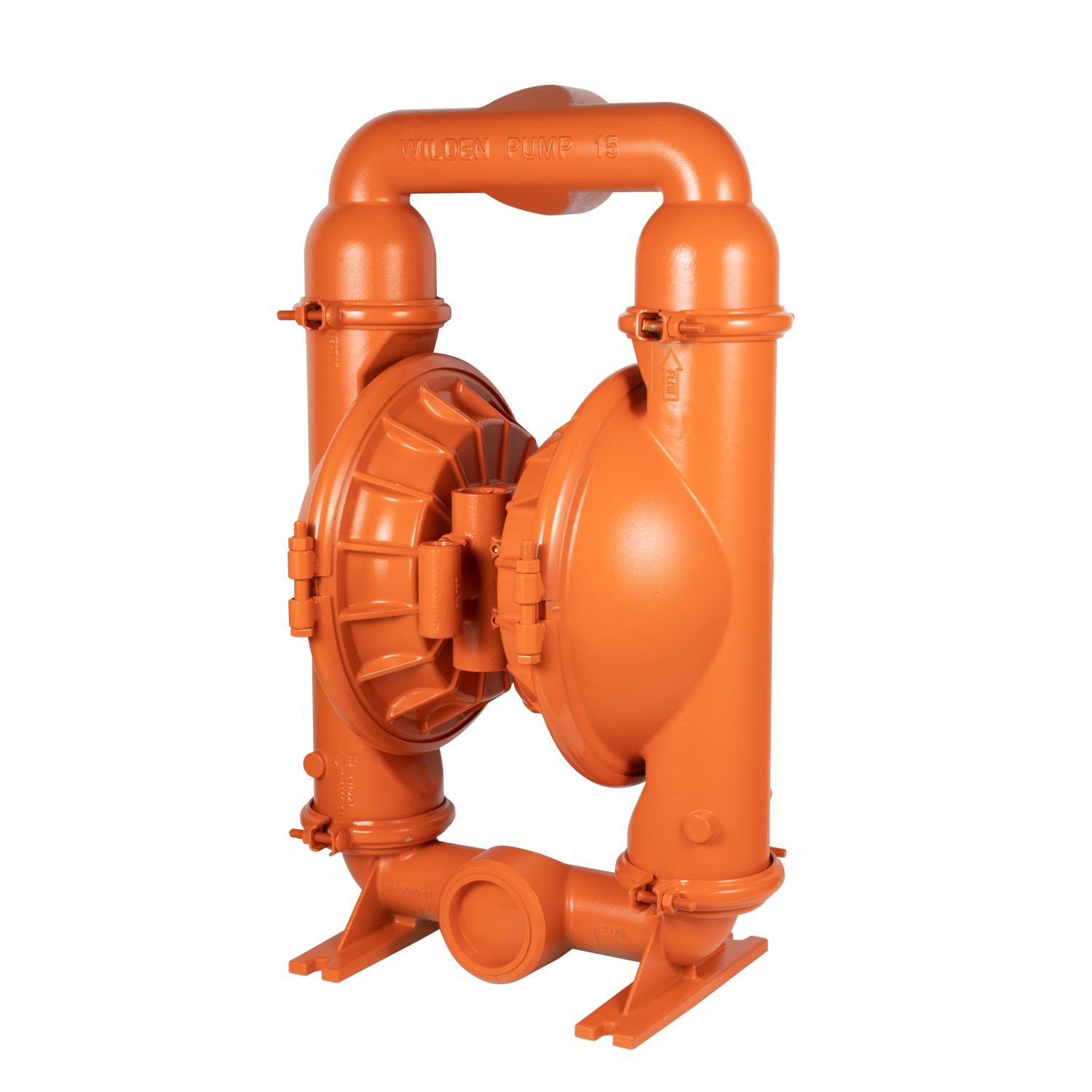

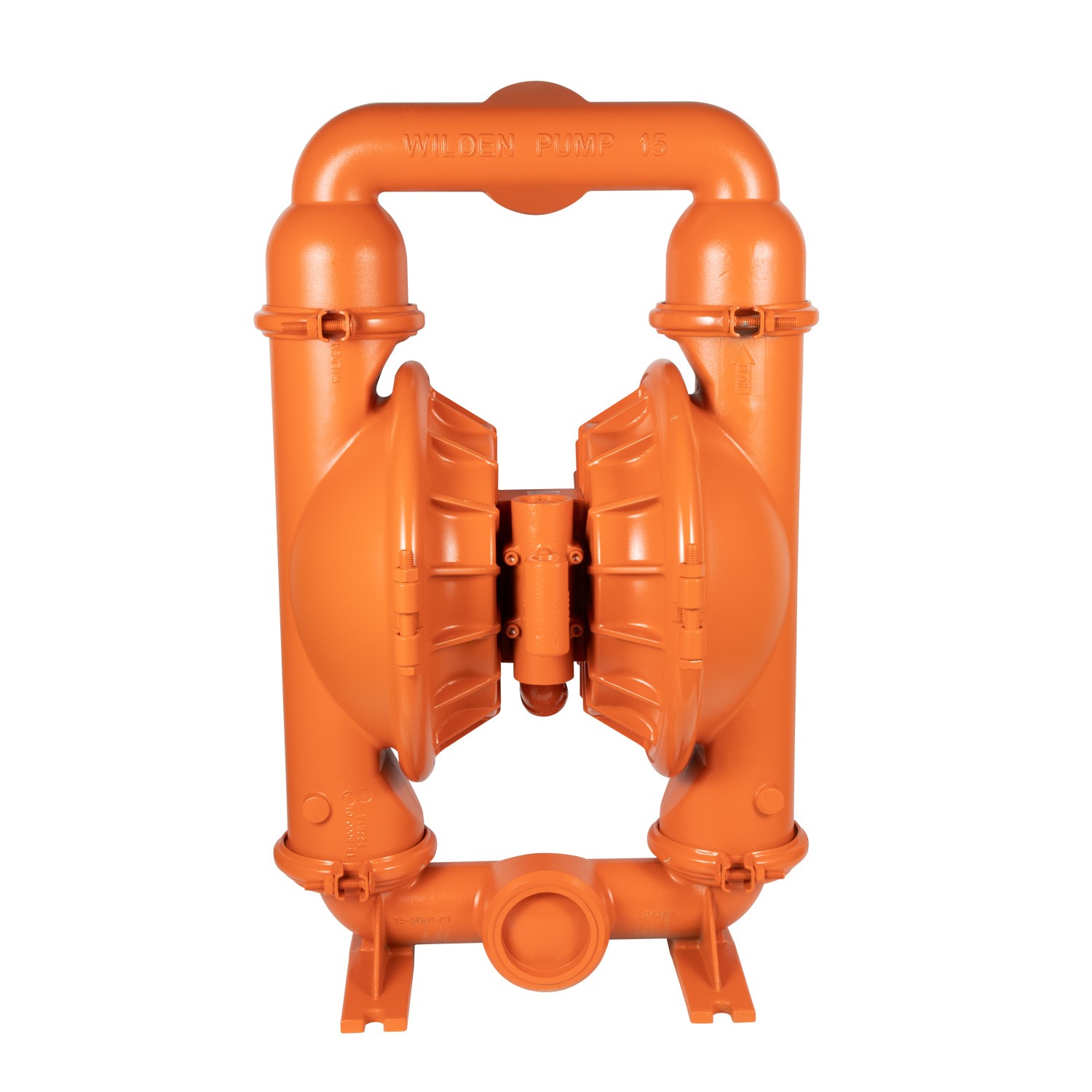

51 MM (2-) PRO-FLO Series Metal Clutch Pumps  P8 Wilden

51 MM (2-) PRO-FLO Series Metal Clutch Pumps  P8 Wilden specifications:

Material of liquid contact:

Aluminum alloy transport weight: 32 kg (70 lbs);

316 Stainless steel transport weight: 51 kg (112 lbs)

Ductile iron transport weight: 47 kg (104 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel, aluminum-covered Halar;

Intermediate: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton P8 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm);

Media outlet dimensions: 2” (51 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 591 lpm (156 gpm);

Teflon PTFE: 496 lpm (131 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 7.3 m (24.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 4.6 m (15.0’), wet suction 9.5 m (31.0’);
