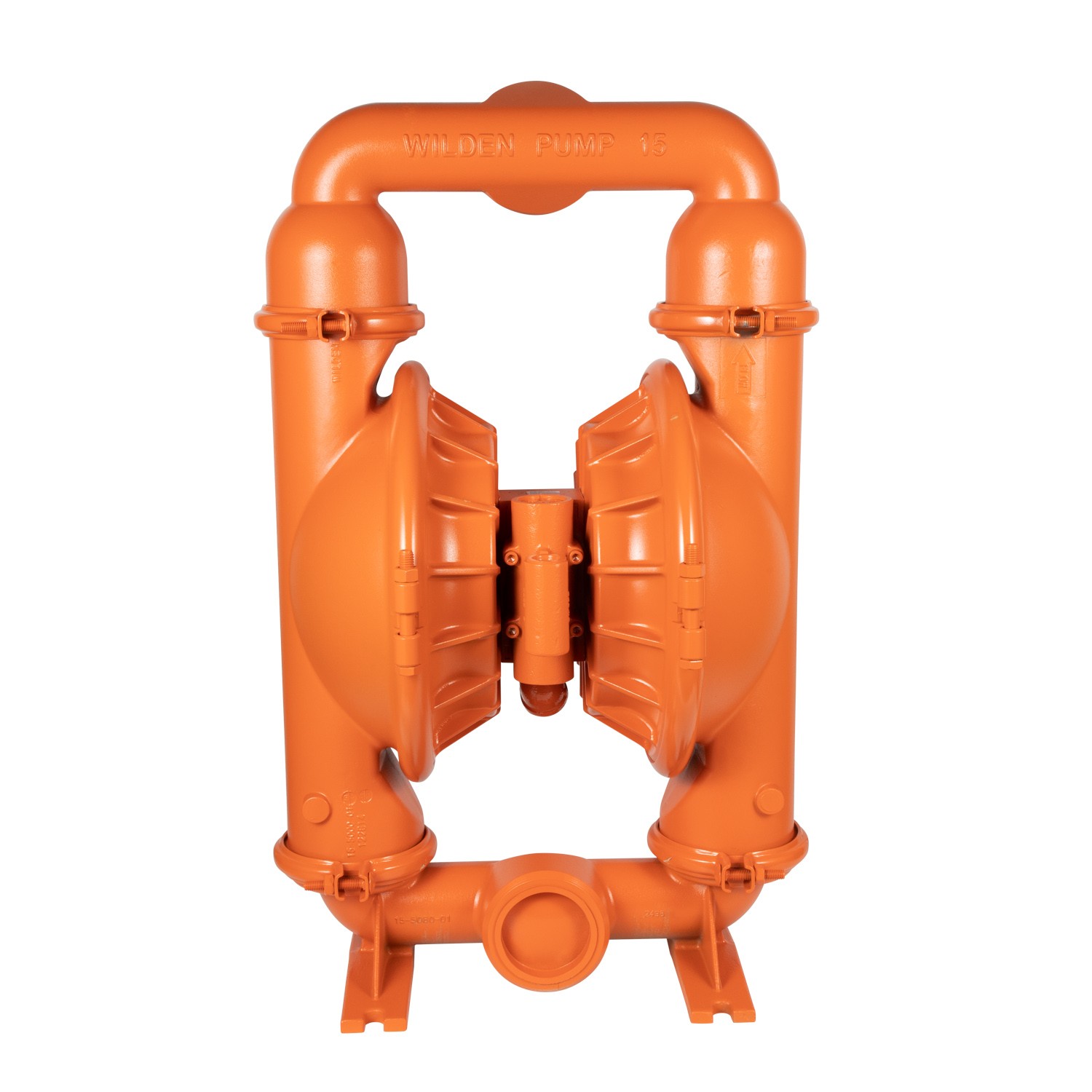

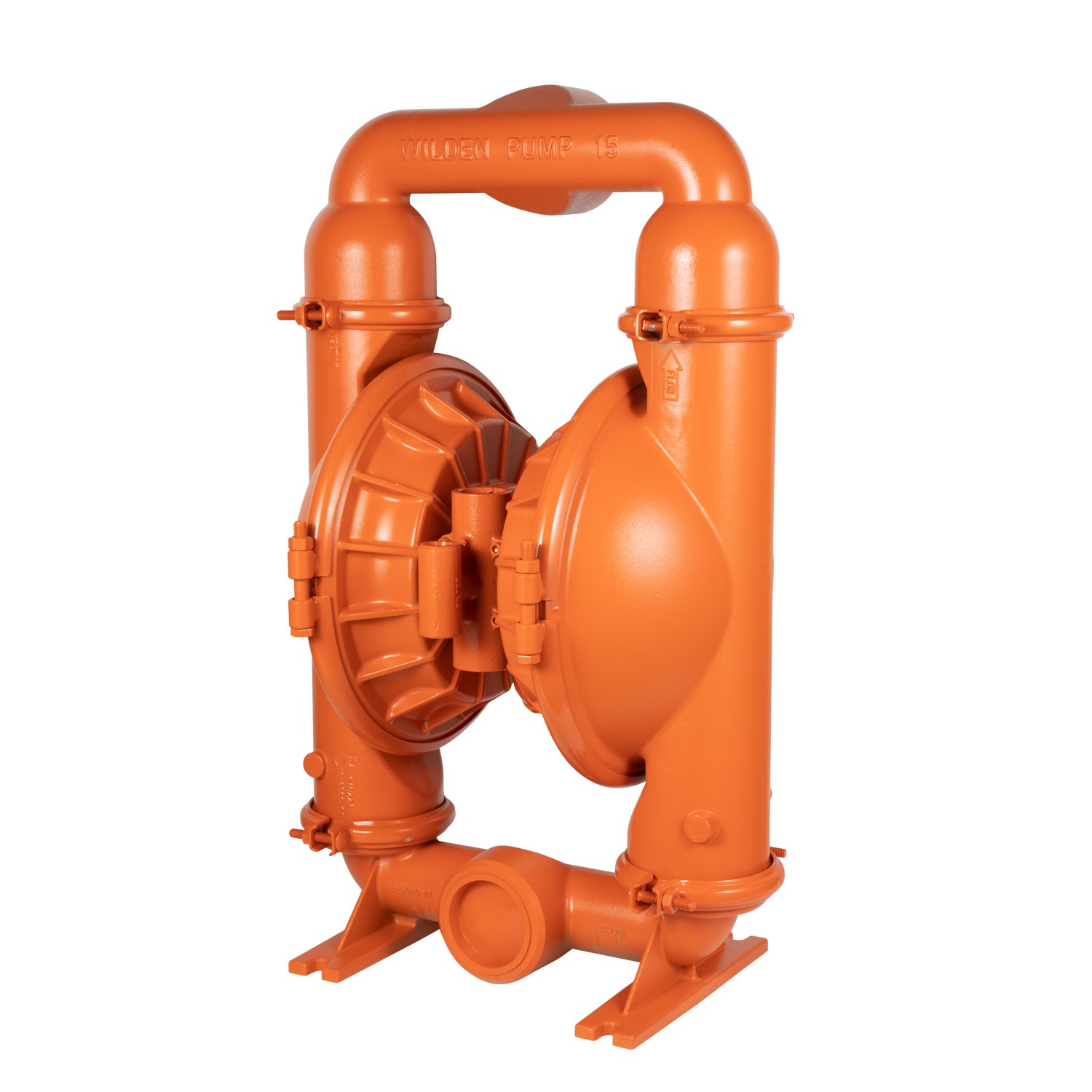

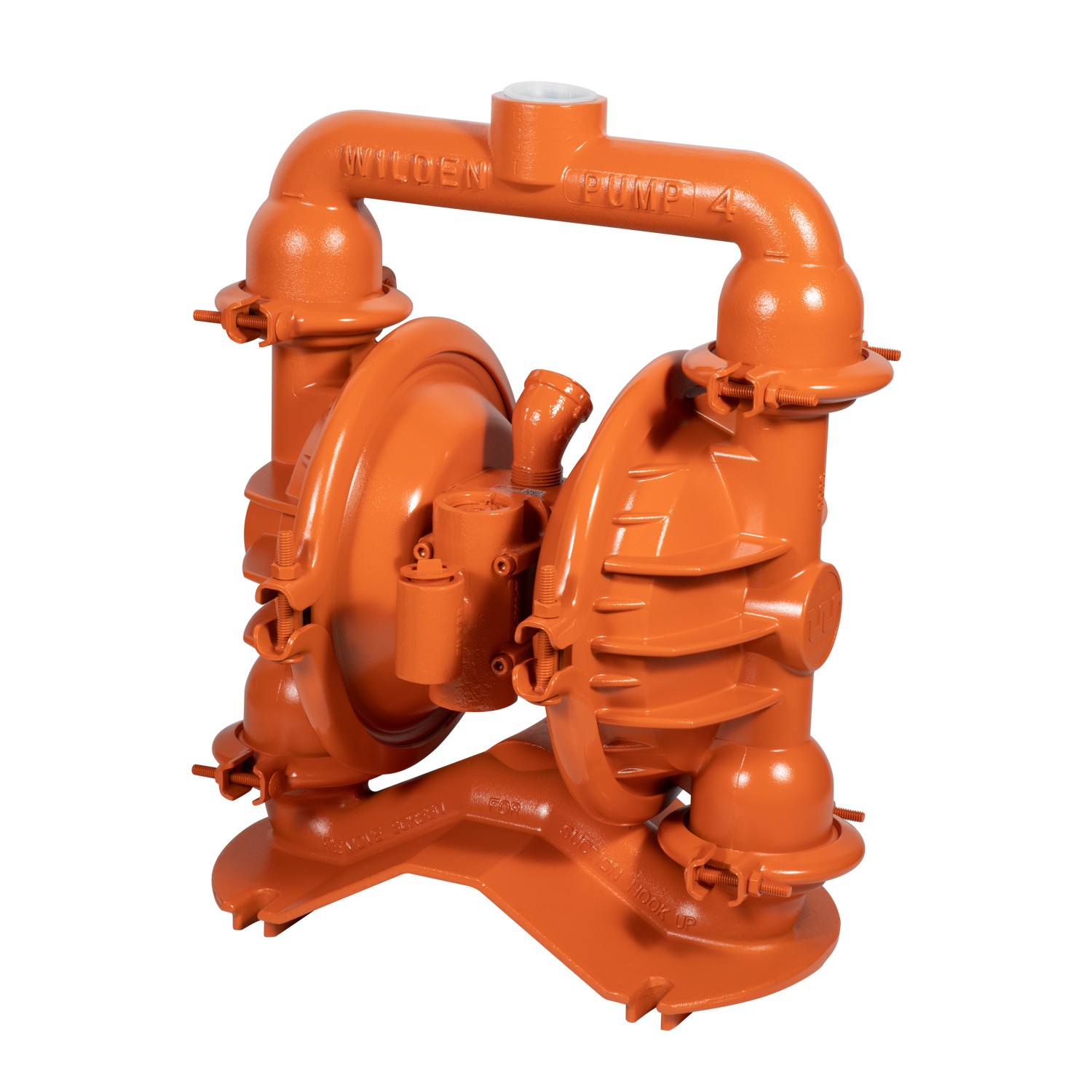

American WILDEN   clamp type T4 pneumatic diaphragm pump

WILDEN   T4 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 17 kg (38 lbs);

Ductile iron transport weight: 36 kg (57 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, medium carbon steel, polypropylene;

Intermediates: aluminum alloy, polypropylene;

Air valve: brass;

Performance parameters of WILDEN Wilton T4 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm);

Media outlet dimensions: 1-1/4” (32 mm);

Air inlet size: 1/2” (13 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 3/16” (4.8mm);

Maximum traffic:

Rubber/thermoplastic compound: 307 lpm (81 gpm);

Teflon PTFE: 235 lpm (62 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.5 m (18.0’), wet suction 8.5 m (28.0’);

Teflon PTFE: dry suction 2.7 m (9.0’), wet suction 8.5 m (28.0’);
