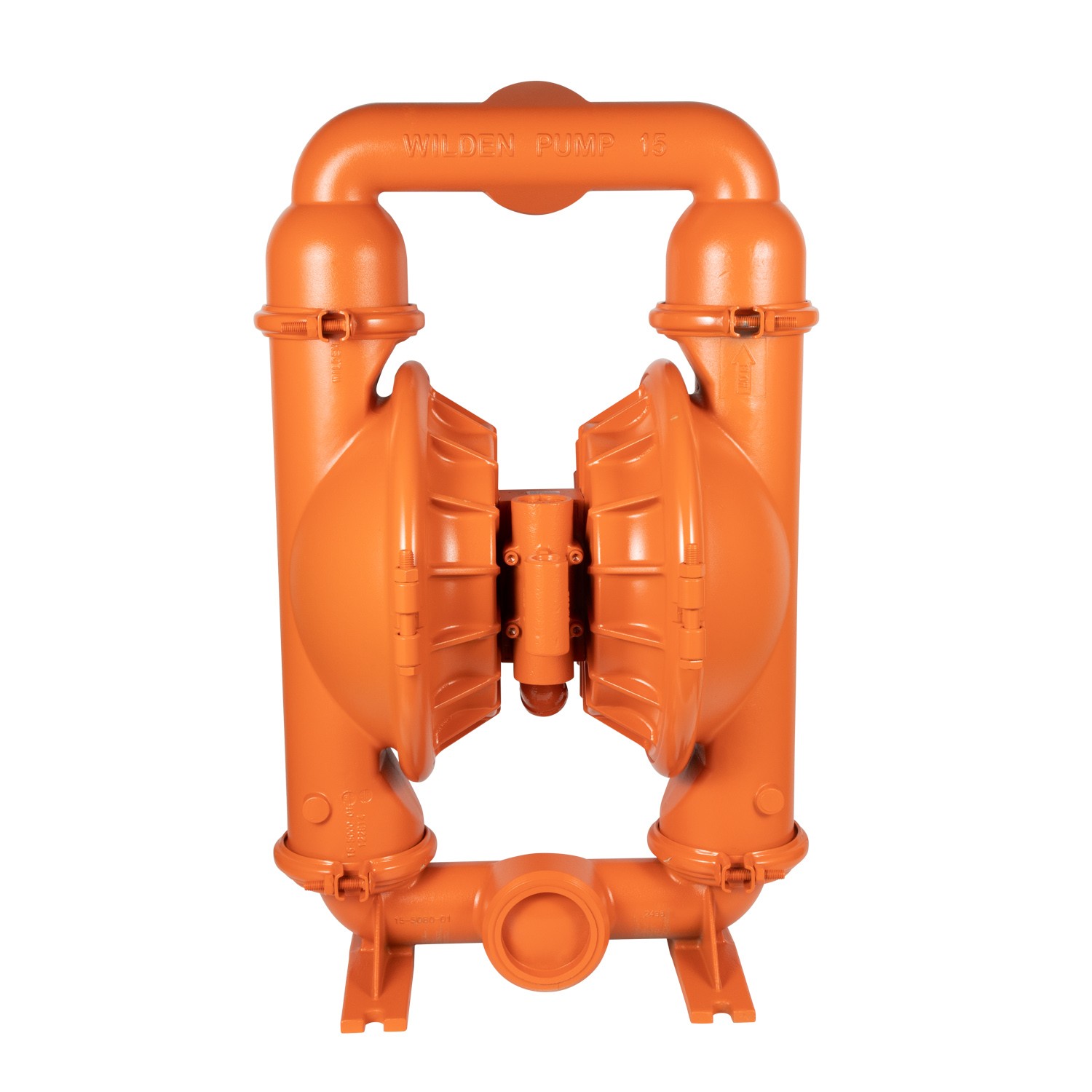

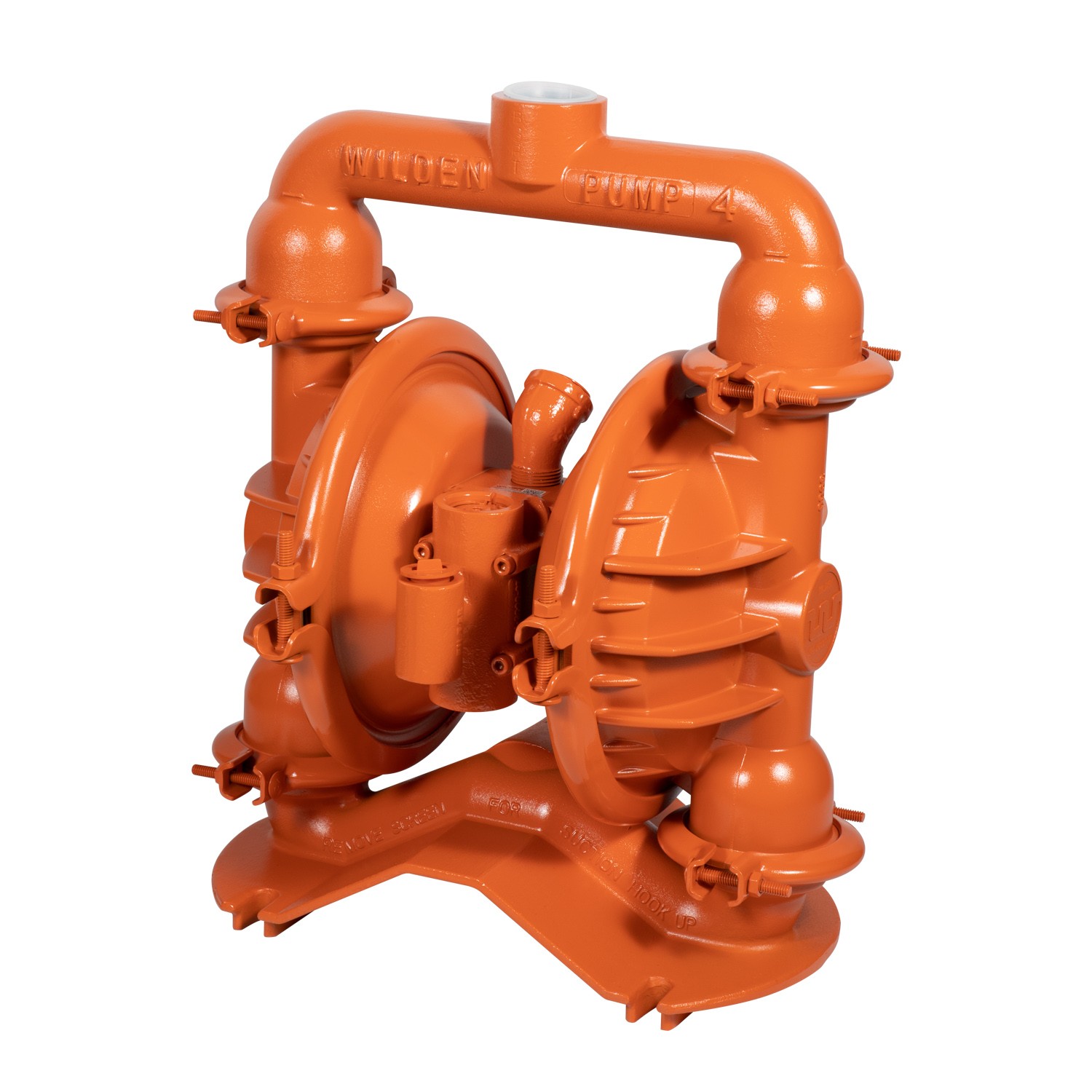

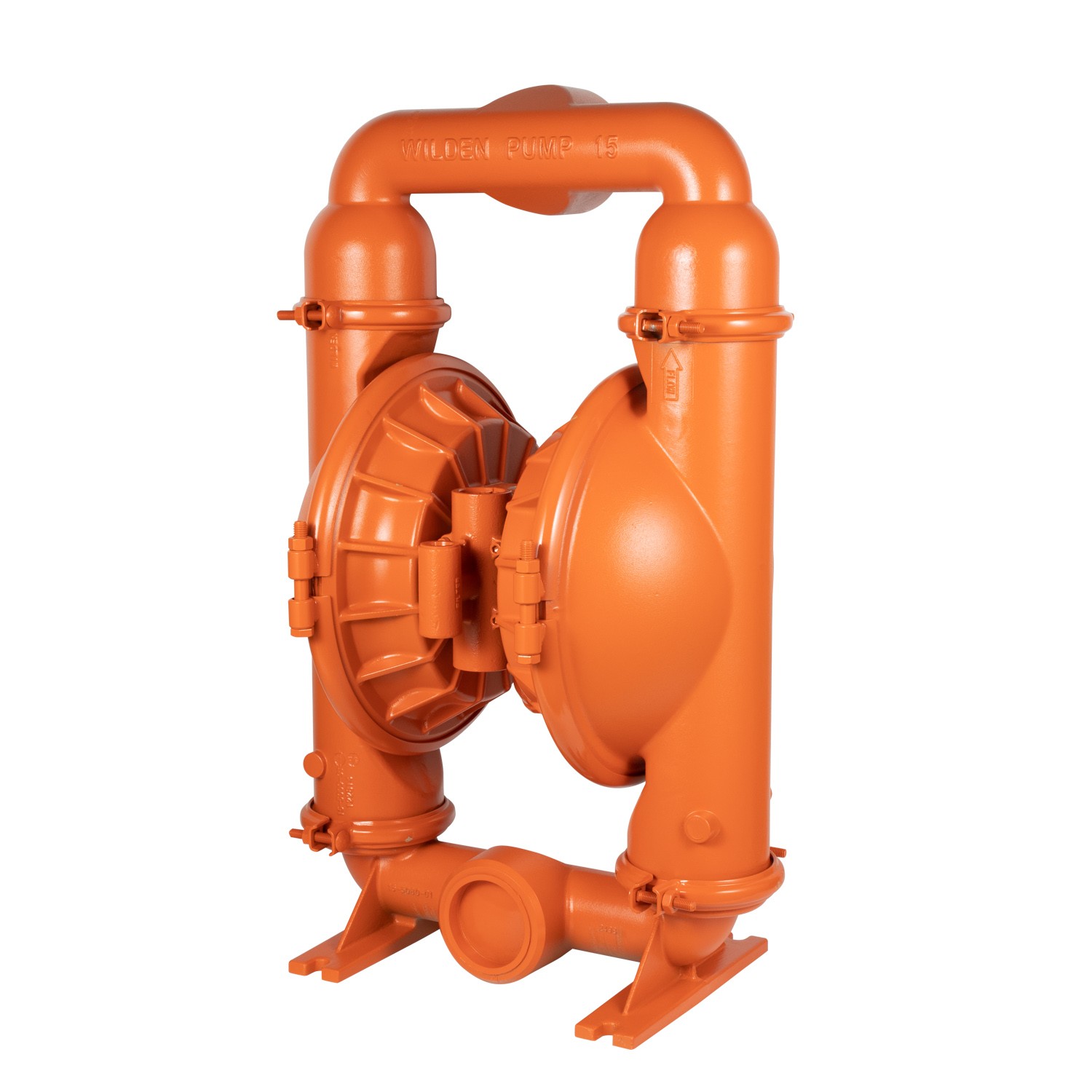

WILDEN   PX4 clamp type metal pneumatic diaphragm pump

WILDEN   PX4 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Transport weight of aluminum alloy: 21 kg (46 lbs);

316 stainless steel transport weight: 28 kg (62 lbs);

Ductile iron transport weight: 30 kg (66 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, acetal, aluminum-covered H alar;

Intermediate: aluminum alloy, stainless steel;

Air valve: aluminum alloy, stainless steel;

Performance parameters of WILDEN Wilton PX4 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm);

Media outlet dimensions: 1-1/4” (32 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 3/16” (4.8mm);

Maximum traffic:

Rubber/thermoplastic compound: 347 lpm (92 gpm);

Teflon PTFE: 327 lpm (87 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 6.9 m (22.7’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 4 m (13.1’), wet suction 9.2 m (30.1’);
