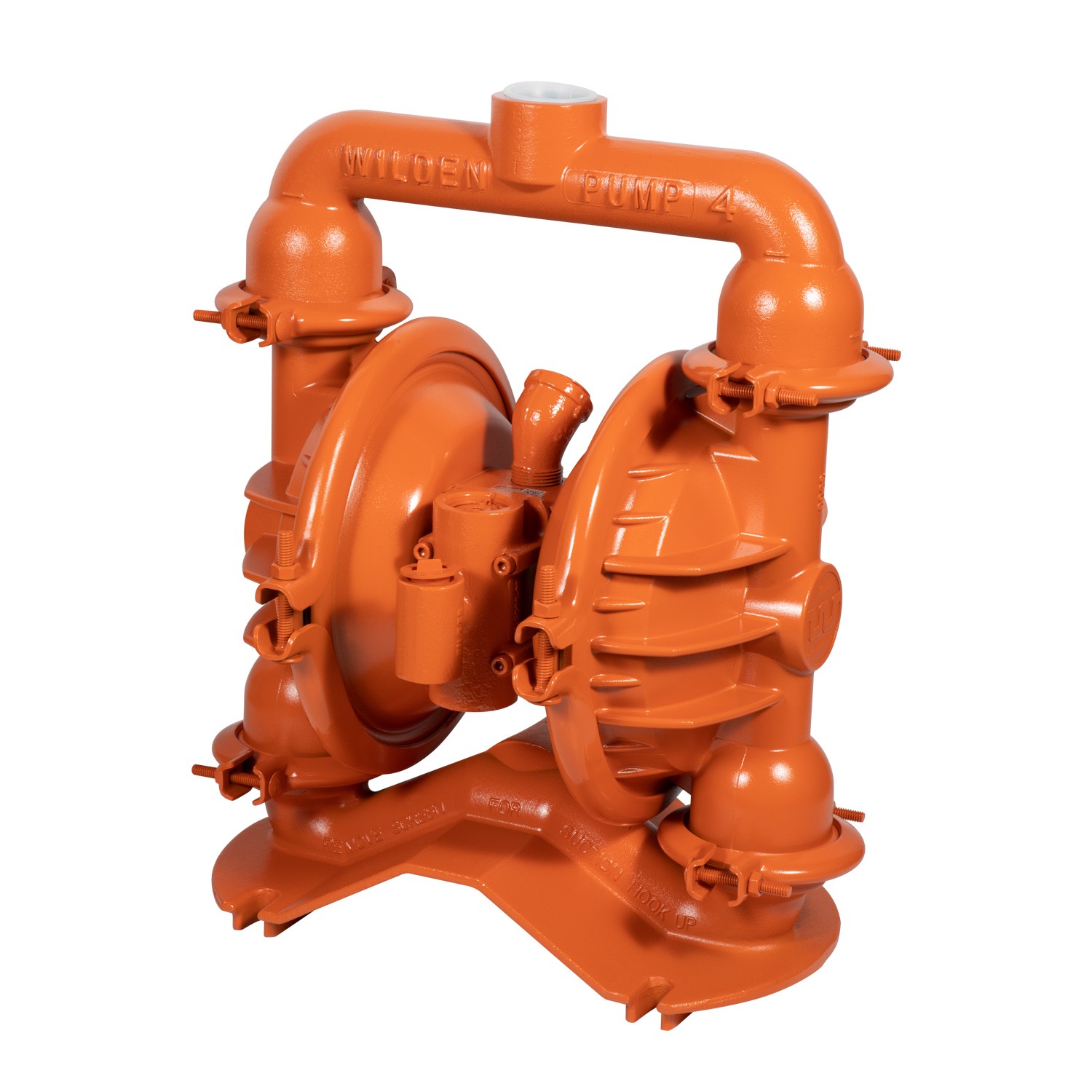

WILDEN   P4 clamp type metal pneumatic diaphragm pump

WILDEN   P4 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Transport weight of aluminum alloy: 13 kg (13 lbs);

316 stainless steel transport weight: 20 kg (20 lbs);

Ductile iron transport weight: 22 kg (49 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, acetal, stainless steel, aluminum-covered Halar;

Intermediates: polypropylene, acetal;

Air valve: polypropylene, acetal;

Performance parameters of WILDEN Wilton P4 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm);

Media outlet dimensions: 1-1/4” (32 mm);

Air inlet size: 1/2” (13 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 3/16” (4.8mm);

Maximum traffic:

Rubber/thermoplastic compound: 307 lpm (81 gpm);

Teflon PTFE: 295 lpm (78 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.8 m (19.0’), wet suction 8.8 m (29.0’);

Teflon PTFE: dry suction 3.7 m (12.0’), wet suction 8.5 m (28.0’);
