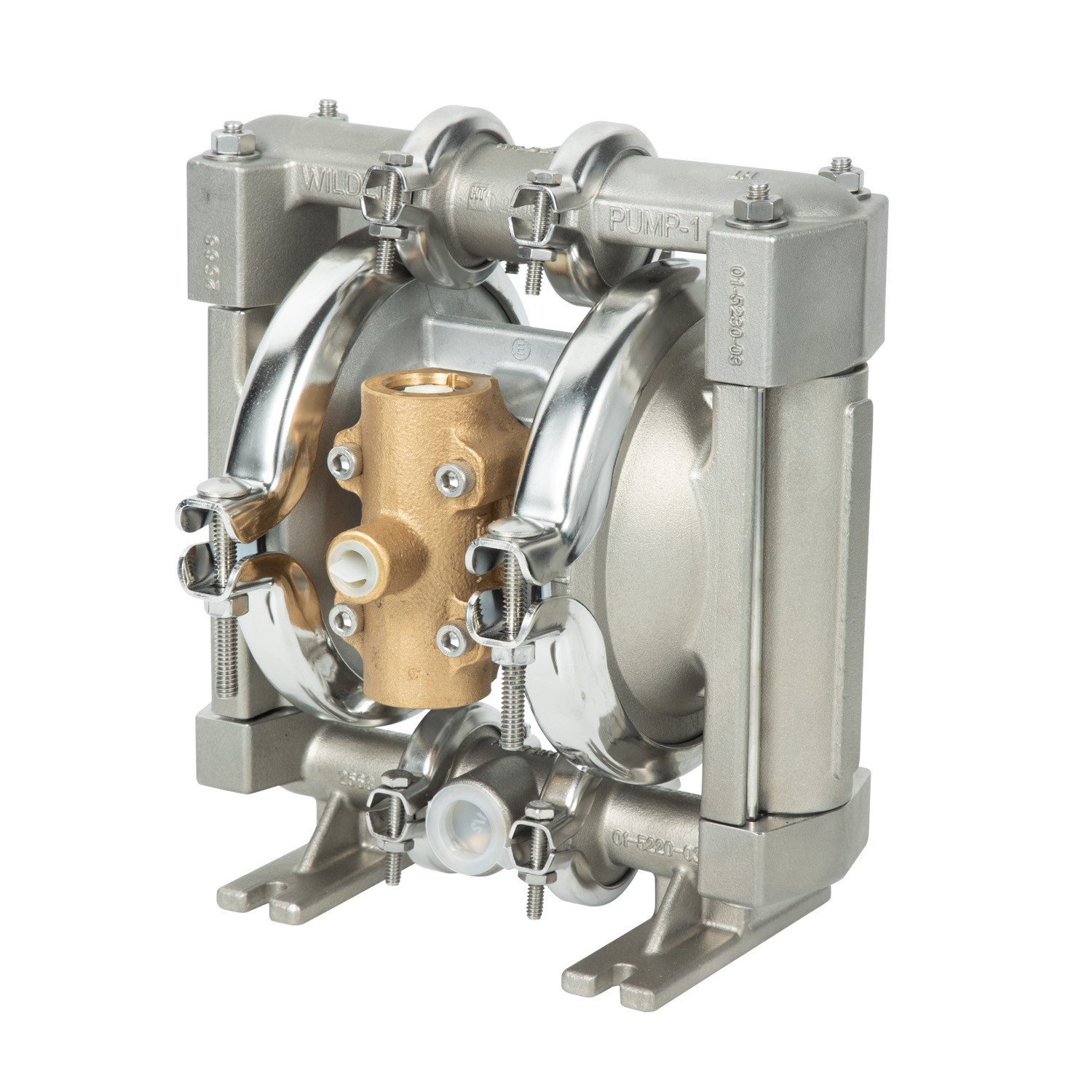

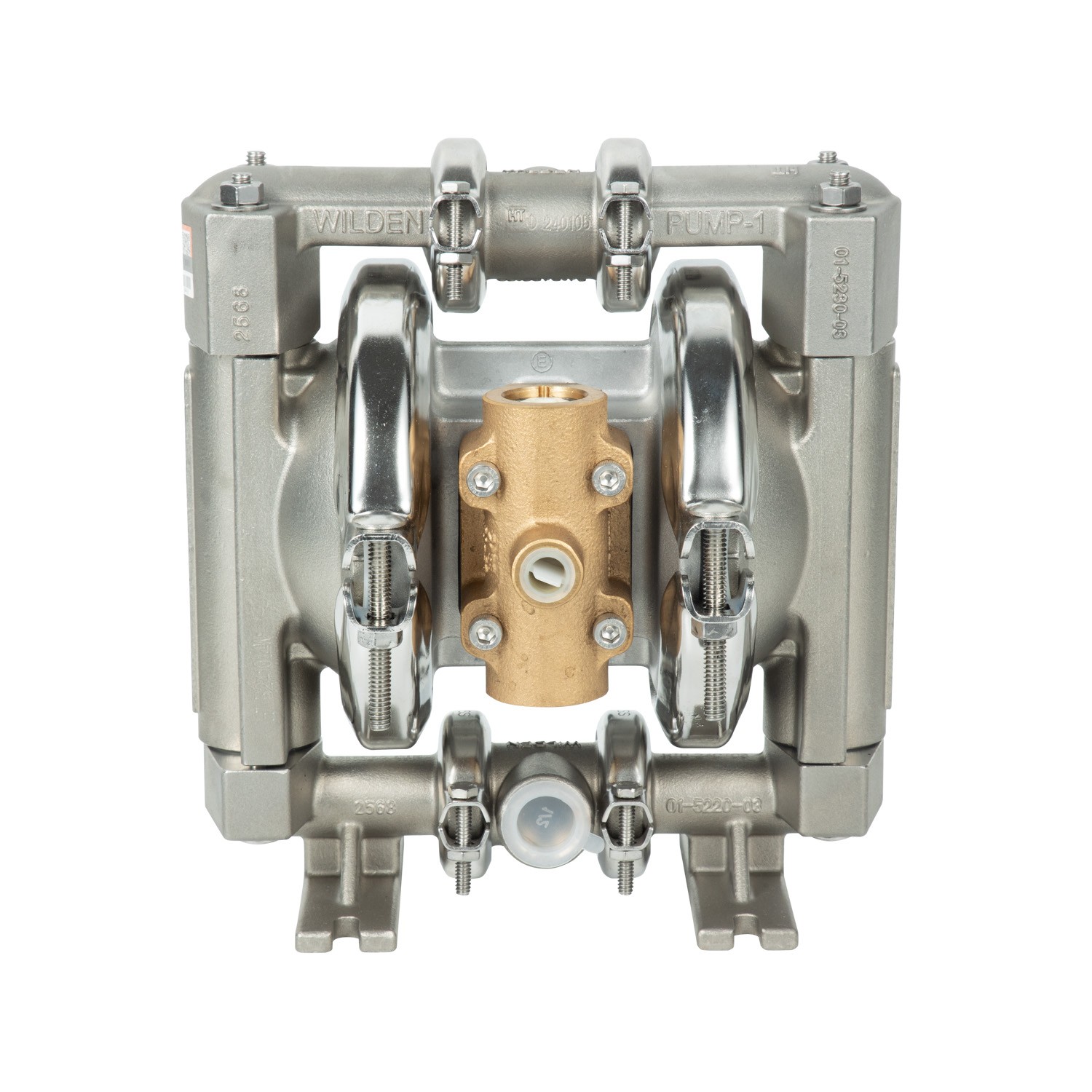

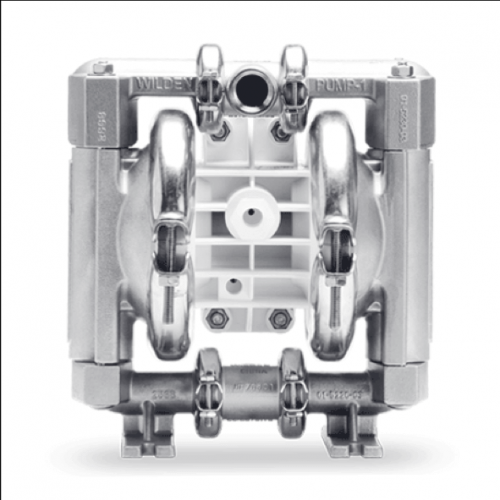

WILDEN   T1 clamp type metal pneumatic separator  membrane pump

WILDEN   T1 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 6 kg (13 lbs);

316 stainless steel transport weight: 9 kg (20 lbs);

Elastomer material:

Nitrile rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Middle: nylon;

Air valve: brass;

Performance parameters of WILDEN Wilton T1 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1/2” (13 mm);

Media outlet dimensions: 1/2” (13 mm);

Air inlet size: 1/4” (6 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/16” (1.6mm);

Maximum traffic:

Rubber/thermoplastic compound: 54.9 lpm (14.5 gpm);

Teflon PTFE: 53.0 lpm (14.0 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 1.5 m (5.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 2.7 m (10.0’), wet suction 9.1 m (30.0’);
