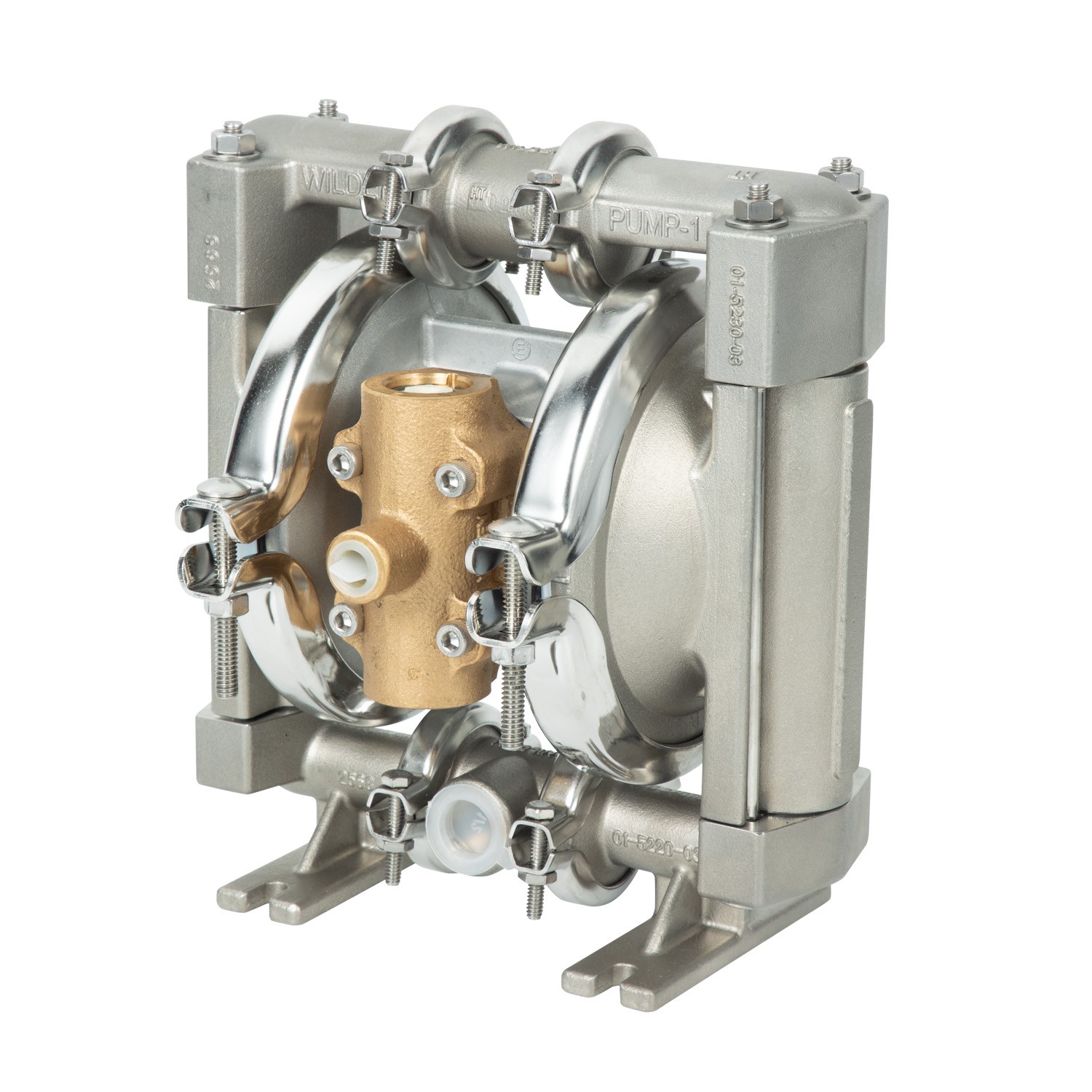

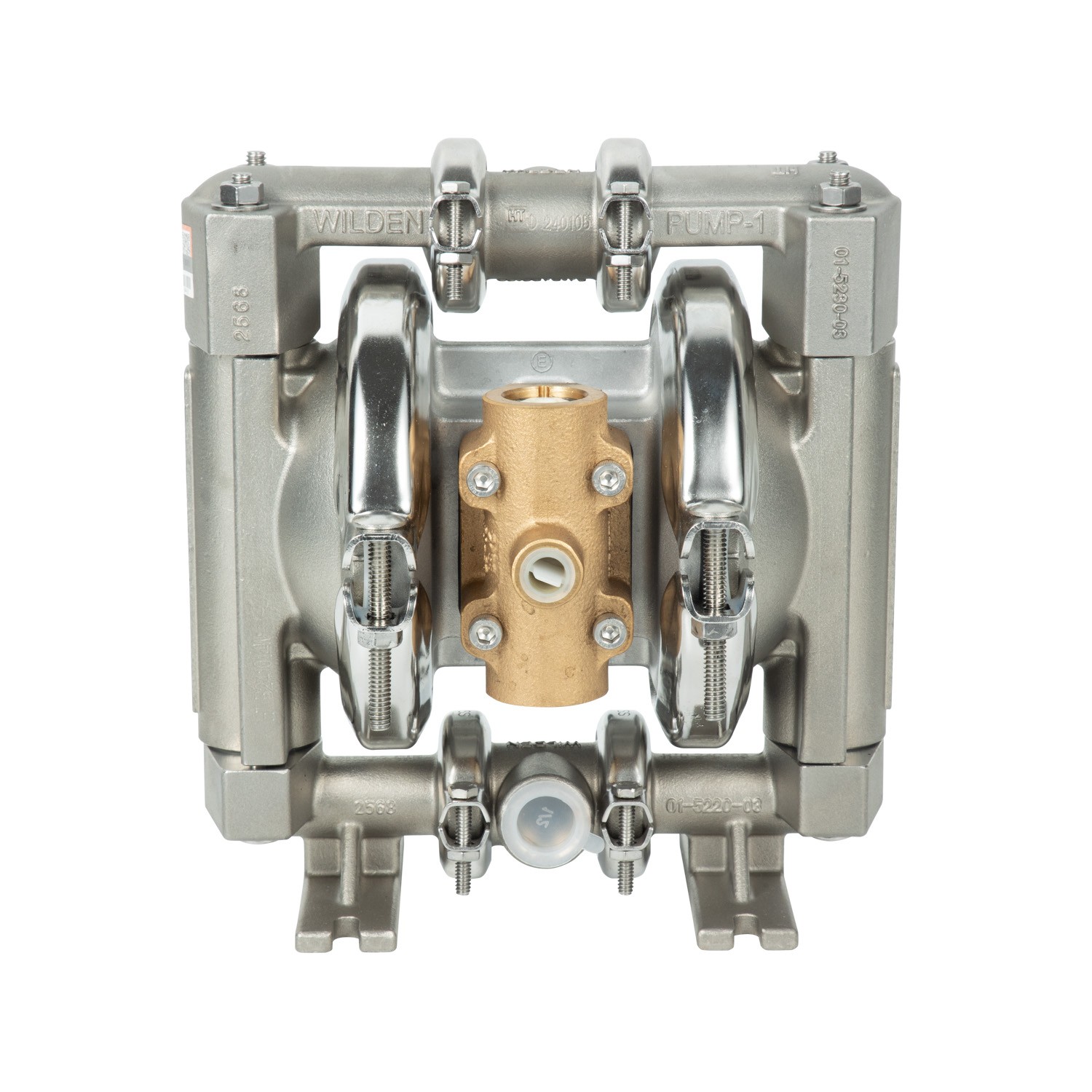

WILDEN   PX1 clamp type metal pneumatic separator  membrane pump

WILDEN Wilton PX1 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 6 kg (13 lbs);

316 stainless steel transport weight: 9 kg (20 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Middle part: aluminum alloy;

Air valve: aluminum alloy;

Performance parameters of WILDEN Wilton PX1 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1/2” (13 mm);

Media outlet dimensions: 1/2” (13 mm);

Air inlet size: 1/2” (13 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/16” (1.6mm);

Maximum traffic:

Rubber/thermoplastic compound: 62.8 lpm (16.6 gpm);

Teflon PTFE: 60.9 lpm (16.1 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.9 m (19.3’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 4.7 m (15.3’), wet suction 8.0 m (26.1’);
