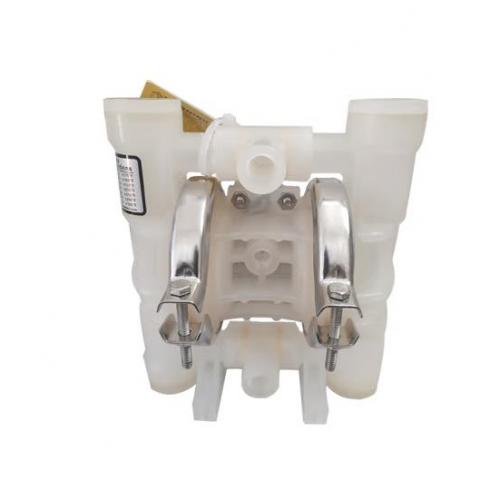

WILDEN P400 stainless steel bolted pneumatic diaphragm pump

WILDEN  P400 stainless steel bolted pneumatic diaphragm pump specifications:

Material of liquid contact:

316 stainless steel transportation weight: 35 kg (77 lbs)

Hastelloy Transport Weight: 38 kg (83 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel, aluminum-covered Halar;

Intermediate part: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton P400 stainless steel bolted pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm)

Media outlet size: 1-1/2” (38 mm)

Air inlet size: 1/2” (13 mm)

Maximum outlet pressure: 8.6 Bar (125 psig)

Maximum solid particle diameter can be passed: 3/16” (4.8 mm)

Maximum traffic:

Rubber/thermoplastic compound: 307 lpm (81 gpm)

Teflon PTFE: 295 lpm (78 gpm)

Maximum suction range: Rubber/thermoplastic compounds: dry suction 5.8 m (19.0’), wet suction 8.8 m (29.0’)

Teflon PTFE: Dry suction 3.7 m (12.0’), wet suction 8.5 m (28.0’)
