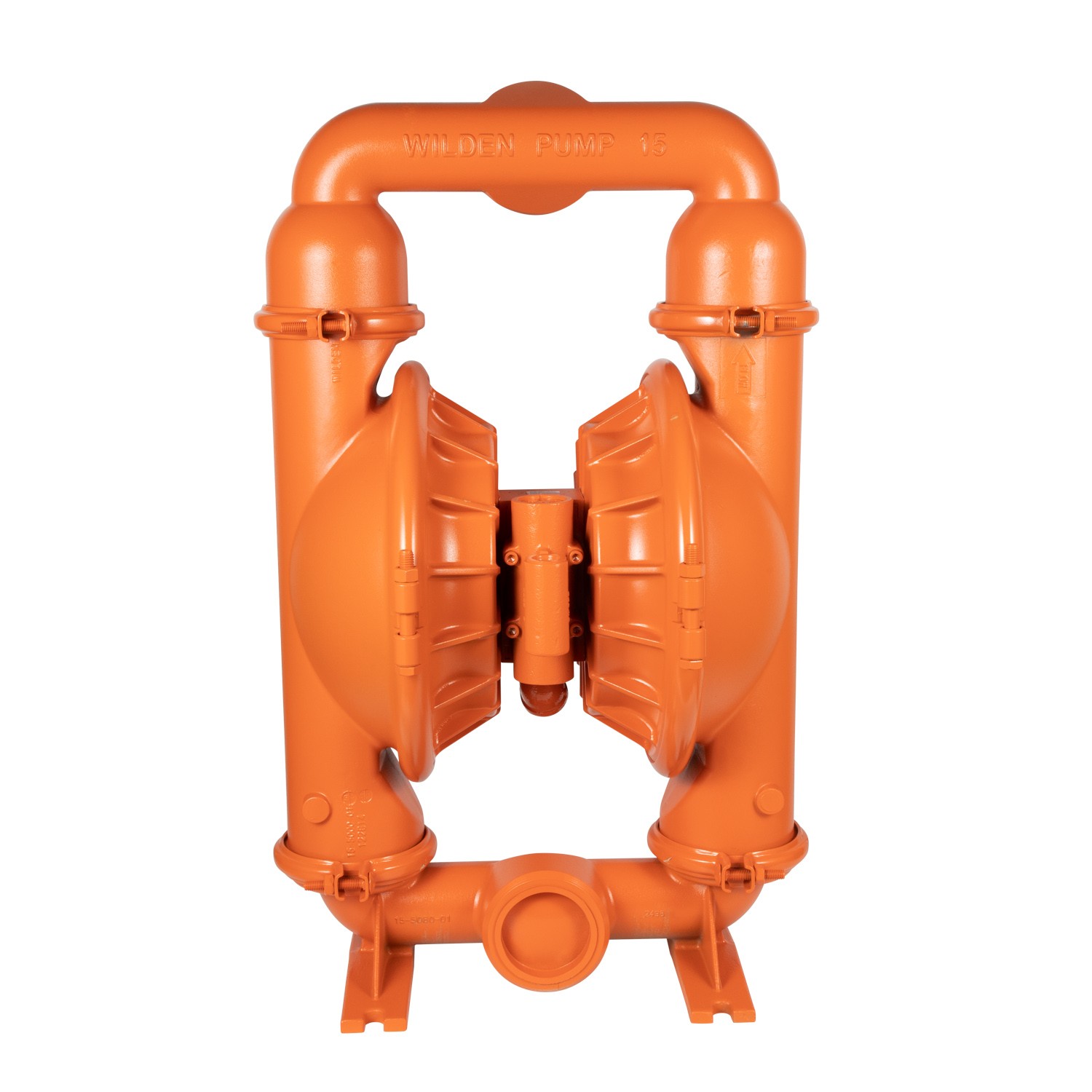

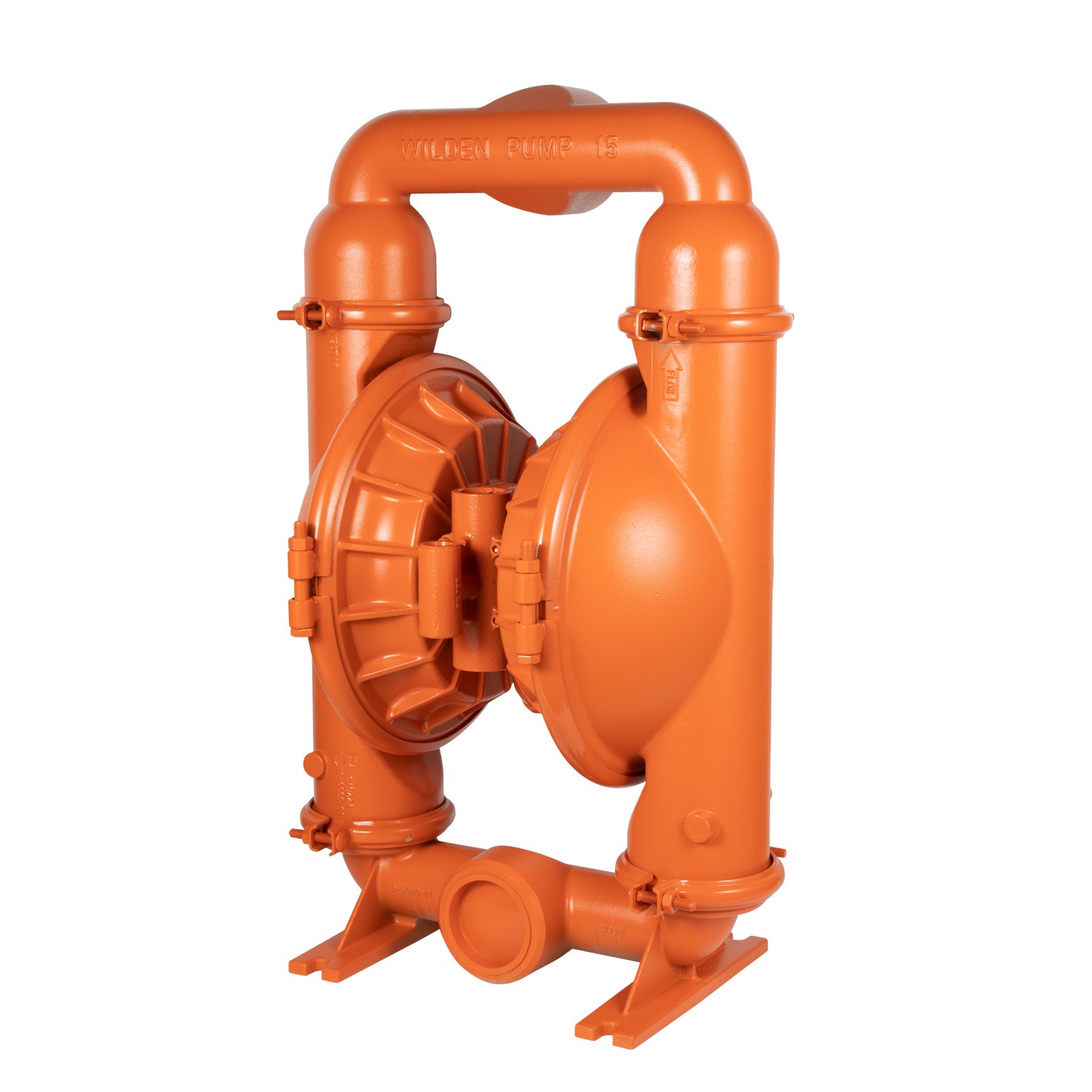

WILDEN PX15 clamp type metal pneumatic diaphragm pump

WILDEN  T8 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 32 kg (72 lbs);

Ductile iron transport weight: 52 kg (114 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy;

Intermediates: aluminum alloy, polypropylene;

Air valve: aluminum alloy, brass;

Performance parameters of WILDEN Wilton T8 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm);

Media outlet dimensions: 2” (51 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 617 lpm (163 gpm);

Teflon PTFE: 534 lpm (141 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 6.4 m (21.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 3.7 m (12.0’), wet suction 9.5 m (31.0’);
