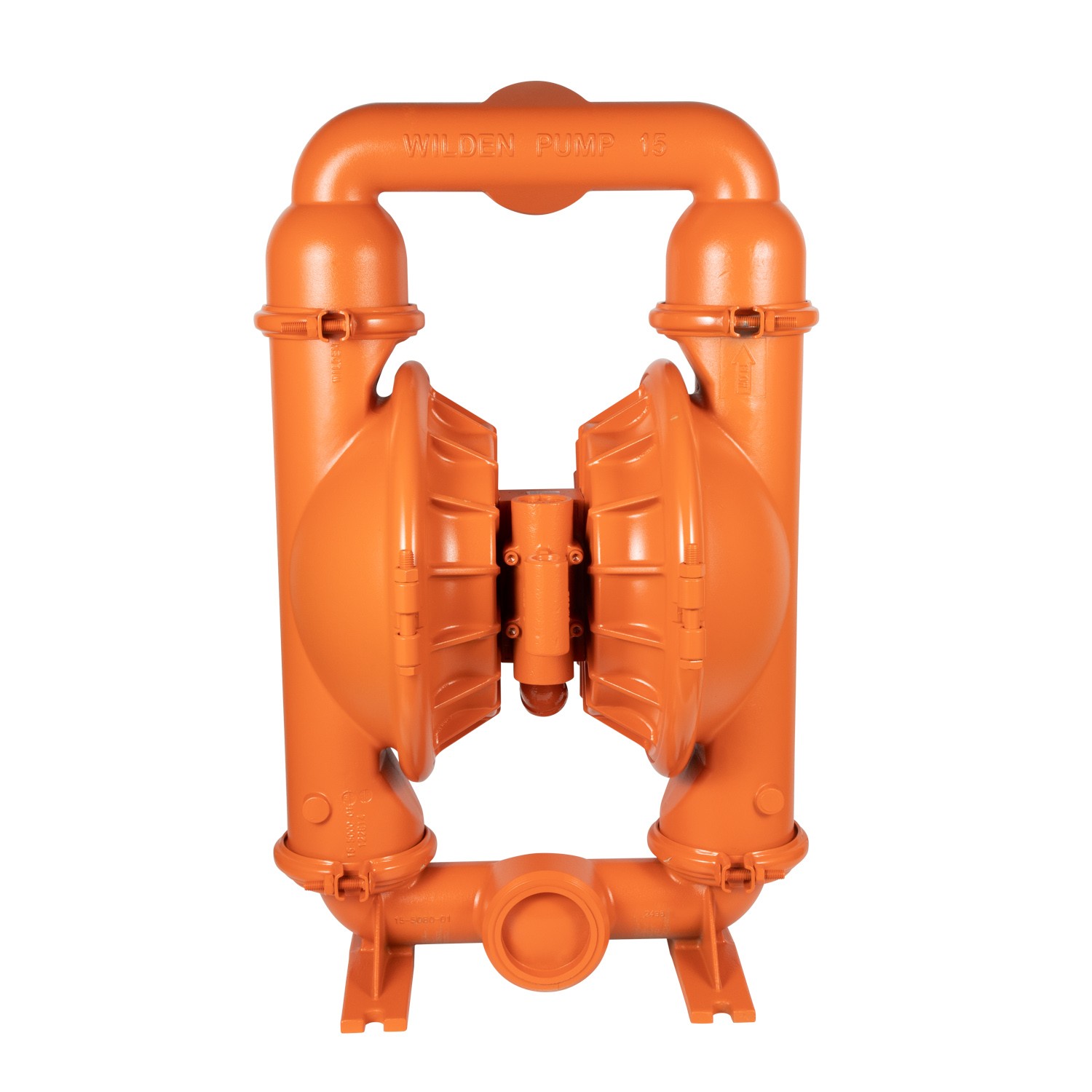

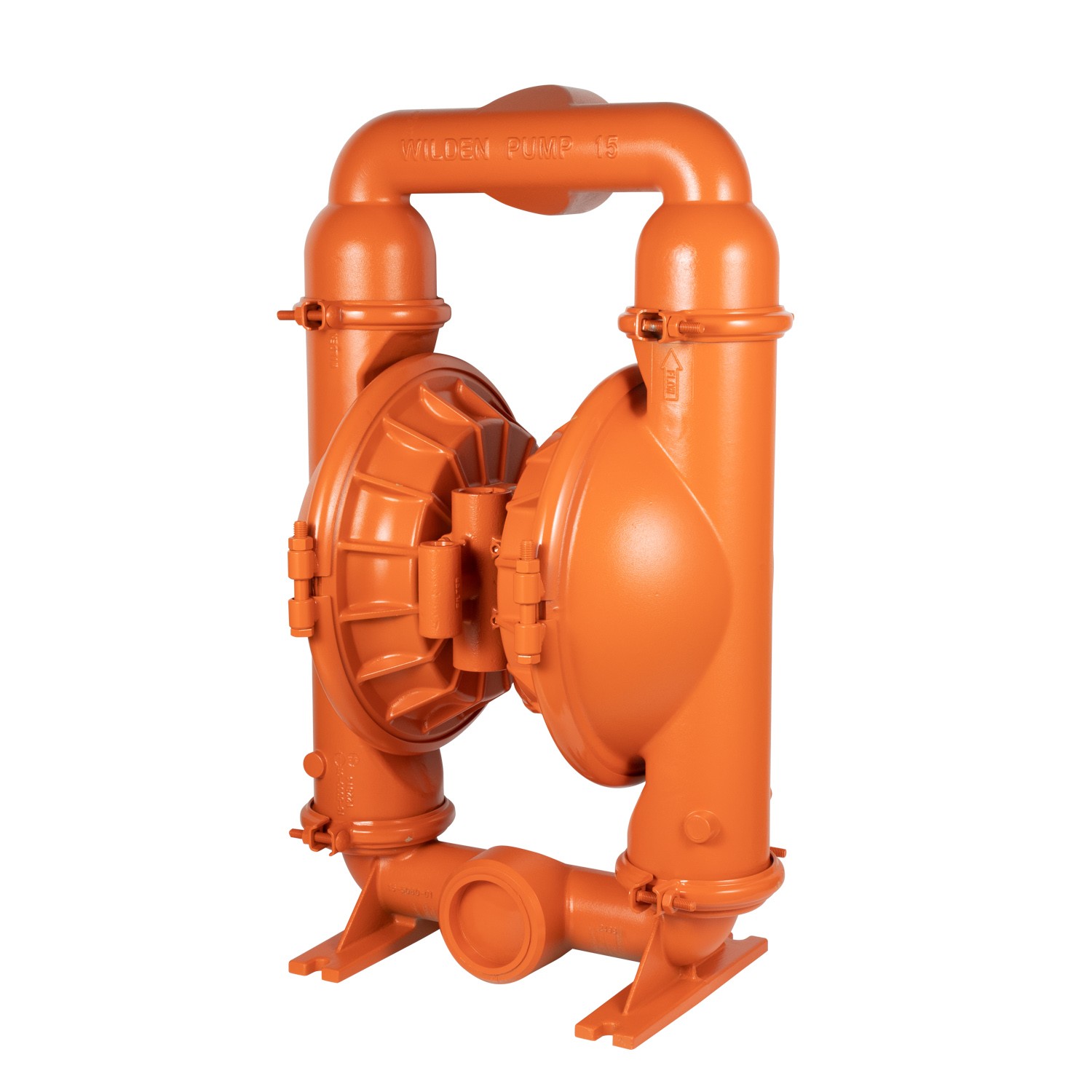

WILDEN PX15 clamp type metal pneumatic diaphragm pump

WILDEN   PX15 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Transport weight of aluminum alloy: 60 kg (132 lbs);

316 Stainless steel transport weight: 90 kg (198 lbs);

Ductile iron transport weight: 98 kg (216 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel;

Intermediate: aluminum alloy, stainless steel;

Air valve: aluminum alloy, stainless steel;

Performance parameters of WILDEN Wilton PX15 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 3” (76 mm);

Media outlet dimensions: 3” (76 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 3/8” (9.5 mm);

Maximum traffic:

Rubber/thermoplastic compound: 918 lpm (243 gpm);

Teflon PTFE: 727 lpm (192 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 6.7 m (22.1’), wet suction 9.5 m (31.2’);

Teflon PTFE: dry suction 4.8 m (15.9’), wet suction 9.5 m (31.2’);
