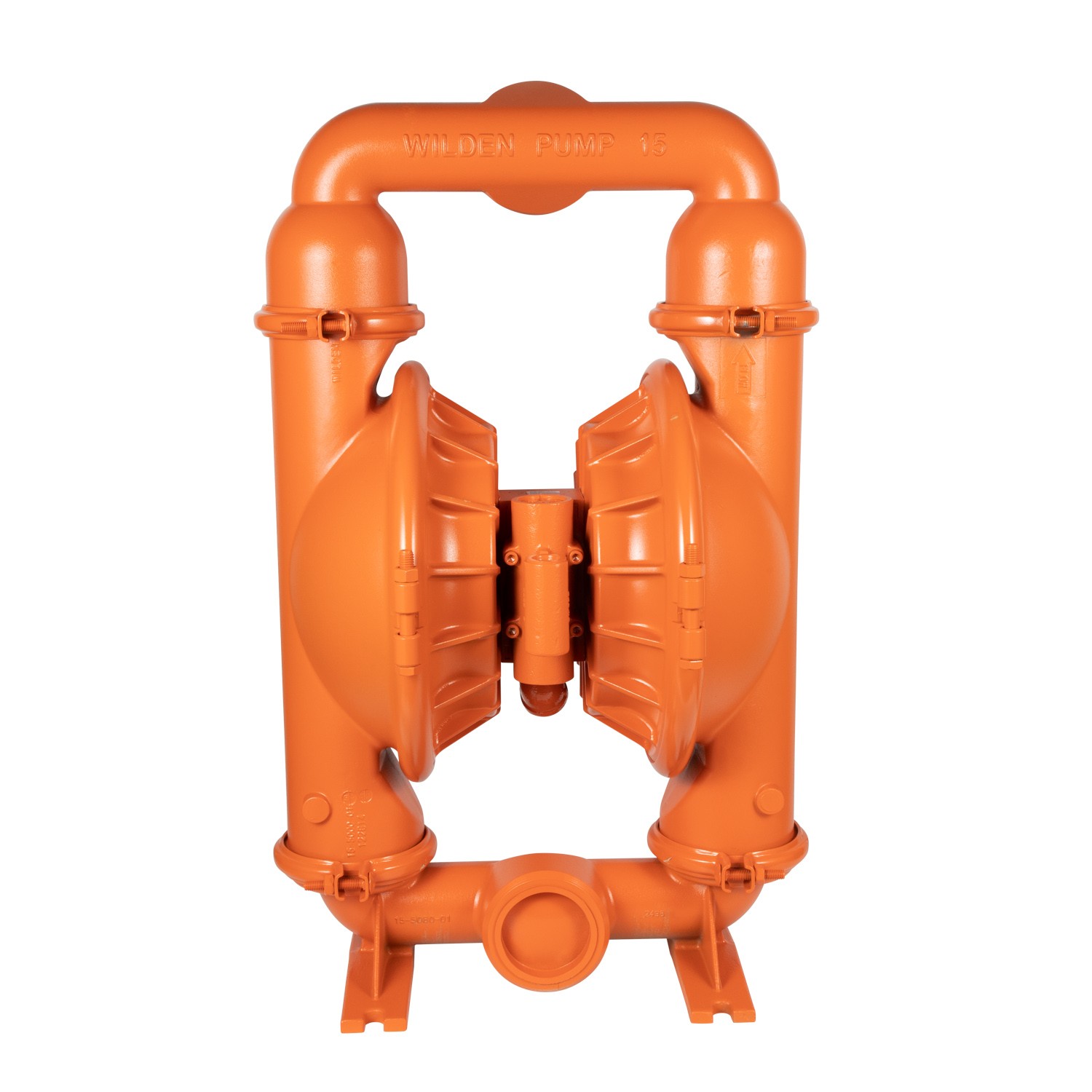

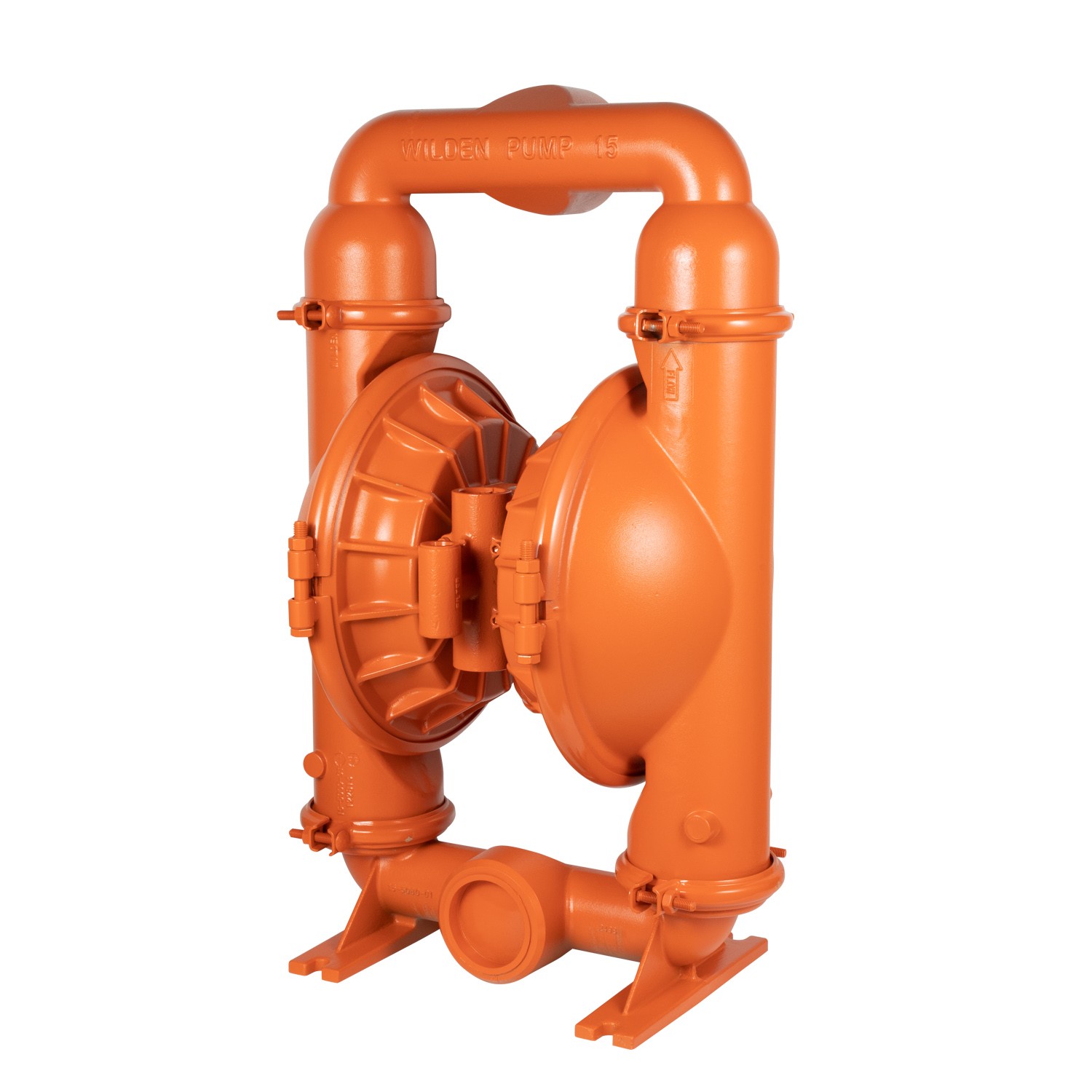

WILDEN   T15 clamp type metal pneumatic diaphragm pump

WILDEN   T15 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Transport weight of aluminum alloy: 53 kg (116 lbs);

Ductile iron transport weight: 91 kg (200 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy;

Intermediate part: aluminum alloy, polypropylene;

Air valve: brass;

Performance parameters of WILDEN Wilton T15 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 3” (76 mm);

Media outlet dimensions: 3” (76 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 3/8” (9.5 mm);

Maximum traffic:

Rubber/thermoplastic compound: 878 lpm (232 gpm);

Teflon PTFE: 704 lpm (186 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.5 m (18.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 3.5 m (13.0’), wet suction 8.5 m (28.0’);
