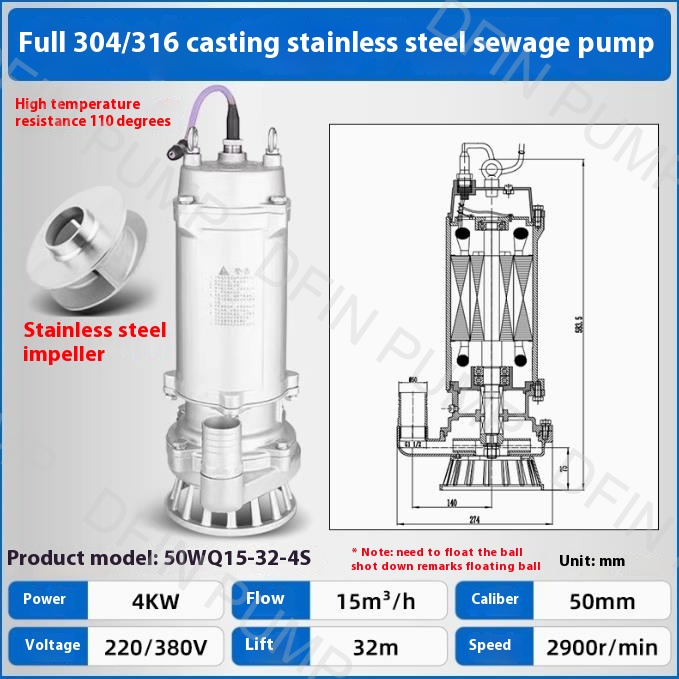

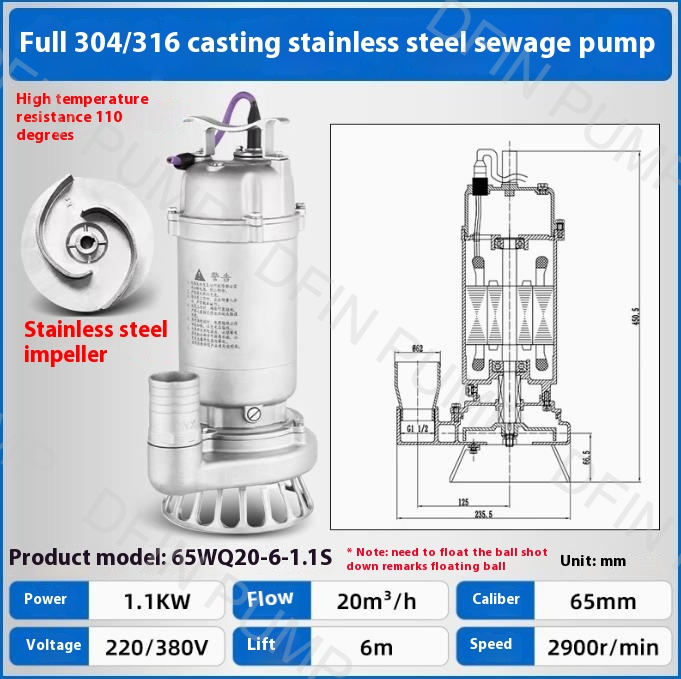

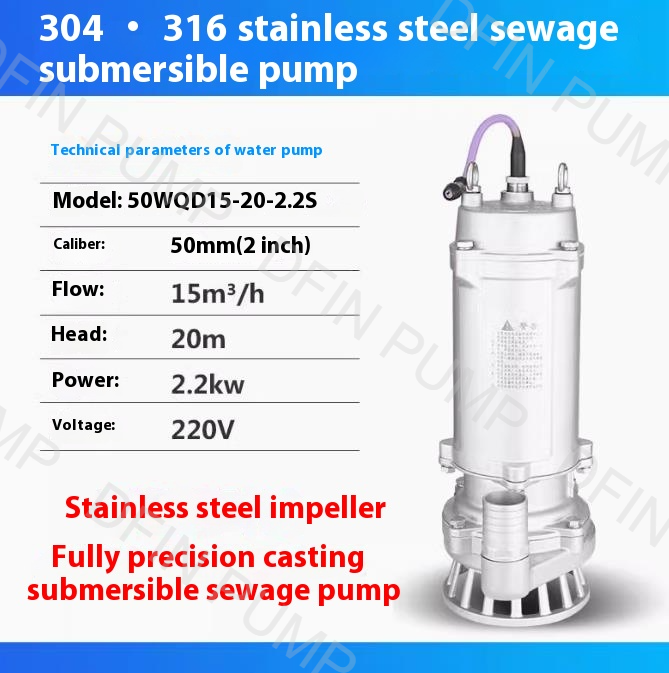

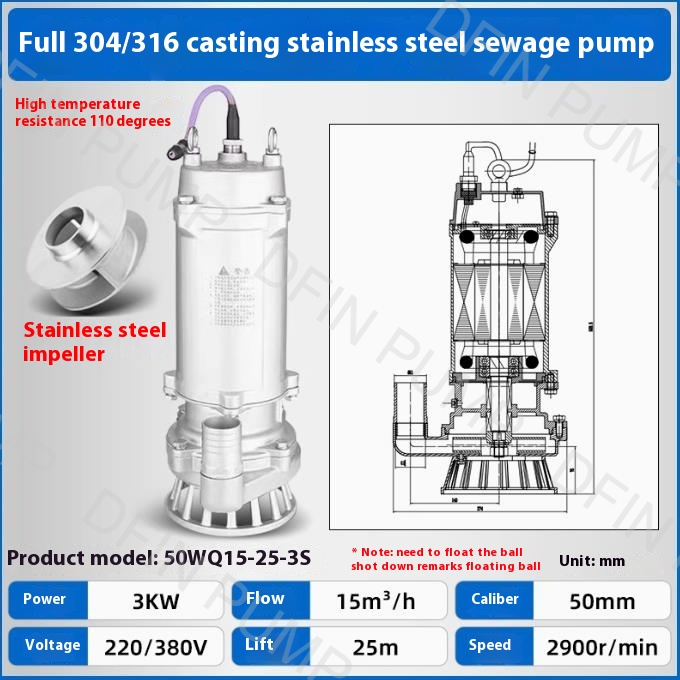

WQ(D)-SAll stainless steel sewage and sewage submersible electric pump (wire port)  Product Overview

WQ(D)-S series all stainless steel precision cast sewage and sewage submersible pump adopts a unique single and double-channel impeller structure,

which greatly improves the ability of dirt to pass.

WQ(D)-SAll stainless steel sewage and sewage submersible electric pump Features

1. The oil chamber adopts fluoroelastic double-end mechanical sealing, and the outer chamber adopts a single-end mechanical sealing structure to

effectively reduce the problem of water inlet due to friction between the silt and the shaft and causing the shaft to wear.

2. The motor uses vacuum immersion paint to achieve F-level insulation and is equipped with a thermal protection device to effectively extend the service life of the pump.

3. Use precision cast pump shells, which are lightweight, corrosion-resistant, energy-saving, beautiful appearance, hygienic, and environmentally friendly.

4. Install overheating (＜2.2kW) and current protector (2.2~4kW) in the electric pump to prevent overload and heat from heating.

5. Corrosion-resistant cables, tetrafluoro seals, and high-temperature resistant motors can be customized according to customer's special requirements

(solving the use environment where the liquid temperature is ≤100℃).

WQ(D)-SAll stainless steel sewage and sewage submersible electric pump  Main uses

Suitable for solid particles, long fiber wastewater and sewage contained in construction buildings, hospitals, residential communities, municipal engineering,

road traffic and construction, chemical electroplating, factory sewage discharge, breeding, pharmaceuticals, beverages, seawater and brine, and general corrosive media.
