IMC F46 fluorine lined magnetic pump

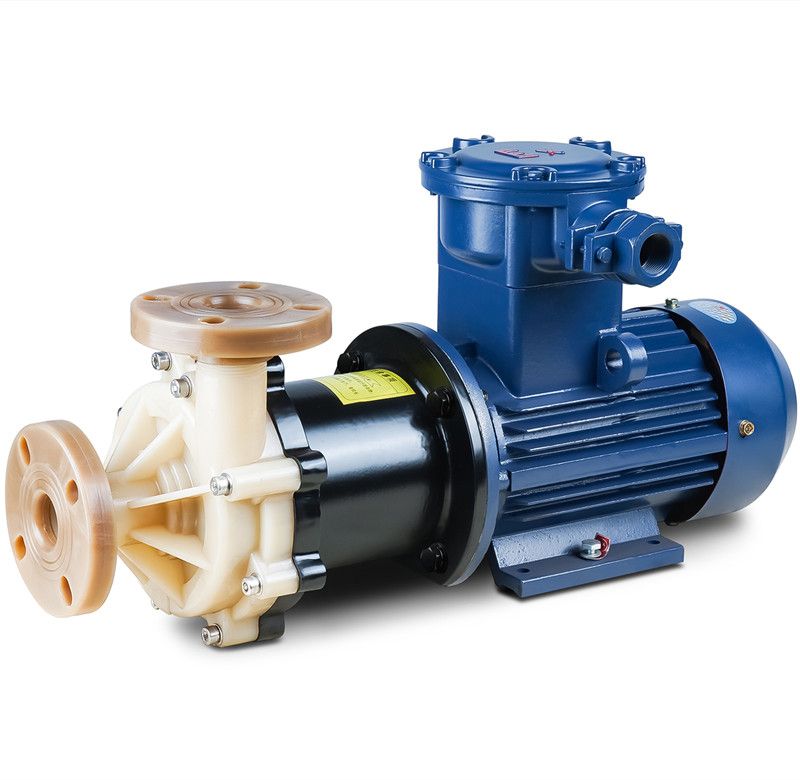

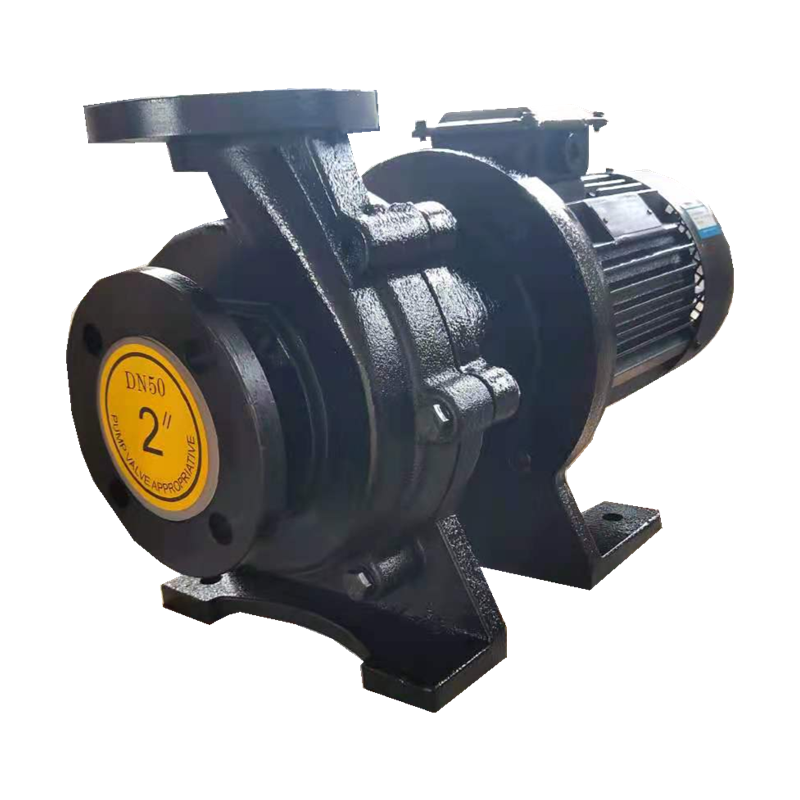

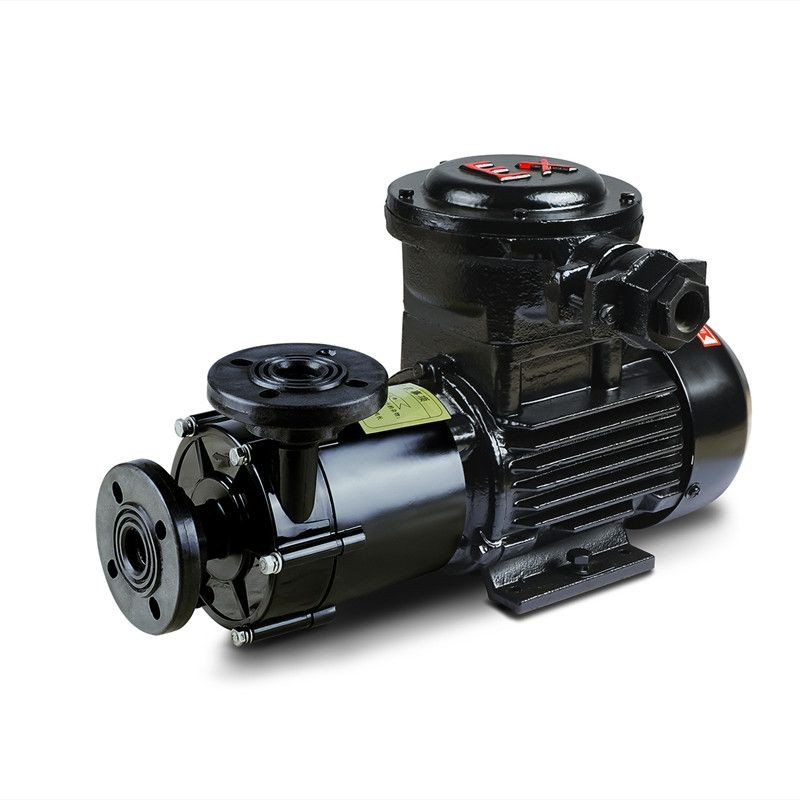

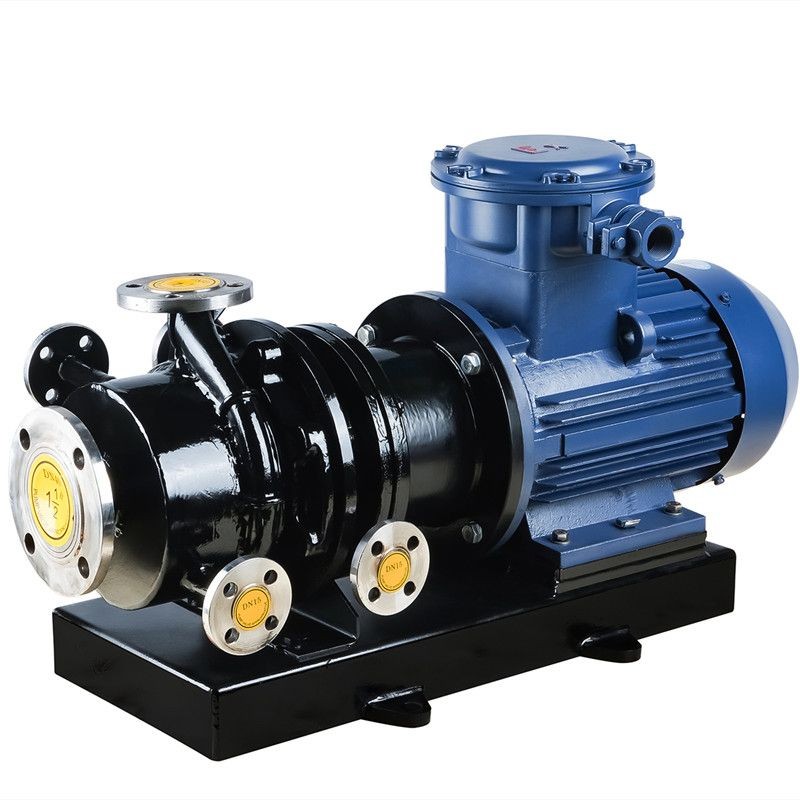

IMC F46 fluorine lined magnetic pump The unique design of the IMC fluorine-lined magnetic pump does not require mechanical shaft seals and does not leak. The liquid flow parts are made of F46 or PFA materials, silicon carbide, fluorine rubber and other materials. The pump body shell is fixed with ductile iron, so the pump body is sufficient to support the pipeline. The weight makes it easier to use and maintain.

Product Details

Product Tags

IMC F46 fluorine lined magnetic pump The unique design of the IMC fluorine-lined magnetic pump does not require mechanical shaft seals and does not leak. The liquid flow parts are made of F46 or PFA materials, silicon carbide, fluorine rubber and other materials. The pump body shell is fixed with ductile iron, so the pump body is sufficient to support the pipeline. The weight makes it easier to use and maintain.

The unique design of the IMC fluorine-lined magnetic pump does not require mechanical shaft seals and does not leak. The liquid flow parts are made of F46 or PFA materials, silicon carbide, fluorine rubber and other materials. The pump body shell is fixed with ductile iron, so the pump body is sufficient to support the pipeline. The weight makes it easier to use and maintain.

The basic parameters and technical performance of IMC fluorine-lined magnetic pump comply with HG/T2730-2012. Technical conditions for sealless rotary power pumps (|| category) standards.



 IMC F46 fluorine lined magnetic pump  Features

1. The lining of the pump body, the inner rotor of the impeller, and the isolation sleeve are all made of pure F46 or PFA materials and are molded in one go. There is no impurity precipitation and it is very suitable for transporting high-purity, highly corrosive chemical liquids;

2. The pump body shell is made of ductile iron, and the pump body is designed according to standard flange, which has good mechanical strength and can withstand heavy pipeline loads;

3. The flow-passing parts are lined with F46 or PFA material, which is smooth and smooth, with excellent hydraulic performance, small hydraulic friction loss and high efficiency;

4. The pump shaft, bearing sleeves, and dynamic and static rings are all made of pressureless sintered silicon carbide, which has the characteristics of high hardness, high wear resistance, and high corrosion resistance;

5. The unique spiral groove design in the bearing sleeve makes it easy to lubricate the sliding bearing pair and quickly takes away the heat generated by friction when the pump is running;

6. The isolation sleeve is equipped with a reinforced cover specially made of imported material PPS, so that the pump set can withstand higher system pressure and can eliminate the heat generated by the magnetic eddy current of the metal sleeve;

7. The inner and outer magnets are made of neodymium iron boron material. The surface of the magnetic steel is as high as 3600 Gauss, which can smoothly transmit the torque of the prime mover to the impeller without slipping under large flow conditions. It can also prevent the inner rotor of the impeller from interfering with the back thrust. ring contact to prevent the fluorine plastic parts from melting due to frictional heat, ensuring that the magnetic pump can operate normally in highly corrosive situations;

8. The entire pump unit adopts a pull-back structure, so one person can perform internal maintenance and parts replacement without disassembling the pipeline.



IMC F46 fluorine lined magnetic pump Technical parameters

Flow rate: 1.8-400m3/h;

Lift: 8-80m;

Speed: 2900/1450 r/min;

Power: 0.12-90kw;

Caliber: 12-200mm;

Applicable temperature: -20-100℃.

IMC F46 fluorine lined magnetic pump  Performance parameters

modelflowLiftImport X ExportSpeedpowerVoltage
m3/hmmmr/minkwv
IMC25-20-100F2.510.525X2029000.37220
IMC25-20-100F10.525X2029000.37380
IMC32-25-125F3.22032X2529000.75380
IMC32-25-160F3232X2529002.2380
IMC32-25-200F5032X2529004380
IMC40-25-125F6.32040X2529001.1380
IMC40-25-160F3240X2529003380
IMC40-25-200F5040X2529005.5380
IMC50-32-125F12.52050X3229002.2380
IMC50-32-160F3250X3229003380
IMC50-32-200F5050X3229007.5380
IMC65-50-125F252065X5029004380
IMC65-50-160F3265X5029005.5380
IMC65-40-200F5065X40290011380
IMC65-40-250F8065X40290018.5380
IMC80-65-125F502080X6529007.5380
IMC80-65-160F3280X65290011380
IMC80-50-200F5080X50290015380
IMC100-80-125F10020100X80290015380
IMC100-80-160F32100X80290018.5380
IMC100-65-200F50100X65290030380
IMC100-65-250F80100X65290045380
IMC125-100-160F16032125X100290030380
IMC125-100-200F50125X100290055380
