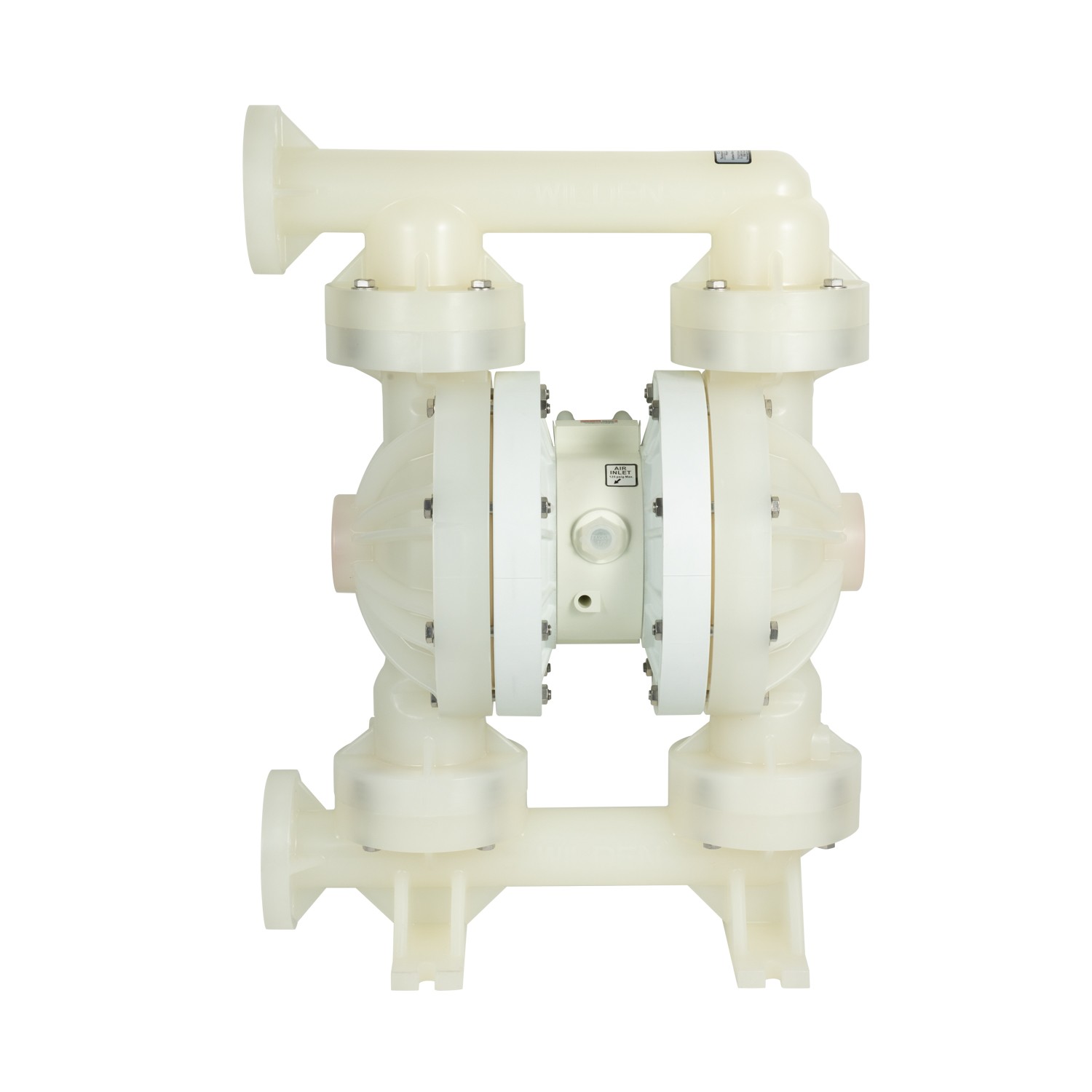

WILDEN High Pressure Diaphragm Pump

WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump

Technology: Pneumatic Diaphragm

characteristic:

1. The bolt design is highly leak-proof;

2. Sliding sealing capability

3. Single-head or double-head positive displacement technology

4. No lubricating oil is required for operation

WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump technical data:

Optional materials are: aluminum alloy, ductile iron, stainless steel, alloy C

Size: 6 mm (1/4") to 51 mm (2")

Fluid wetting part type: BSPT (NPT) or DIN (ANSI)

The maximum temperature tolerated by elastomers is 176.7° C (350° F)

Optional elastomer material: Wil-Flex?, polyamide

Maximum outlet/inlet air pressure ratio: 26:1

WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump performance data:

Maximum traffic: 360 lpm (95 gpm)

Maximum outlet pressure: 20.7 bar (300 psi)

Maximum suction range: 9.3m (30.6'), 7.8m (25.5')

Maximum diameter of solid particles: 13mm (1/2")
