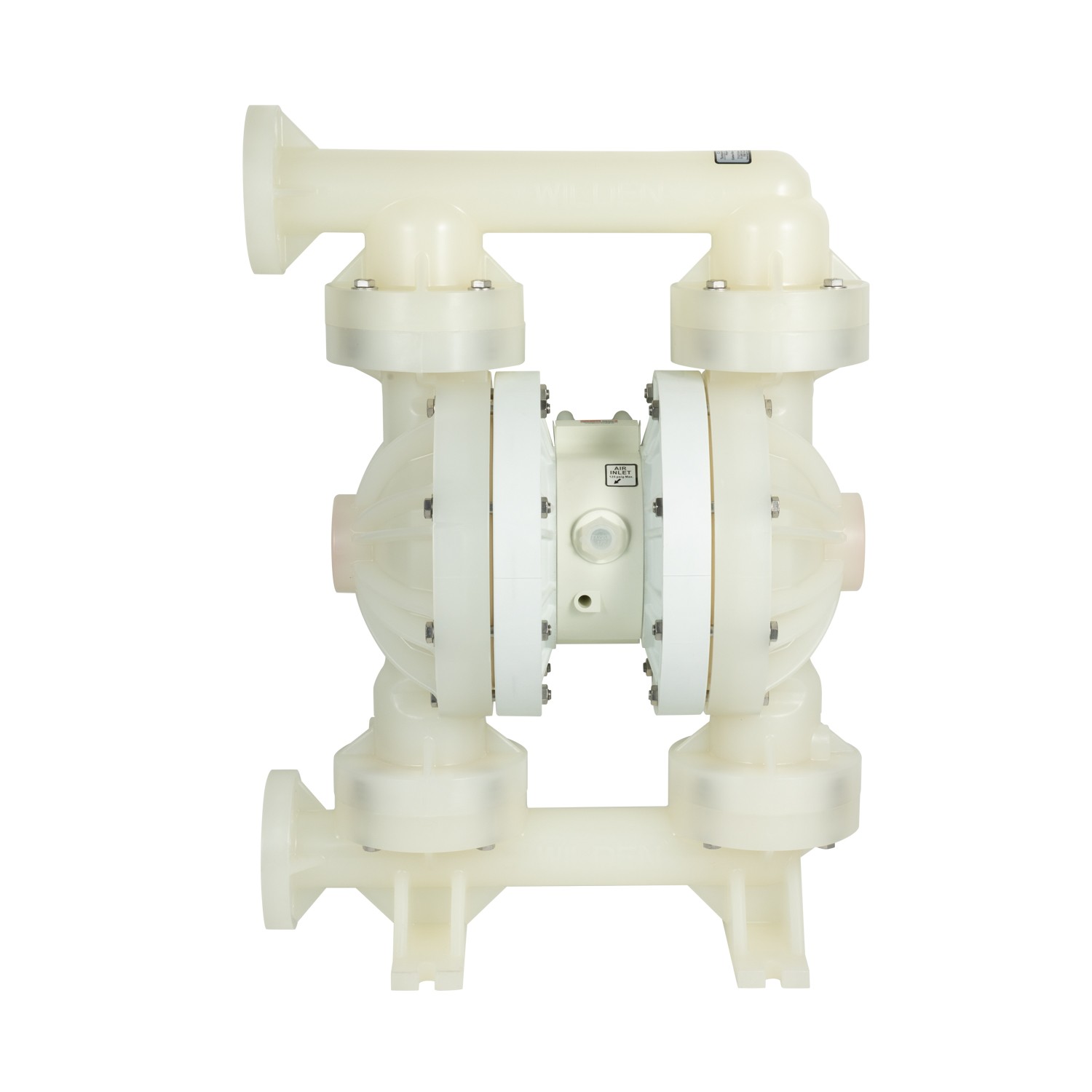

Wilden PX8 clamp type plastic pneumatic diaphragm pump

WILDEN Wilton PX8 clamp type plastic pneumatic diaphragm pump specifications:

Material of liquid contact:

Polypropylene transport weight: 34 kg (75 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel, ductile iron;

Intermediate: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton PX8 clamp type plastic pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm);

Media outlet dimensions: 2” (51 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 606 lpm (160 gpm);

Teflon PTFE: 503 lpm (133 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 6.9 m (22.7’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 3.8 m (12.5’), wet suction 9.2 m (30.1’);
