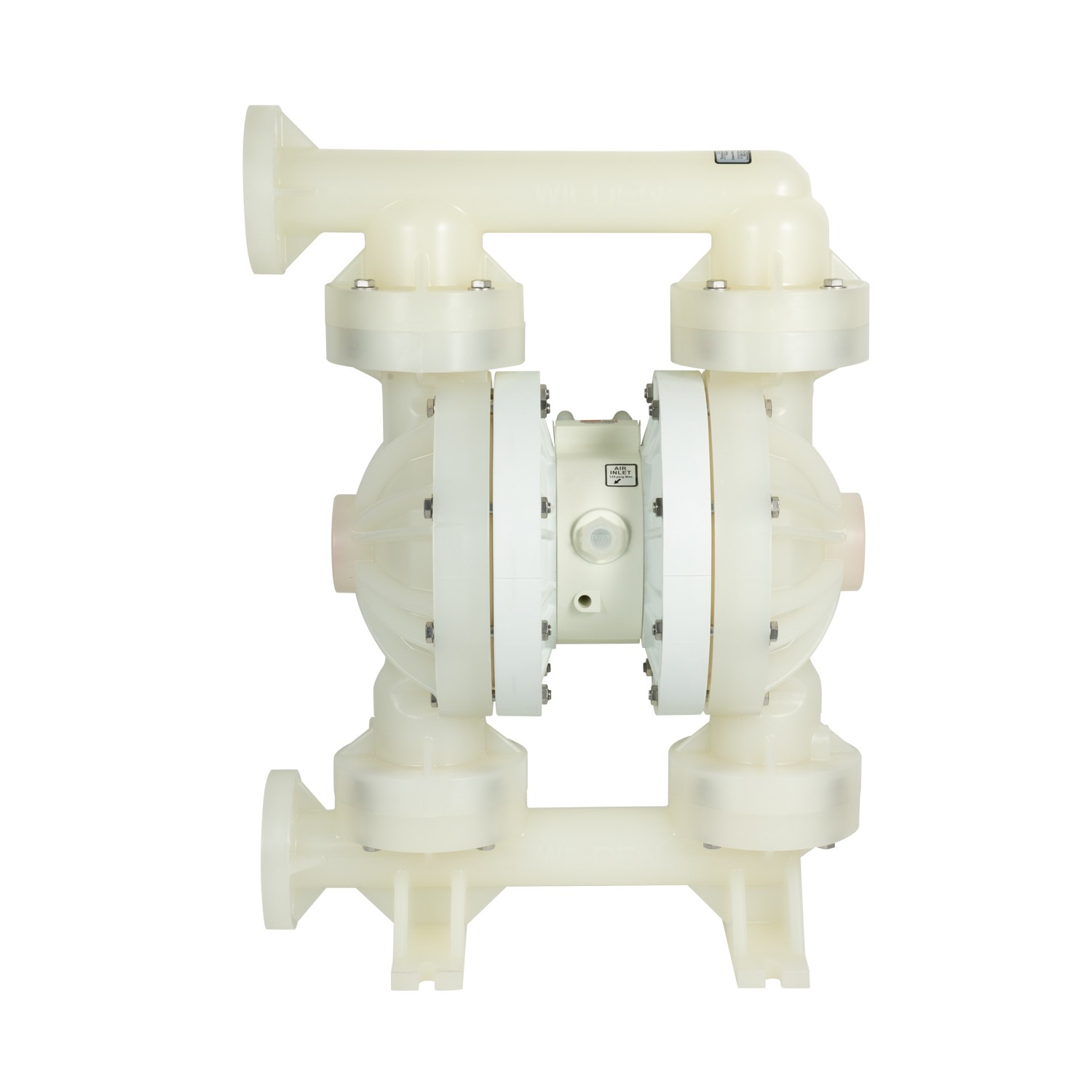

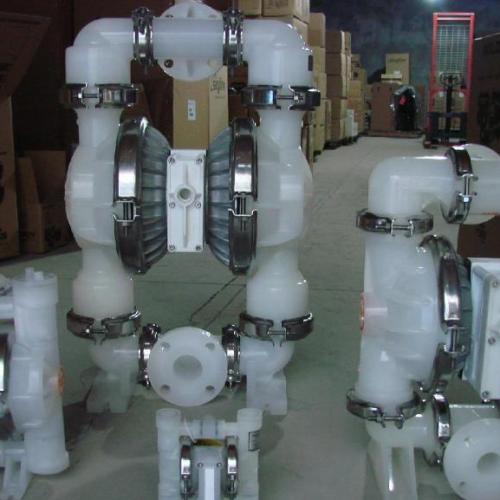

WILDEN   P8 clamp type plastic gas  dynamic diaphragm pump

WILDEN Wilton P8 clamp type plastic pneumatic diaphragm pump specifications:

Material of liquid contact:

Polypropylene transport weight: 34 kg (75 lbs);

Polyvinylidene Fluoride transport weight: 43kg (95 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel;

Intermediate: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton P8 clamp type plastic pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm);

Media outlet dimensions: 2” (51 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 591 lpm (156 gpm);

Teflon PTFE: 481 lpm (127 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 7.0 m (23.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 4.3 m (14.0’), wet suction 9.5 m (31.0’);
