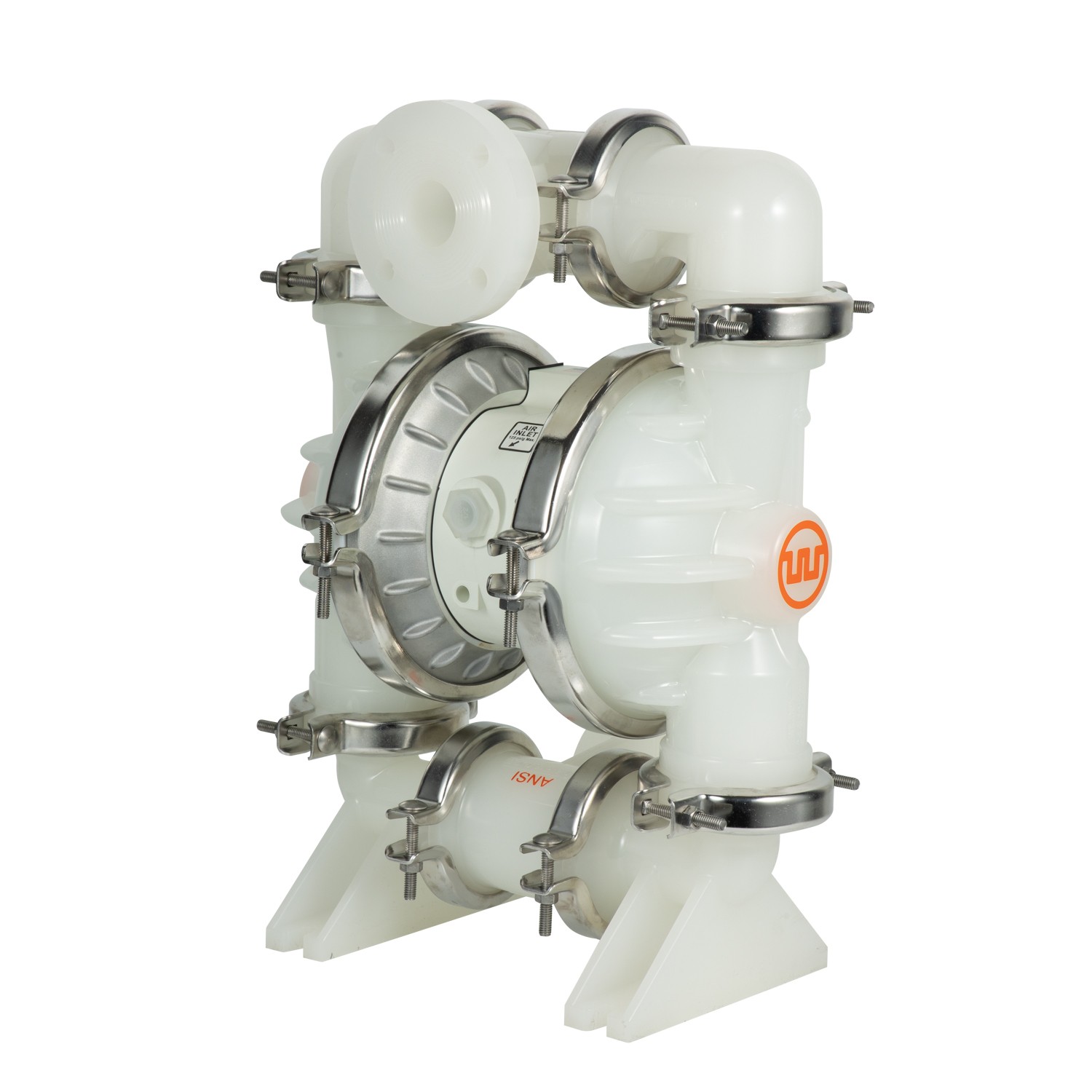

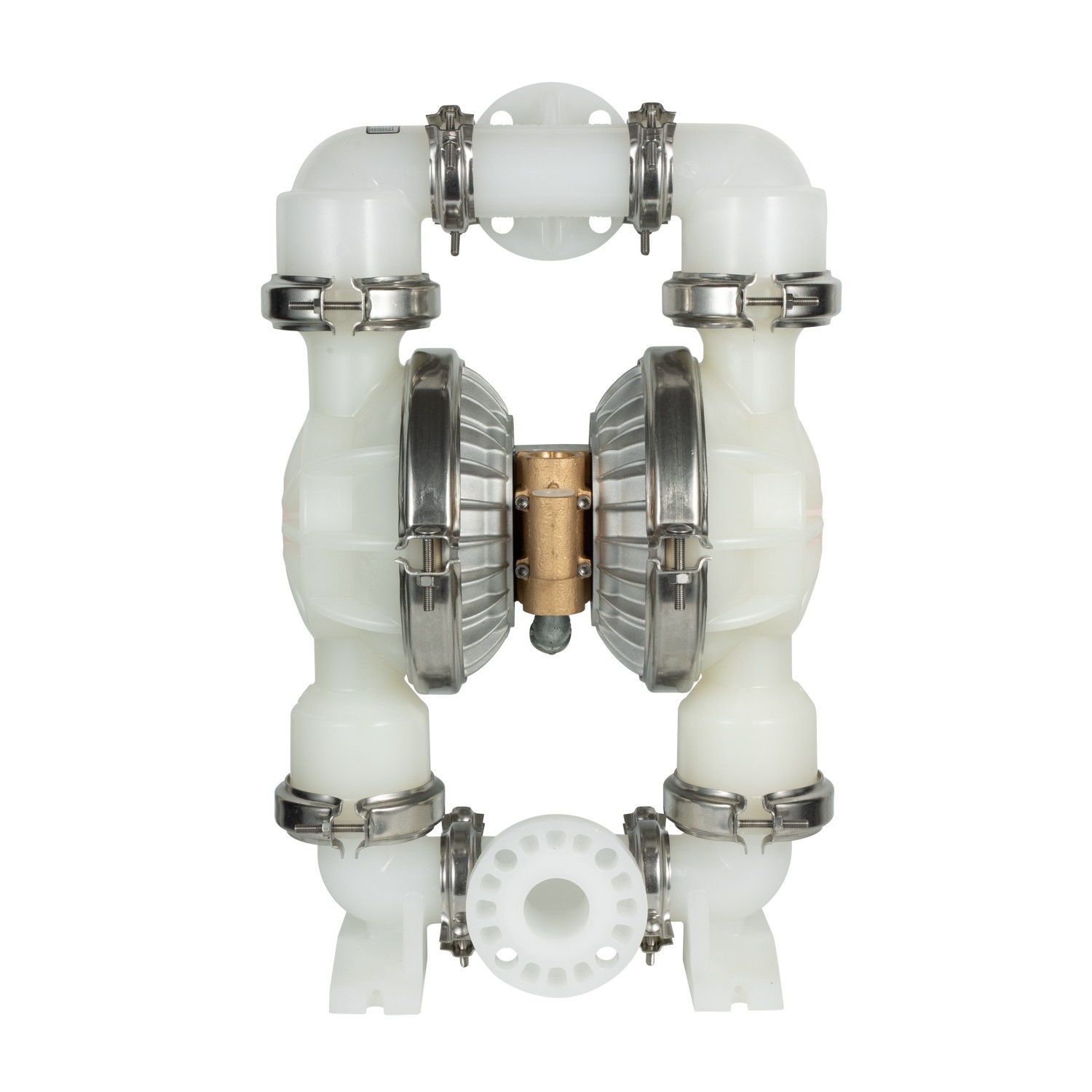

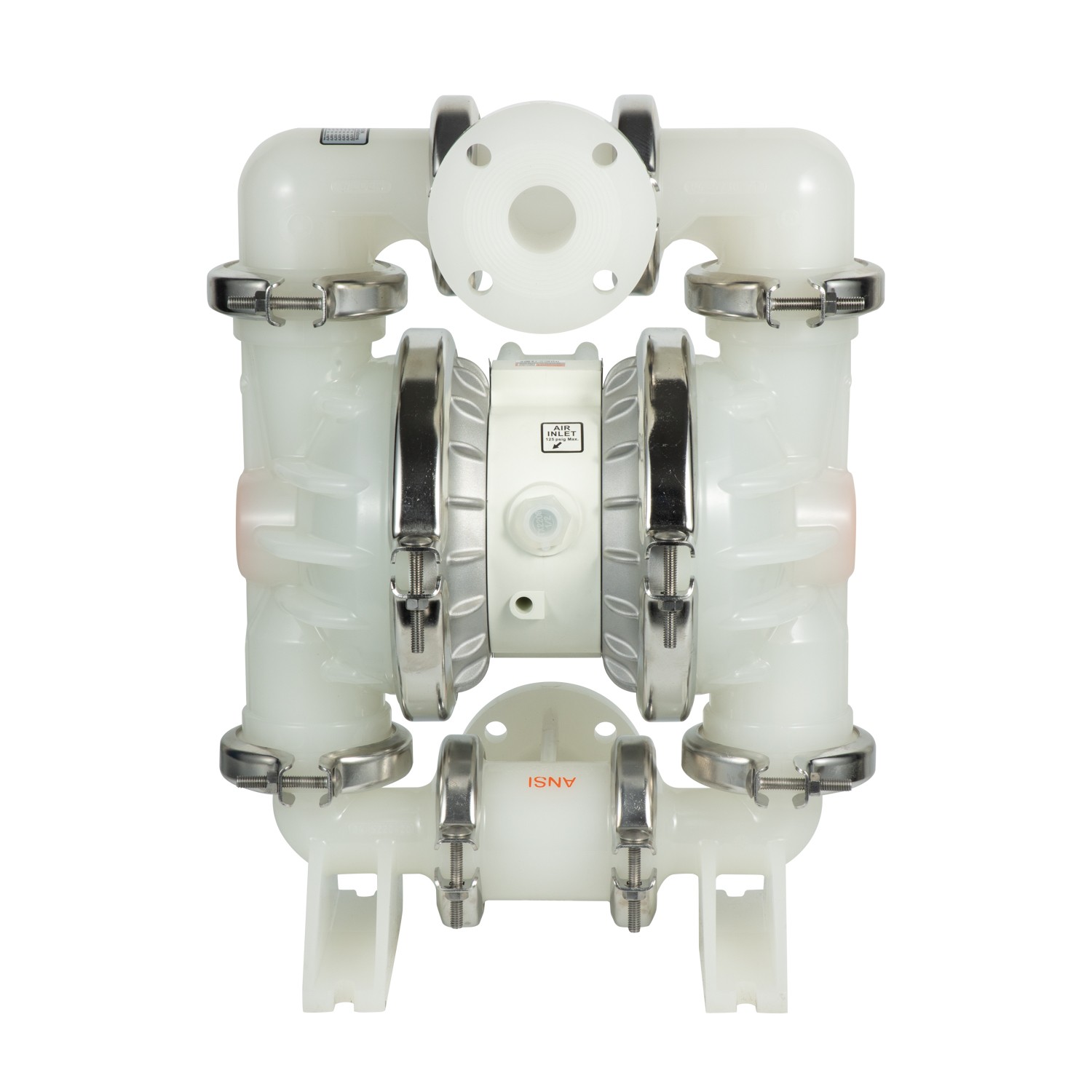

WILDEN   PX4 clamp type plastic pneumatic diaphragm pump

WILDEN Wilton PX4 clamp type plastic pneumatic diaphragm pump specifications:

Material of liquid contact:

Polypropylene transport weight: 17 kg (37 lbs);

Polyvinylidene Fluoride transport weight: 24kg (52 lbs);

Elastomer material:

Nitrile rubber, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel;

Intermediate: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton PX4 clamp type plastic pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm);

Media outlet dimensions: 1-1/2” (38 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 3/16” (4.8 mm);

Maximum traffic:

Rubber/thermoplastic compound: 363 lpm (96 gpm);

Teflon PTFE: 276 lpm (73 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.7 m (18.7’), wet suction 9.2 m (30.1’);

Teflon PTFE: dry suction 2.1 m (6.8’), wet suction 9.2 m (30.1’);
