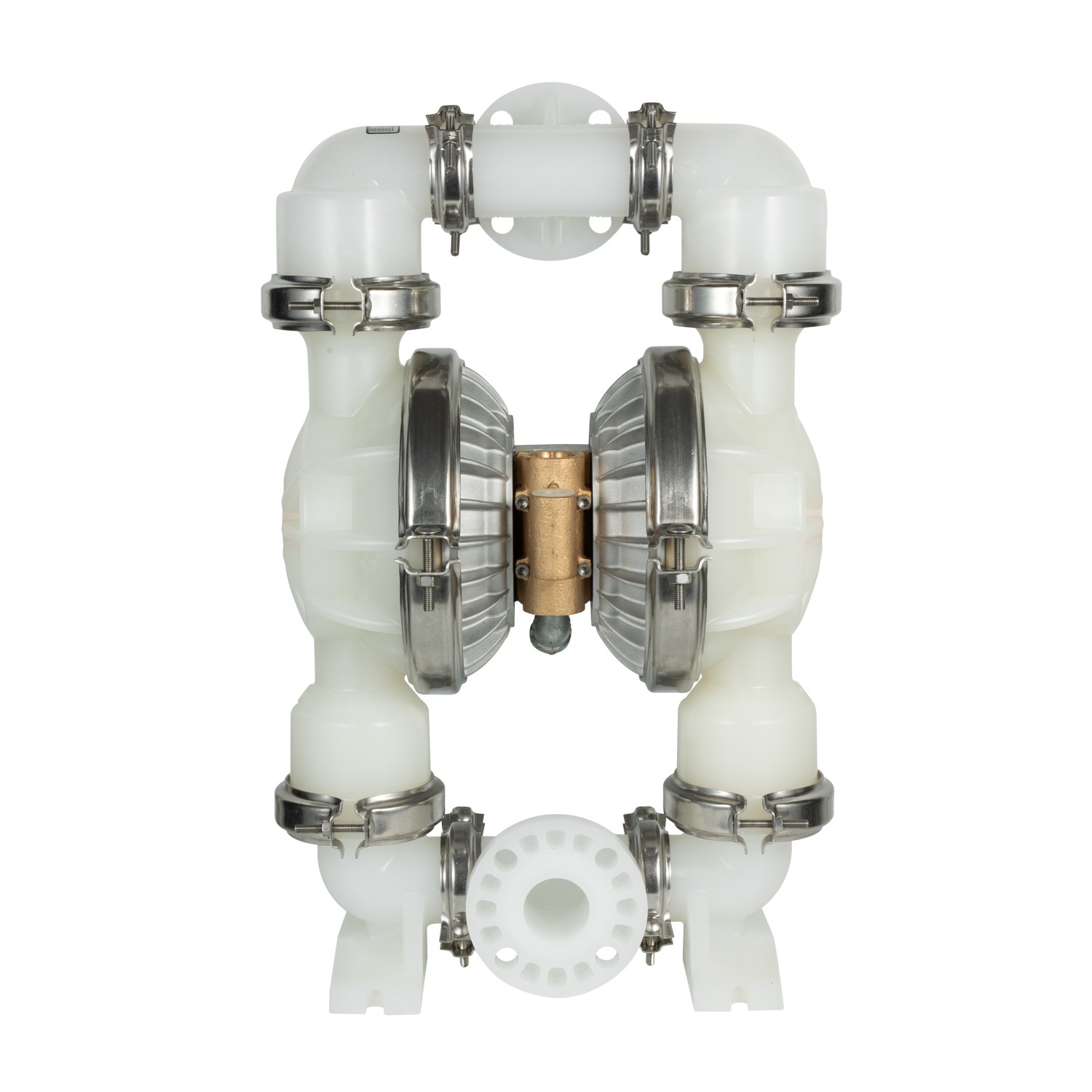

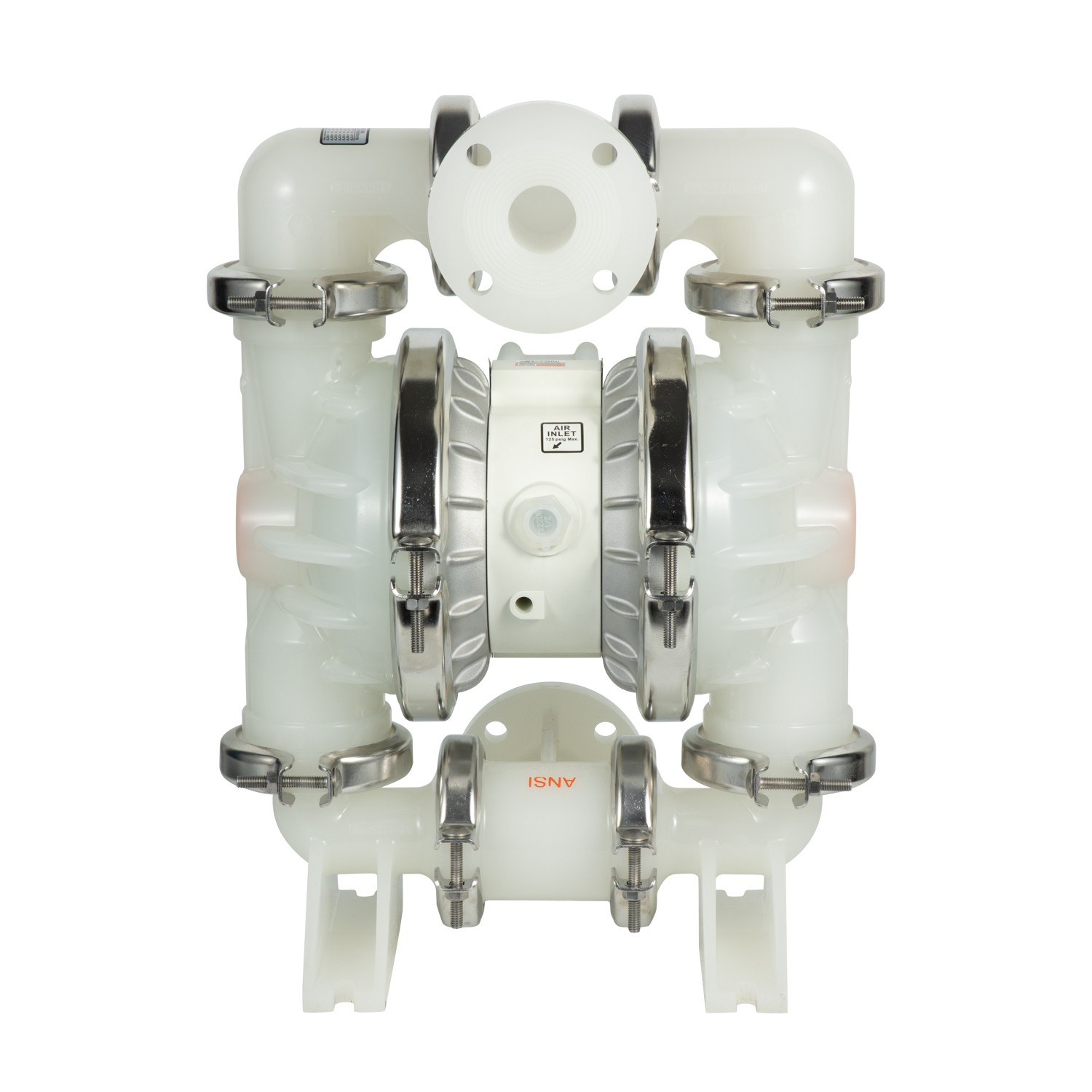

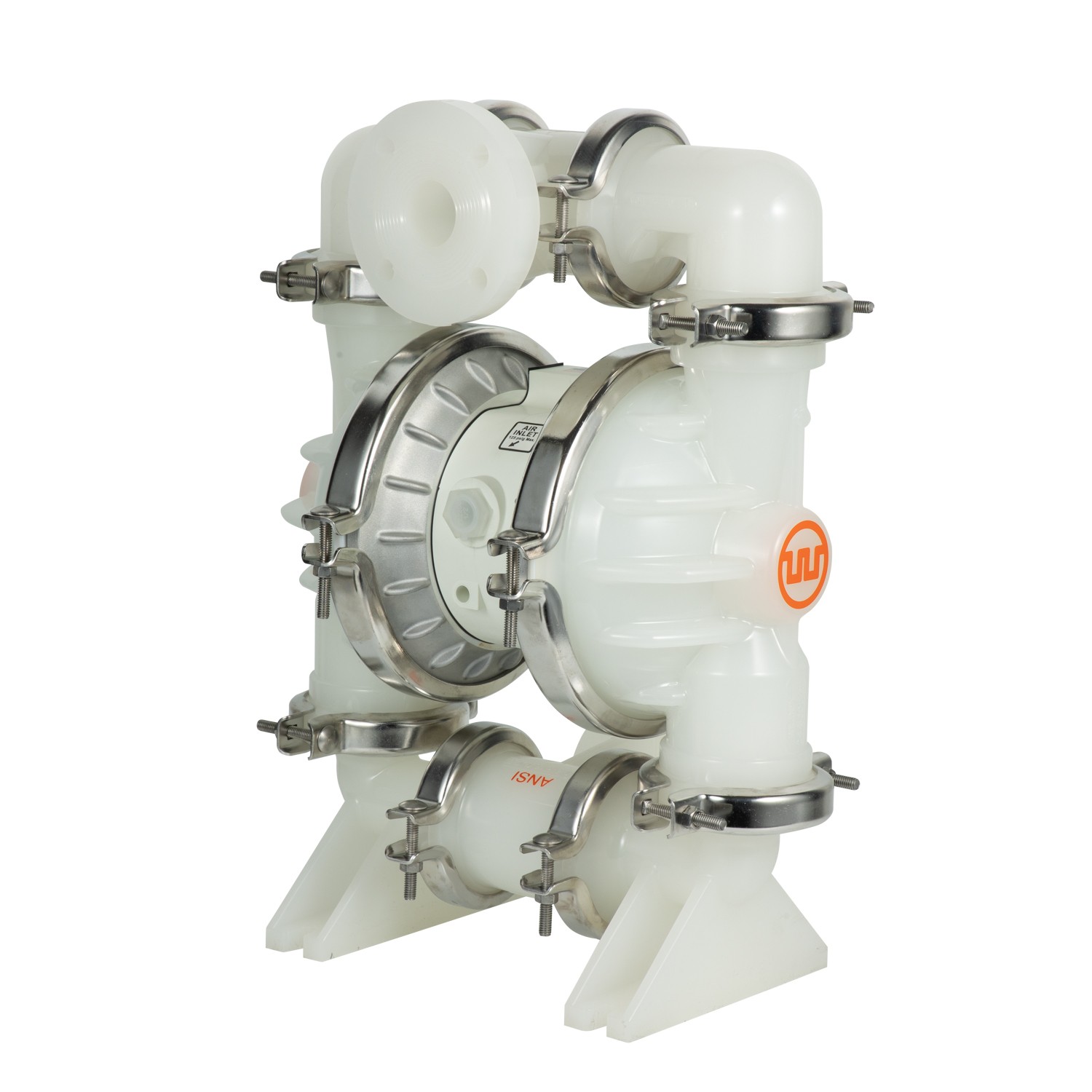

WILDEN P4 clamp type plastic pneumatic membrane pump

WILDEN   P4 clamp type plastic pneumatic membrane pump product features: corrosion resistance, high temperature resistance, good stability, no sticking, self-priming Optional elastomer materials: nitrile rubber, neoprene, EPDM, Wil-Flex, Saniflex, polyurethane, PTFE

Product Details

Product Tags

WILDEN   P4 clamp type plastic pneumatic membrane pump

WILDEN   P4 clamp type plastic pneumatic diaphragm pump specifications:


Material of liquid contact:


Polypropylene transport weight: 16.8 kg (37 lbs);


Polyvinylidene Fluoride transport weight: 21.3 kg (47 lbs);


Teflon transport weight: 23.9 kg (52 lbs);


Elastomer material:


Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM


Non-liquid-to-liquid material:


Air chamber: aluminum alloy, acetal, stainless steel;


Intermediates: polypropylene, acetal;


Air valve: polypropylene, acetal;




Performance parameters of WILDEN Wilton P4 clamp type plastic pneumatic diaphragm pump:


Media import dimensions: 1-1/2” (38 mm);


Media outlet dimensions: 1-1/2” (38 mm);


Air inlet size: 1/2” (13 mm);


Maximum outlet pressure: 8.6 Bar (125 psig);


Maximum solid particle diameter can be passed: 3/16” (4.8 mm);



Maximum traffic:


Rubber/thermoplastic compound: 354 lpm (94 gpm);


Teflon PTFE: 269 lpm (71 gpm);


Maximum suction range:


Rubber/thermoplastic compounds: dry suction 4.9 m (16.0’), wet suction 7.9 m (26.0’);

Teflon PTFE: dry suction 3.1 m (10.0’), wet suction 7.5 m (24.5’);
