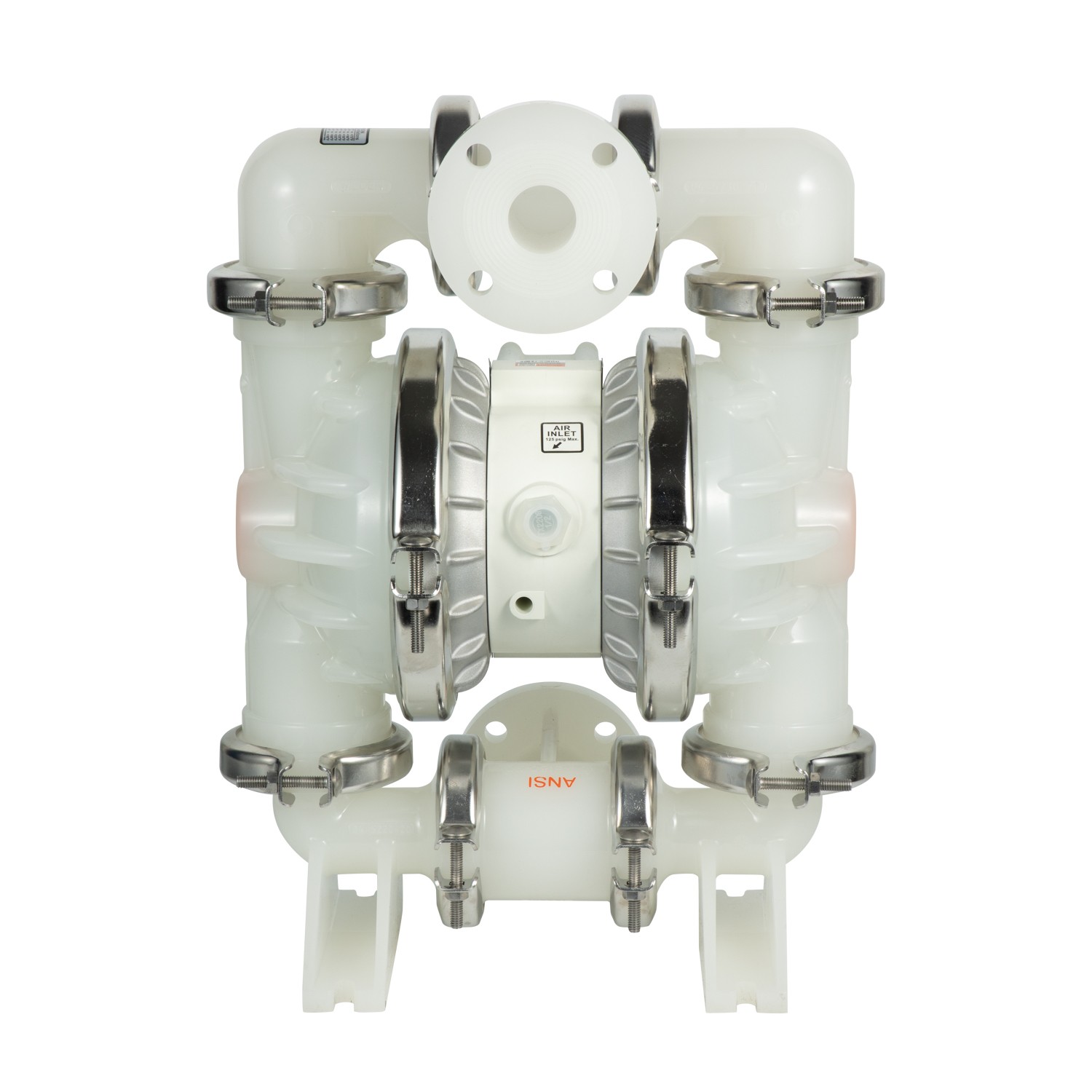

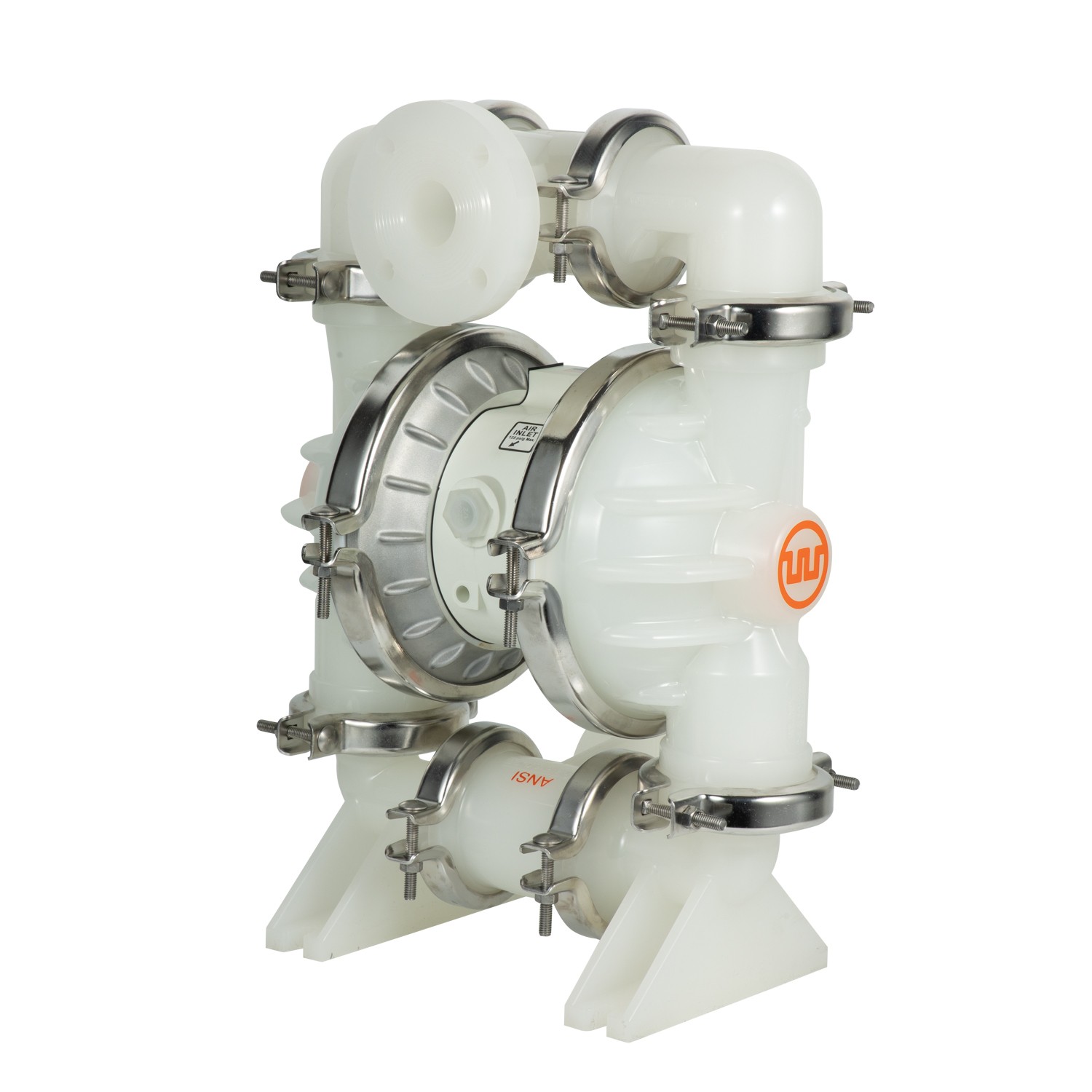

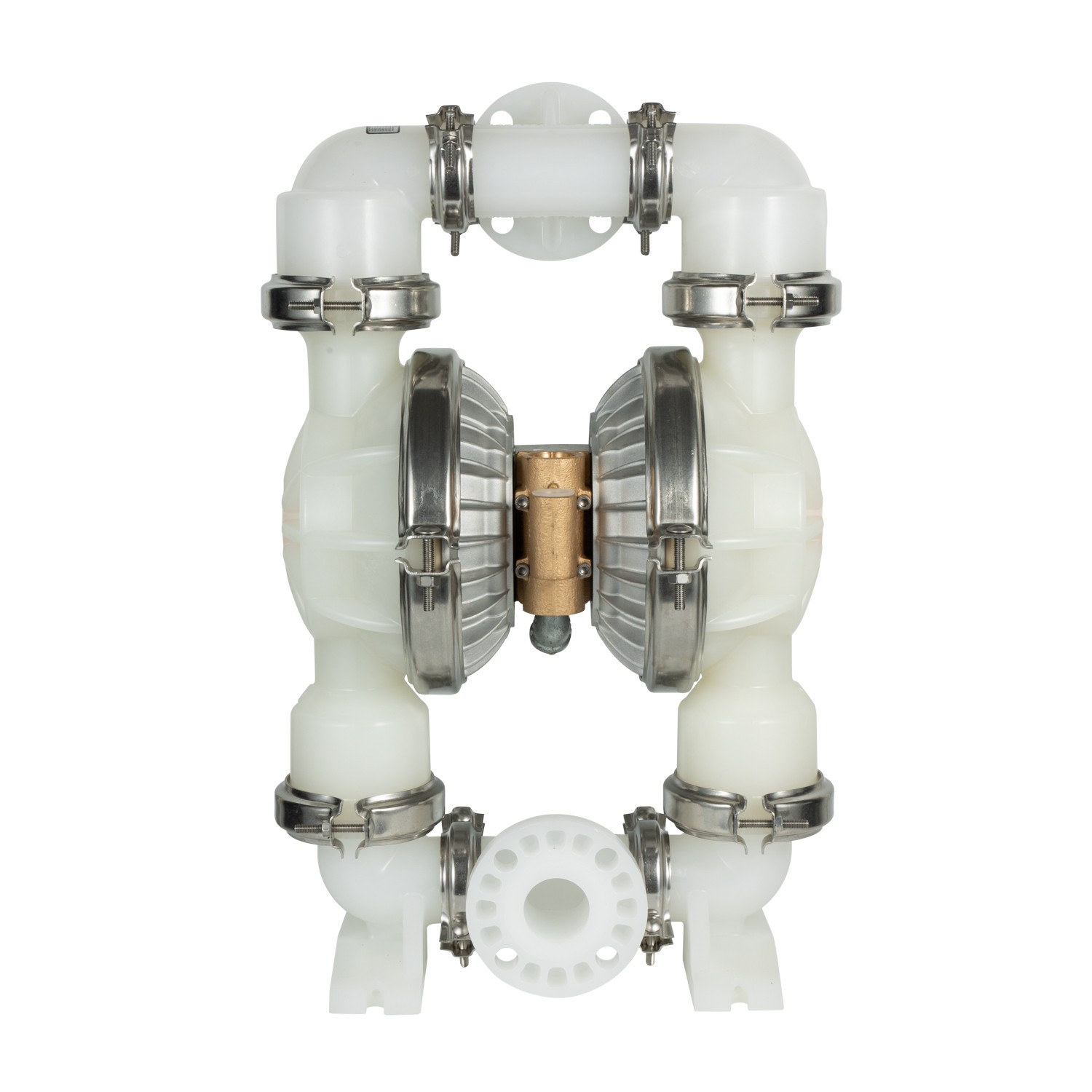

Portable WILDEN P1 Clamp Type Plastic Air Operated Diaphragm Pump

WILDEN   P1 clamp type plastic pneumatic diaphragm pump specifications:

Material of liquid contact:

Polypropylene transport weight: 4 kg (9 lbs);

Polyvinylidene Fluoride transport weight: 5 kg (11 lbs);

Teflon transport weight: 6 kg (12 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-liquid-to-liquid material:

Intermediate part: polypropylene, acetal;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton P1 clamp type plastic pneumatic diaphragm pump:

Media import dimensions: 1/2” (13 mm);

Media outlet dimensions: 1/2” (13 mm);

Air inlet size: 1/4” (6 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 1/16” (1.6 mm);

Maximum traffic:

Rubber/thermoplastic compound: 56.8 lpm (15.0 gpm);

Teflon PTFE: 53.4 lpm (14.1 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 6.1 m (20.0’), wet suction 9.8 m (32.0’);

Teflon PTFE: dry suction 5.2 m (17.0’), wet suction 9.8 m (32.0’);
