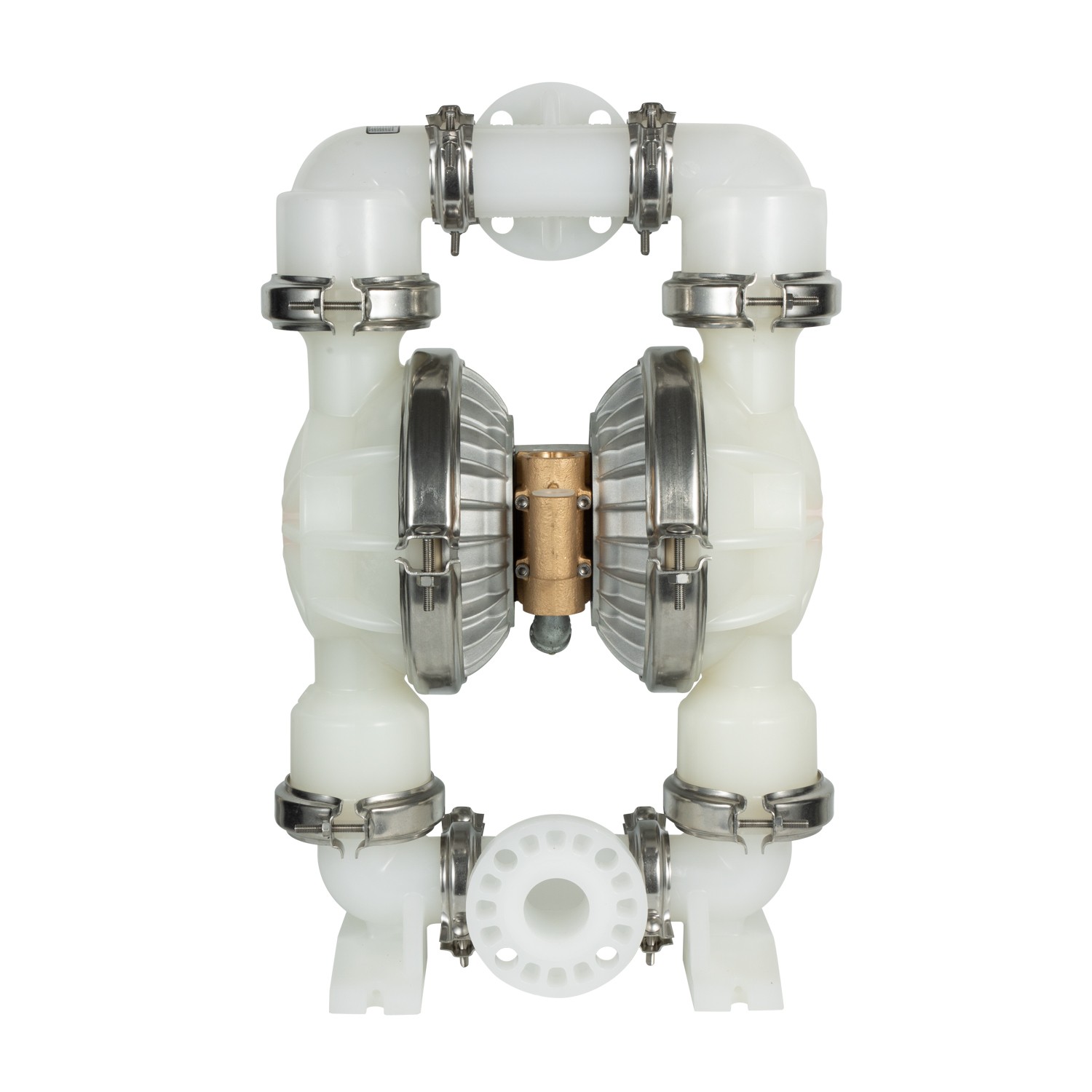

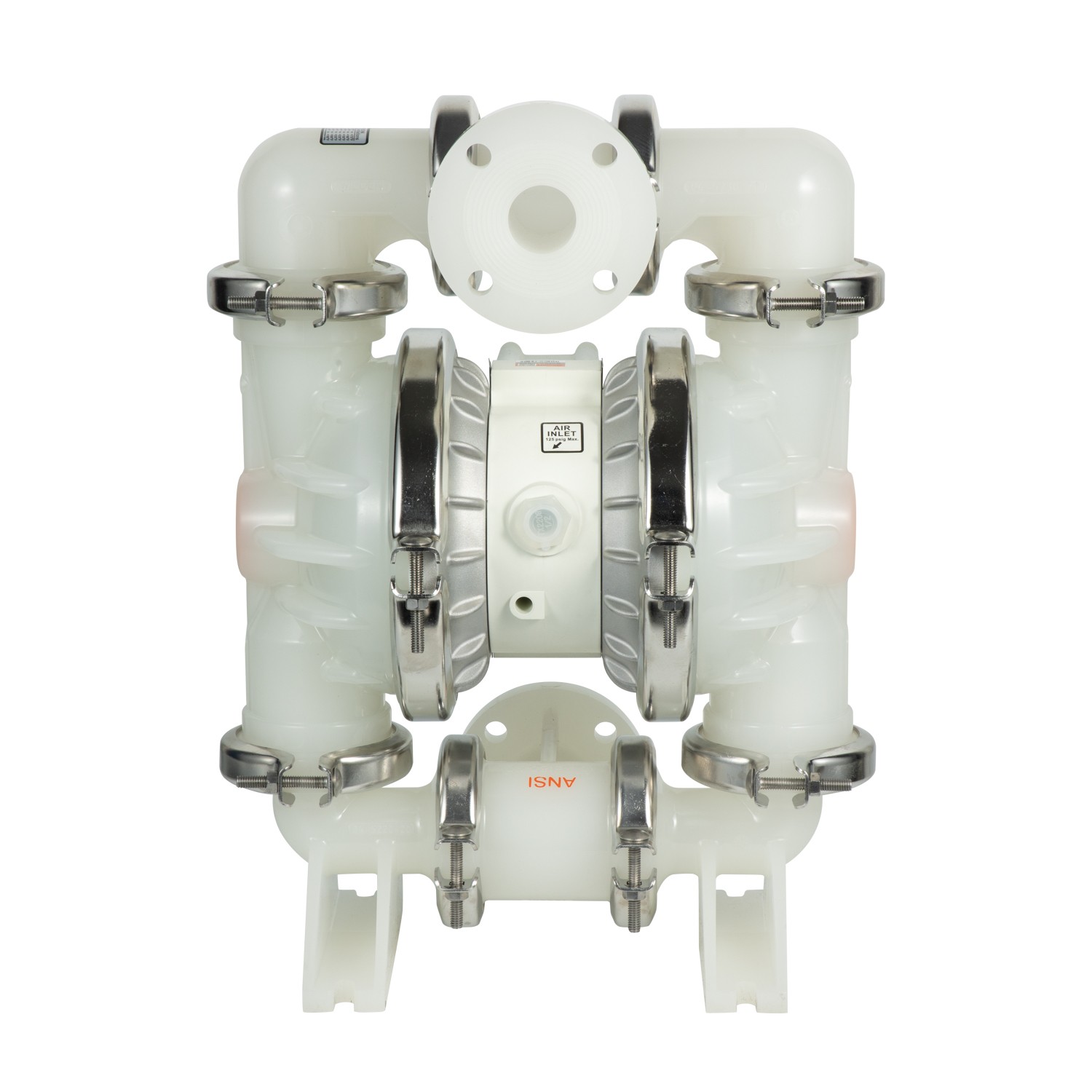

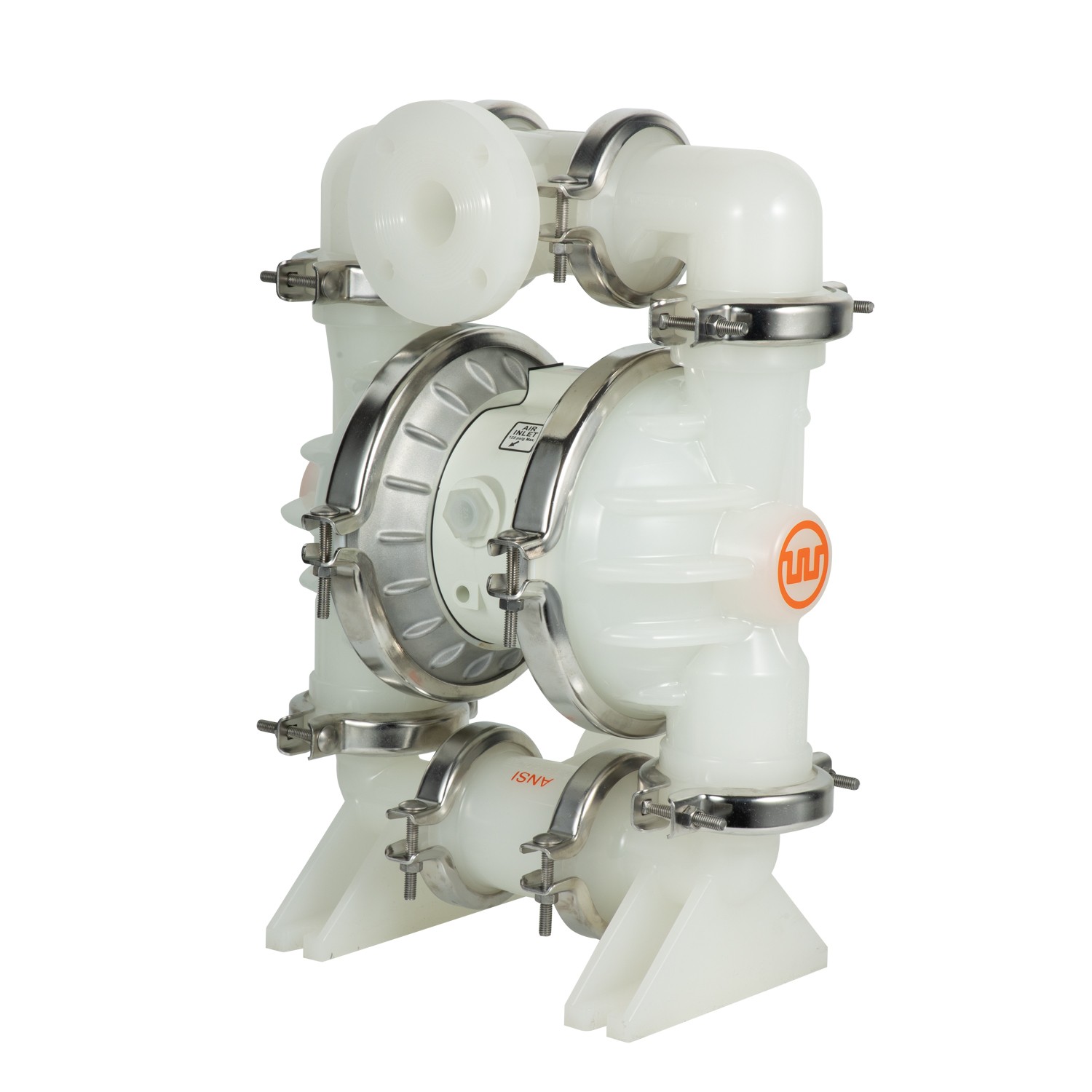

Wilden P.025 P1/PX1 P2 P4/PX4 P8/PX8 P15 PX4 Pneumatic Diaphragm Pump

WILDEN   P.025 P1/PX1 P2 P4/PX4 P8/PX8 P15 PX4  clamp type plastic pneumatic diaphragm

pump specifications:

Material of liquid contact:

Polypropylene transport weight: 1.4 kg (3 lbs);

Polyvinylidene Fluoride transport weight: 1.4 kg (3 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, Teflon PTFE, Wil-FlexTM

Non-liquid-to-liquid material:

Intermediate part: polypropylene, acetal;

Air valve: polypropylene, acetal;

Performance parameters of WILDEN Wilton P.025 clamp type plastic pneumatic diaphragm pump:

Media import dimensions: 1/4” (6 mm);

Media outlet dimensions: 1/4” (6 mm);

Air inlet size: 1/8” (3mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 1/64” (0.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 18.1 lpm (4.8 gpm);

Teflon PTFE: 18.1 lpm (4.8 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 3.1 m (10.0’), wet suction 9.5 m (31.0’);

Teflon PTFE: dry suction 2.4 m (8.0’), wet suction 8.8 m (29.0’);
