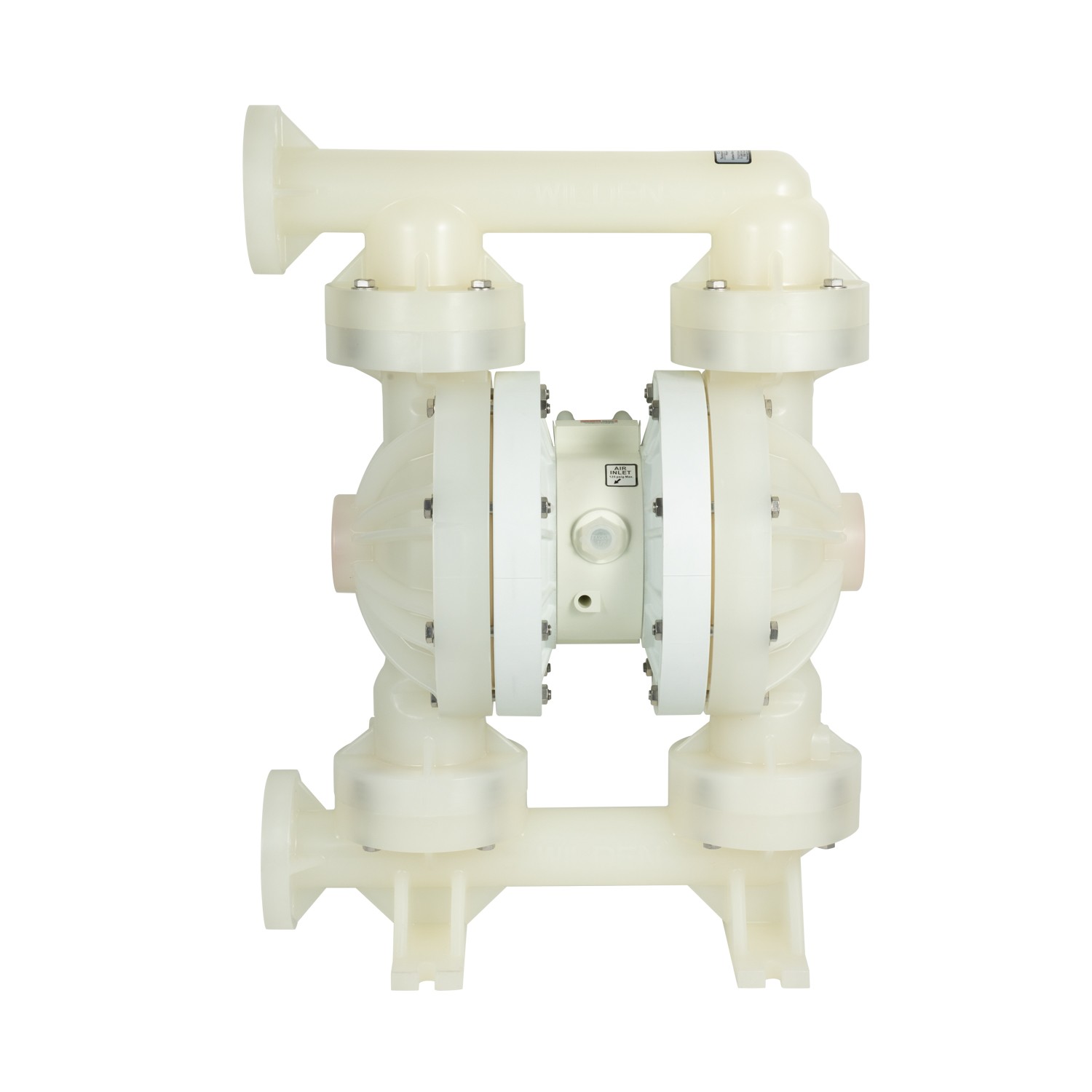

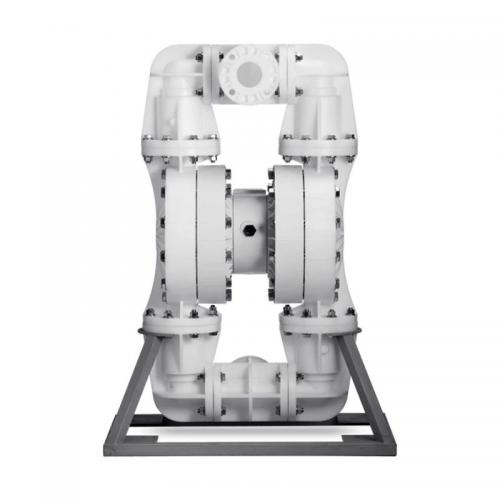

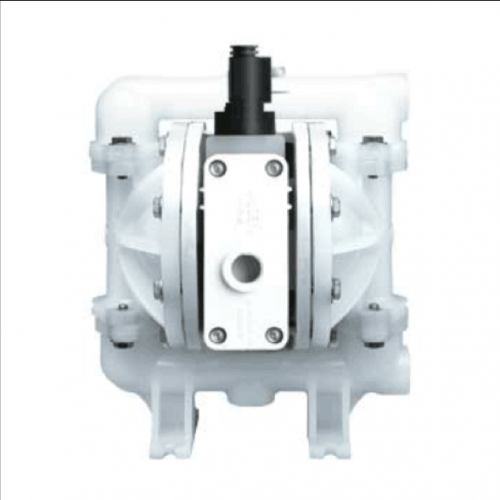

XPX8  WILDEN SANIFLO series pneumatic diaphragm pump

WILDEN SANIFLO Series Pneumatic Diaphragm Pumps

Technology: Pneumatic Diaphragm

Features:

1. Equipped with Pro-Flo X air delivery system;

2. Can deliver delicate/shear-sensitive products;

3. With a rotating table;

4. Integral external pressure plate diaphragm option;

5. A variety of sanitary elastomers to choose from;

6. Excellent product tolerance;

7. CIP (cleaning in place);

8. Various levels of certification: EHEDG, 3A, CE, ATEX, UPS Class Vl and FDA;

9. Offset valve housing for easy alignment.

WILDEN SANIFLO  Series Pneumatic Diaphragm Pump Technical Data:

Optional materials include 316 and 316L

Sizes: 13 mm (1/2") to 152 mm (6")

Three-claw connector

Polishing degree can reach Ra 0.8 μm (32 μ-in)

The maximum temperature that the elastomer can withstand is 177° C (350° F)

Optional elastomer materials: nitrile rubber, chloroprene rubber, EPDM, Viton®, Wil-Flex ,

Saniflex , polyurethane, polytetrafluoroethylene (PTFE)

WILDEN SANIFLO Series Pneumatic Diaphragm Pump Performance Data:

Maximum flow: 920 lpm (243 gpm)

Maximum outlet pressure: 8.6 bar (125 psi)

Maximum suction range: 9.5 m (31.2') for wet suction and 7.6 m (25.0') for dry suction

Maximum diameter of solid particles that can pass (compressible): 152 mm (6")
