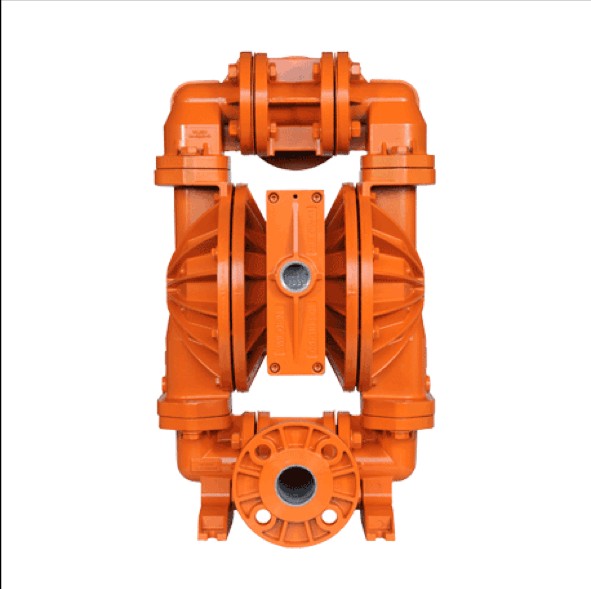

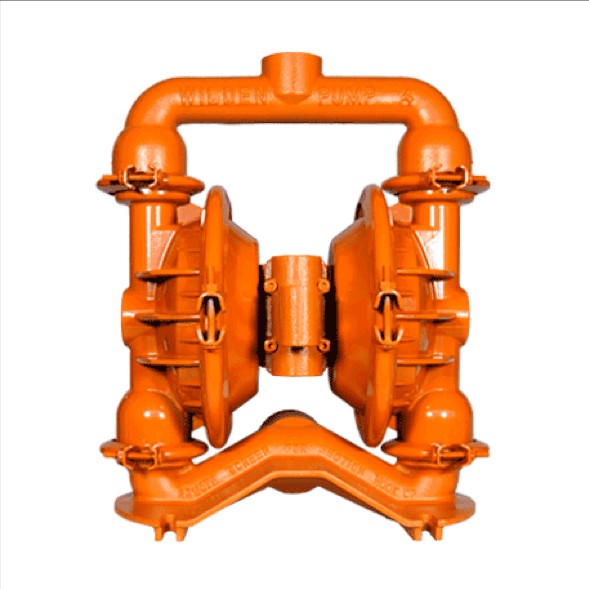

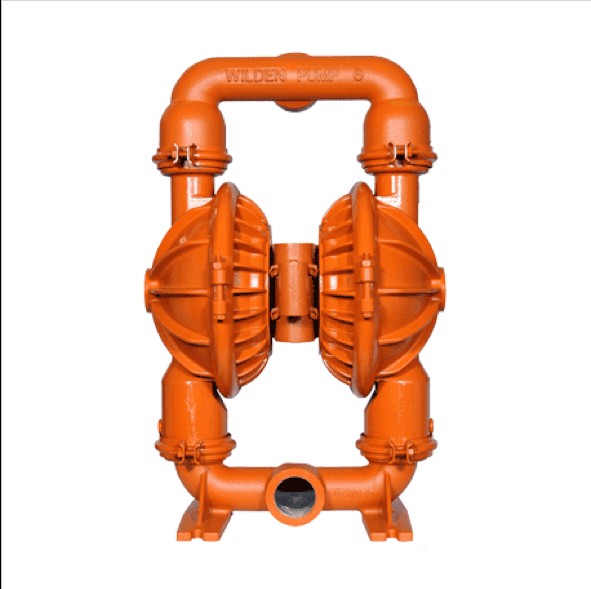

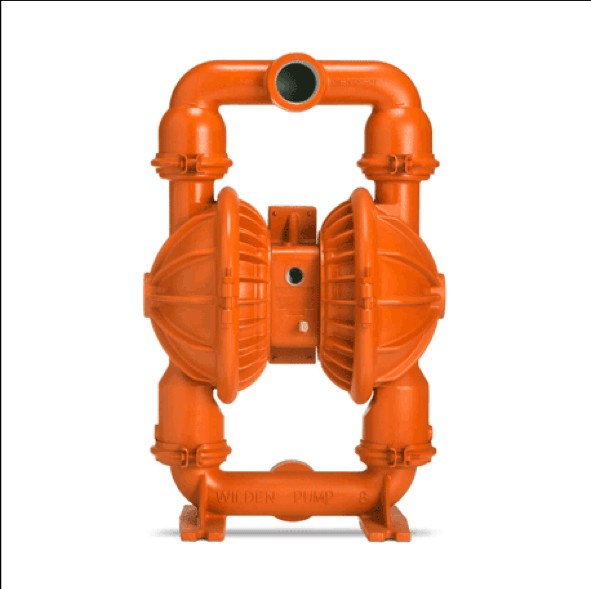

PS15  76 mm (3") wilden  Series Clamped Metal Pump

PS15

AIR INLET air inlet

3/4" FNPT

LIQUID INLET Import

76 mm (3")

LIQUID DISCHARGE Export

76 mm (3")

CONNECTION TYPE interface form

NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration

Rubber – 6.6 m (21.6') Dry, 8.6 m (28.4') Wet

EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet

Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet

MAX FLOW RATE Maximum Traffic

Rubber – 927 lpm (245 gpm)

EZ-Install TPE – 901 lpm (238 gpm)

Full-Stroke PTFE – 916 lpm (242 gpm)

MAX PRESSURE Maximum Pressure

8.6 bar (125 psi)

MAX DIAMETER SOLIDS Maximum Particle

9.5 mm (3/8")

DISPLACEMENT PER STROKE Displacement per stroke

Rubber – 5.2 L (1.38 gal)

EZ-Install TPE – 5.3 L (1.41 gal)

Full-Stroke PTFE – 5.1 L (1.34 gal)

* 1 cycle = 2 strokes
