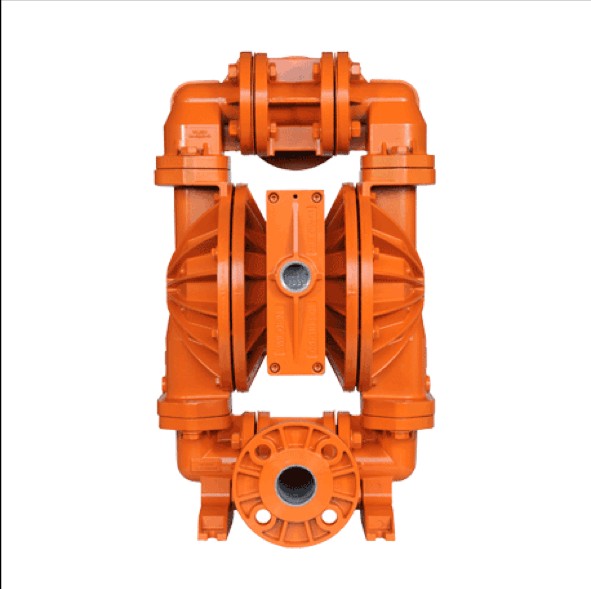

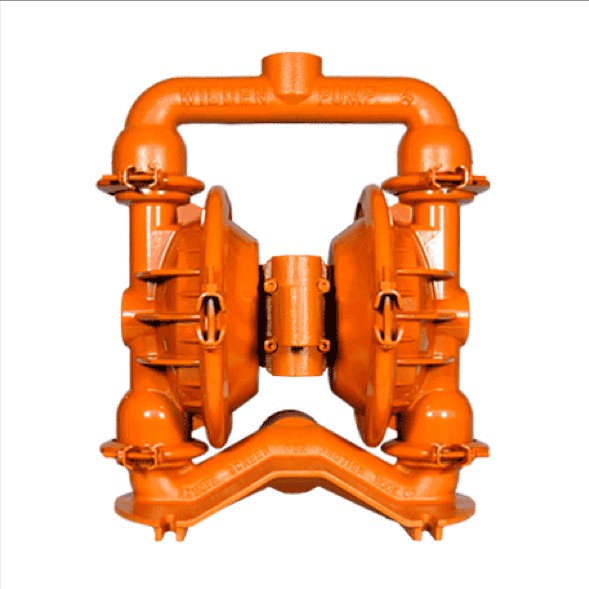

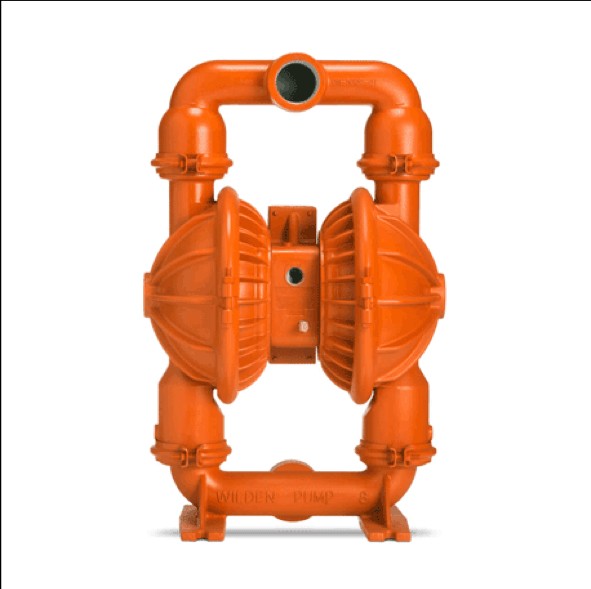

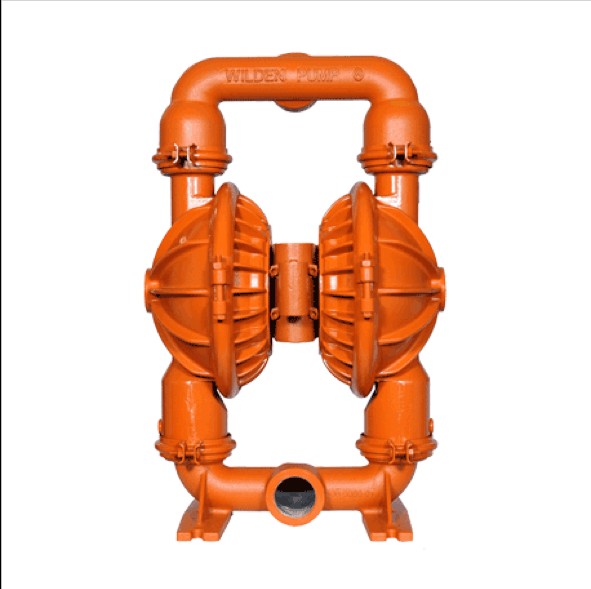

PS8   51 mm 2 inch Wilden  Clamped Metal Pump

51 mm (2") Pro-Flo® SHIFT Series Clutch Metal Pump

PS8

AIR INLET air inlet

3/4" FNPT

LIQUID INLET Import

51 mm (2")

LIQUID DISCHARGE Export

51 mm (2")

CONNECTION TYPE interface form

NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration

Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet

EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet

MAX FLOW RATE Maximum Traffic

Rubber – 700 lpm (185 gpm)

EZ-Install TPE – 719 lpm (190 gpm)

Full-Stroke PTFE – 723 lpm (191 gpm)

MAX PRESSURE Maximum Pressure

8.6 bar (125 psi)

MAX DIAMETER SOLIDS Maximum Particle

6.4 mm (1/4")

DISPLACEMENT PER STROKE Displacement per stroke

Rubber – 2.6 L (0.69 gal)

EZ-Install TPE – 2.6 L (0.69 gal)

Full-Stroke PTFE – 2.4 L (0.64 gal)

* 1 cycle = 2 strokes

PS8 Series Wilden Air Operated Diaphragm Pump
