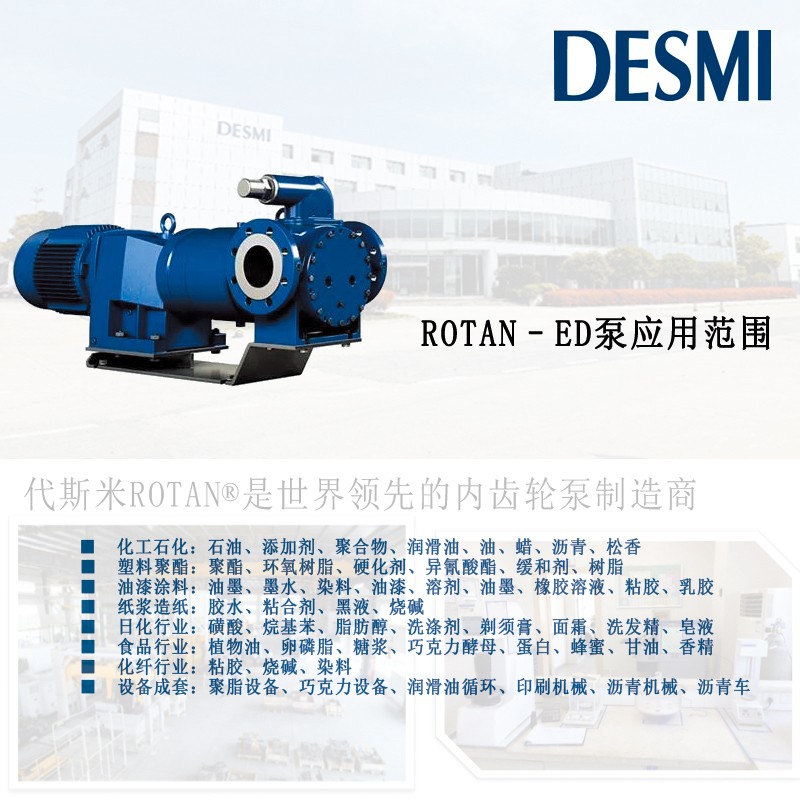

DESMI  ROTAN® ED - Environmentally friendly magnetic drive pump

Desmi ROTAN® is the world's leading manufacturer of internal gear

pumps. ROTAN® internal gear pumps provide favorable flow conditions as the fluid flow direction

changes only require a slight adjustment to the pump.

DESMI  ROTAN® ED - Environmentally friendly magnetic drive pump

Environmentally friendly magnetic drive pumps that completely solve the leakage problem,

especially in working conditions where liquid or gas leakage is not allowed.

Due to the minimal maintenance required, ED pumps are a very economical solution compared

 to traditional sealed pumps. Especially in applications where double mechanical seals are required.

Usually, the application conditions of different working conditions are also different, which requires

sealing and auxiliary flushing systems, and frequent maintenance or replacement. Therefore, the life

cycle cost of ED pumps is usually much lower than that of double mechanical seals.

90° inlet and outlet structure available

DESMI  ROTAN® ED - Environmentally friendly magnetic drive pump Features and advantages:

Reduce pump maintenance, or even lifetime maintenance-free

No loss of process medium, no waste

No environmental emissions and environmental pollution concerns

Complete configuration, providing the most optimized solution

Back-pull design, simple maintenance, efficient and cost-effective

DESMI  ROTAN® ED - Environmentally friendly magnetic drive pump Technical Specifications:

Material Cast iron, carbon steel or stainless steel

Flow range Up to 90 m3/h / 396 gpm

Speed Up to 1750 rpm

Differential pressure Up to 16 bar / 232 psi

Priming Up to 0.5 bar / 7.25 psi vacuum when priming

Up to 0.8 bar / 11.6 psi vacuum when delivering

Viscosity range Up to 10,000 cSt

Temperature Up to 250°C / 482°F

DESMI  ROTAN® ED - Environmentally friendly magnetic drive pump  Conveying medium

• Isocyanates

• Solvents

• Hazardous organic liquids

• Printing inks

• Resins

• Bitumen

• Alkyd resins

• Soybean oil

• Linseed oil

• Monomers

• Polyols

• Corn syrup

Desmi DESMI was founded in 1834 and is one of the oldest companies in Denmark.

 Now Desmi DESMI's solutions are sold to more than 100 countries through subsidiaries

 and agents around the world.

DESMI specializes in the development, manufacturing, sales and services of pump and

pumping solutions, including a variety of environmental equipment for oil spill recovery,

seaweed and waterway cleaning.

DESMI specializes in liquid delivery and has a wide range of applications in the process industry.

Industrial pumping solutions include ROTAN® internal gear pumps and efficient DESMI

centrifugal pumps.

DESMI provides efficient and reliable pump solutions for all utility applications.

To better serve cities, buildings and residents, our primary belief is reliability, energy

optimization and friendly service of equipment operations.

Since Danish imported water pumps require very little maintenance, ED pumps are a

 fairly economical solution compared to traditional sealed pumps. Especially in applications

where dual mechanical seals are required. Usually, the application conditions of different

working conditions are different, which requires sealing and auxiliary flushing systems,

and requires frequent maintenance or replacement. Therefore, the life cycle cost of ED

pumps is generally much lower than that of dual mechanical seals.

 Can provide 90° import and export structure
