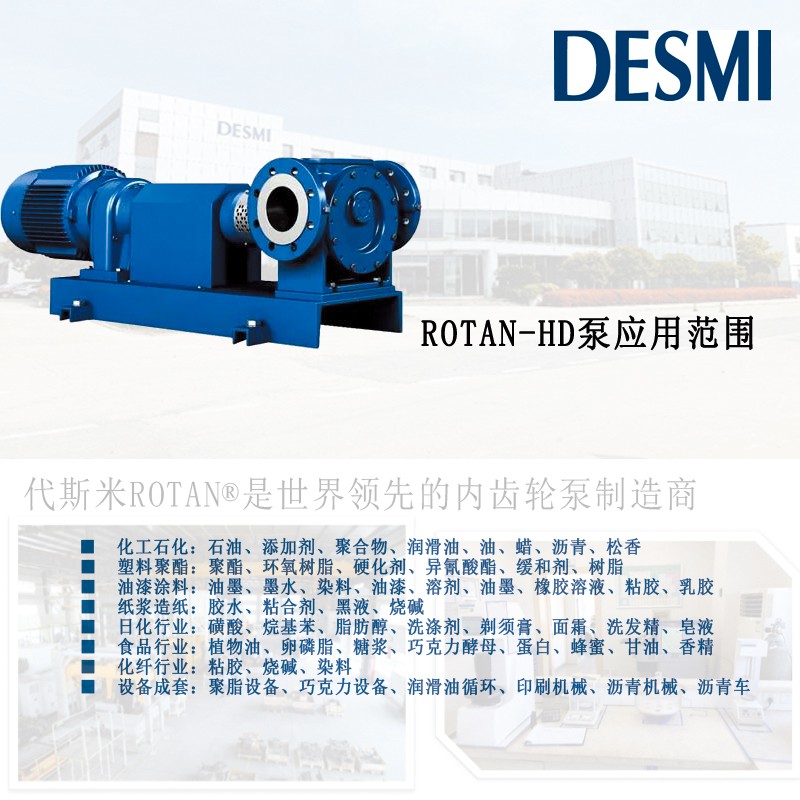

DESMI ROTAN® HD Heavy-duty pump Gear Pumps
DESMI ROTAN® HD Heavy-duty pump Gear Pumps Desmi ROTAN® is the world's leading manufacturer of internal gear
pumps. ROTAN® internal gear pumps provide favorable flow conditions as the fluid flow direction
changes only require a slight adjustment to the pump.
Widely suitable for cast iron pumps with non-corrosive media of various viscosity.
HD pumps are designed for demanding applications, including high viscosity media.
HD pumps are known for their sturdy and simple construction. A 90° inlet and outlet structure can be provided.
DESMI ROTAN® HD Heavy-duty pump Gear Pumps Features and Advantages:
Rugged and reliable, but economical
Available in the widest range of sizes and options for almost any non-corrosive application
The tightest gap allows high efficiency and good self-priming ability
DESMI ROTAN® HD Heavy-duty pump Gear Pumps Technical parameters:
Flow range: Maximum 250 m3/h / 1100 gpm
Speed up to 1750 rpm
Differential pressure up to 16 bar / 232 psi
Self-priming height When self-priming, up to 0.5 bar / 7.25 psi vacuum
Up to 0.8 bar / 11.6 psi vacuum during transport
Viscosity range up to 250,000 cSt
Temperature up to 250°C / 482°F
DESMI ROTAN® HD Heavy-duty pump Gear Pumps Conveying medium
• Oil
• Asphalt
• chocolate
• Paint/varnish
• Syrup
• Soap
• Additives
• Polyols
• Adhesive
•Sulphur soap
• Maltose
• Asphalt
• Base oil
• Asphalt
• Polyester
Desmi DESMI was founded in 1834 and is one of the oldest companies in Denmark.
Now Desmi DESMI's solutions are sold to more than 100 countries through subsidiaries
and agents around the world.
DESMI specializes in the development, manufacturing, sales and services of pump and
pumping solutions, including a variety of environmental equipment for oil spill recovery,
seaweed and waterway cleaning.
DESMI specializes in liquid delivery and has a wide range of applications in the process industry.
Industrial pumping solutions include ROTAN® internal gear pumps and efficient DESMI
centrifugal pumps.
DESMI provides efficient and reliable pump solutions for all utility applications.
To better serve cities, buildings and residents, our primary belief is reliability, energy
optimization and friendly service of equipment operations.

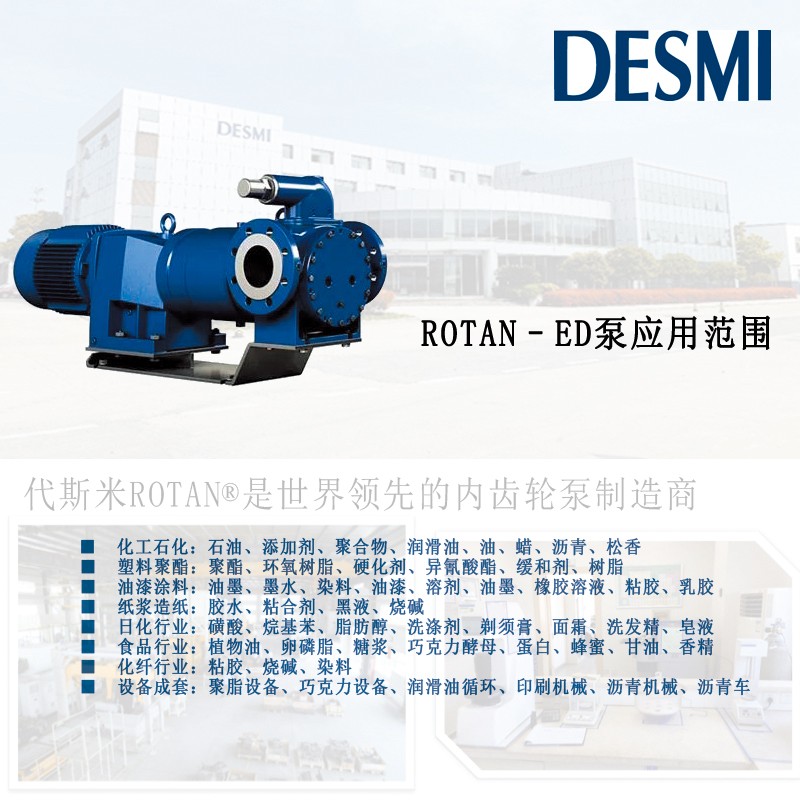

Since Danish imported water pumps require very little maintenance, ED pumps are a
fairly economical solution compared to traditional sealed pumps. Especially in applications
where dual mechanical seals are required. Usually, the application conditions of different
working conditions are different, which requires sealing and auxiliary flushing systems,
and requires frequent maintenance or replacement. Therefore, the life cycle cost of ED
pumps is generally much lower than that of dual mechanical seals.
Can provide 90° import and export structure
Performance parameters of water pumps imported from Denmark
Material:
Cast iron, carbon steel or stainless steel
Flow range:
Maximum 90 m3/h / 400 gpm
Speed:
Up to 1750 rpm
Differential pressure:
Up to 16 bar / 250 psi
Self-priming height:
When self-priming, up to 0,5 bar / 15" Hg vacuum
Up to 0,8 bar / 24" Hg vacuum during transport
Viscosity range:
Up to 10,000 cSt
temperature:
Up to 250°C / 500°F
