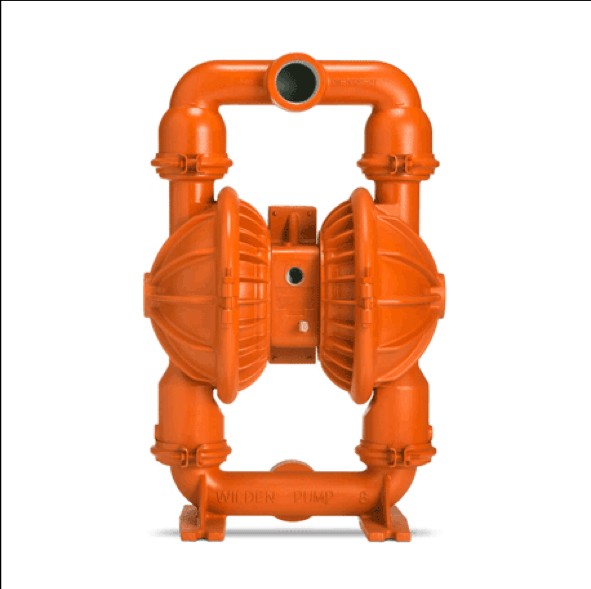

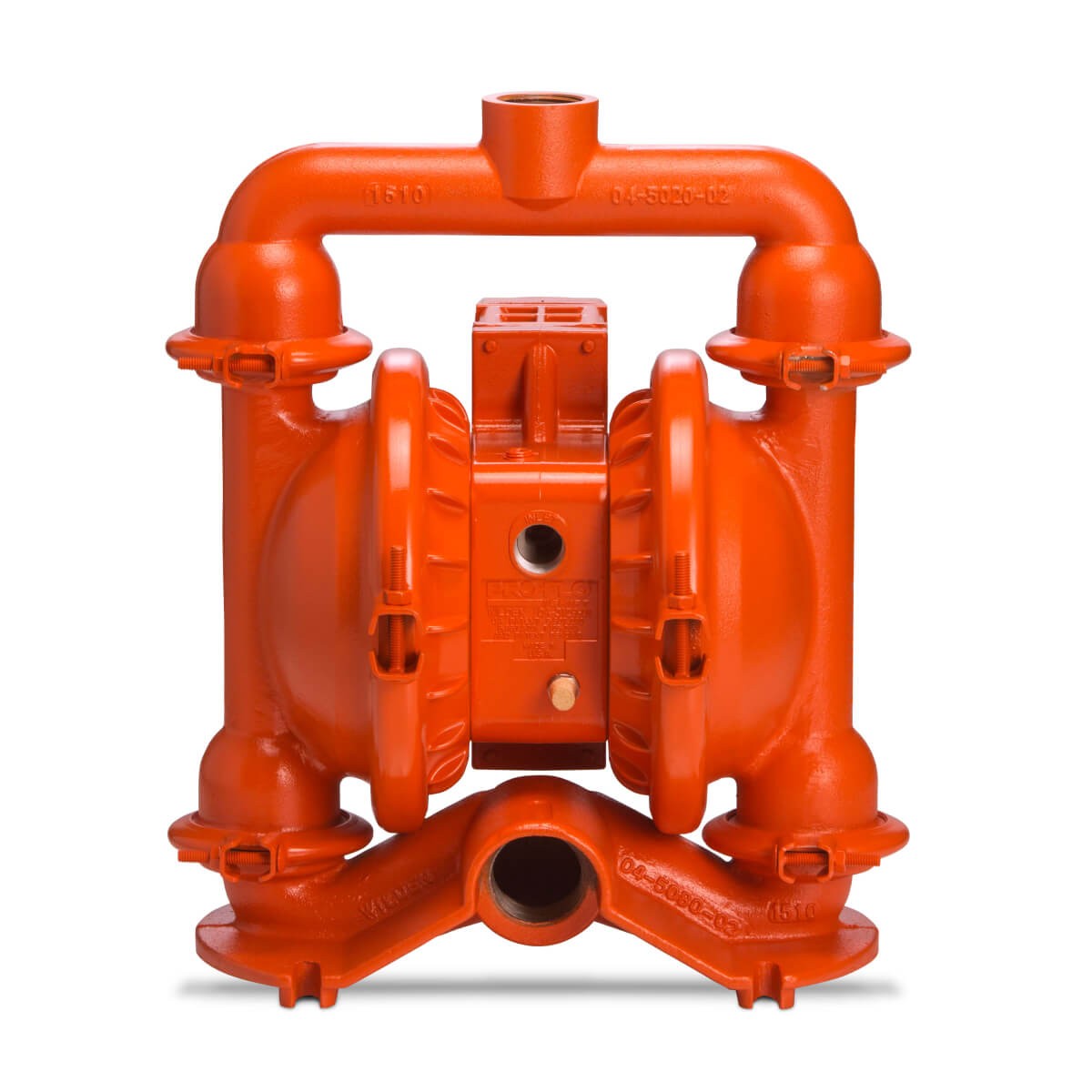

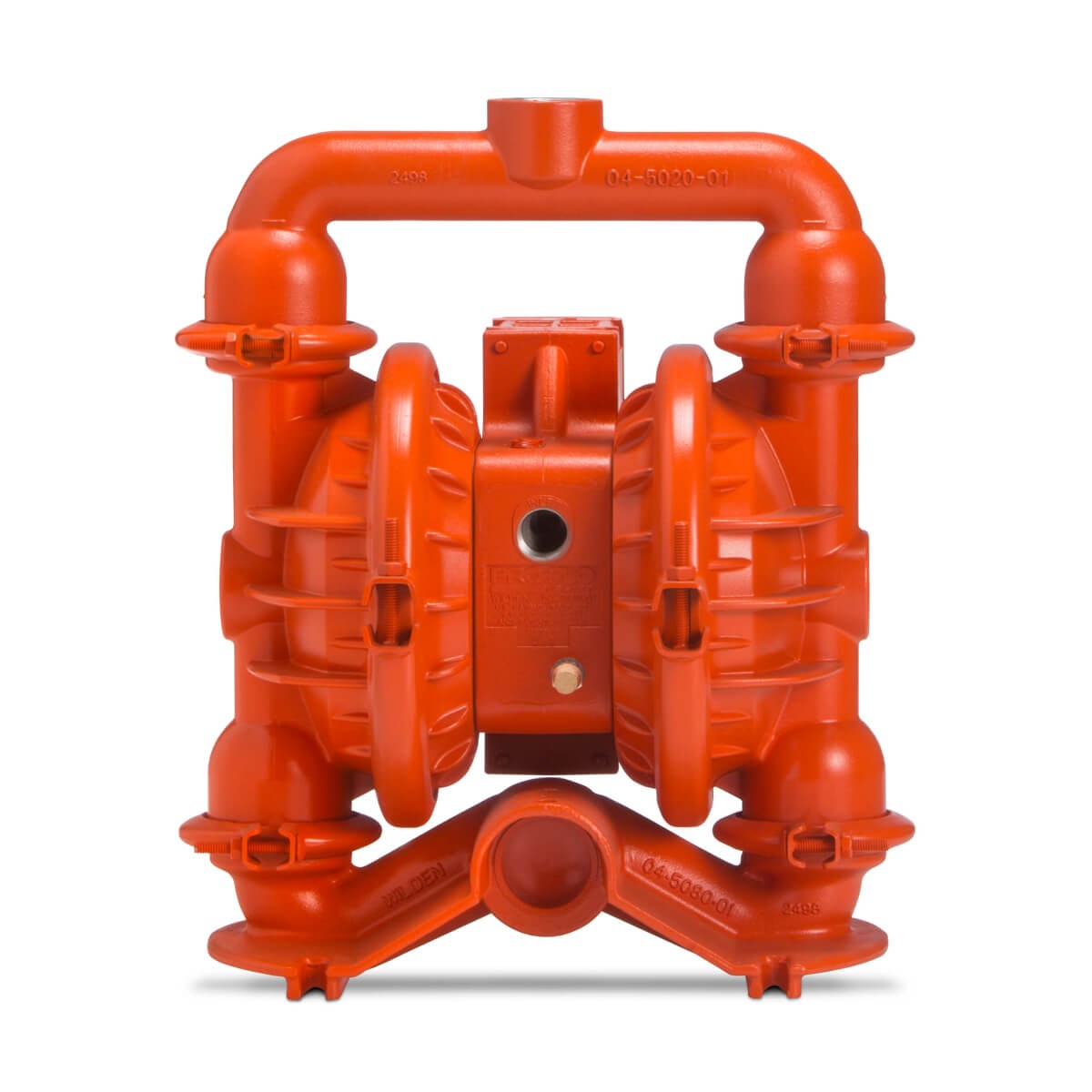

WILDEN   Diaphragm Pump Multi-specimen pneumatic PS15 PS20 Special Chemical Pump

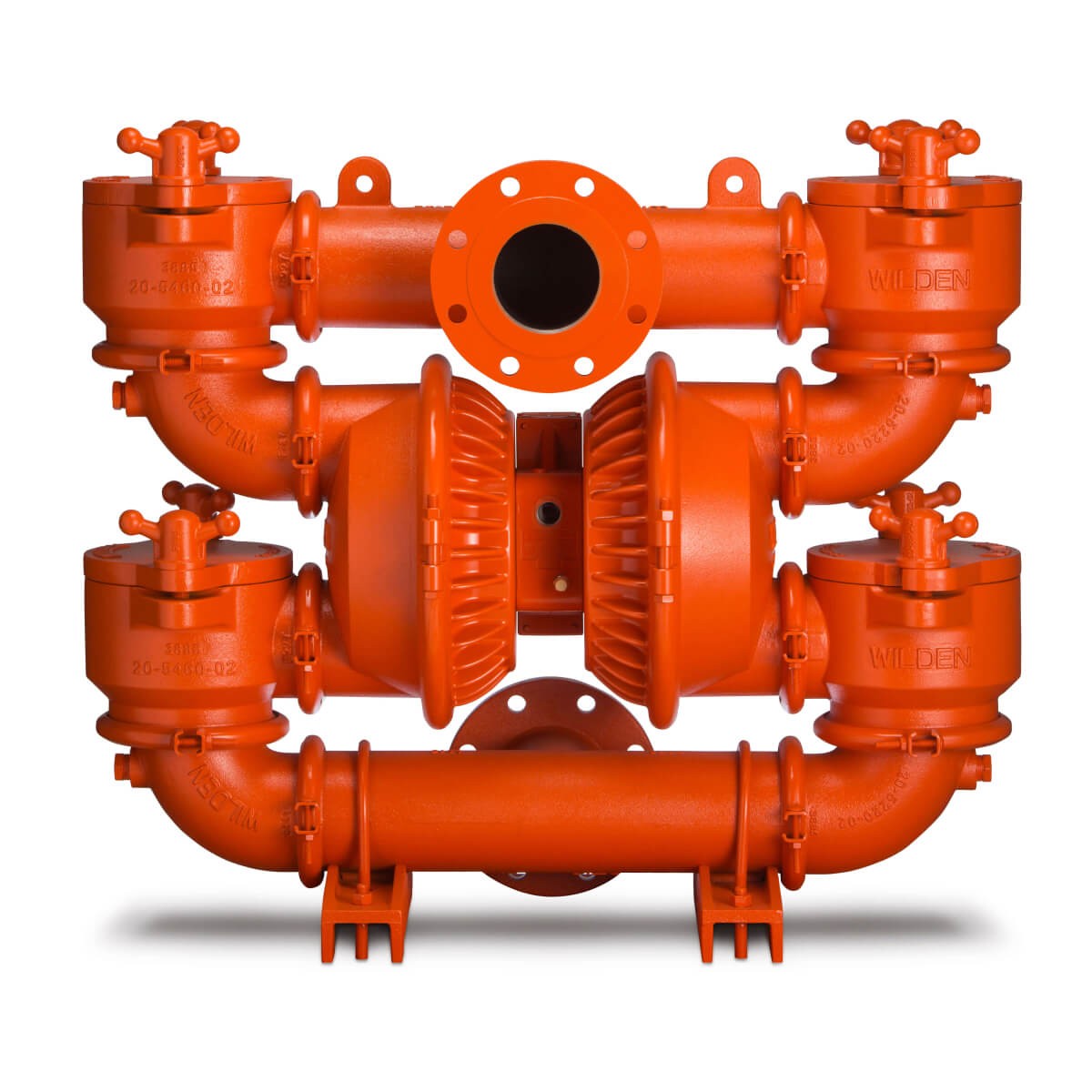

PS20

AIR INLET air inlet

3/4" FNPT

LIQUID INLET Import

102 mm (4")

LIQUID DISCHARGE Export

102 mm (4")

CONNECTION TYPE interface form

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration

Rubber – 4.1 m (13.5') Dry, 8.6 m (28.4') Wet

EZ-Install TPE – 4.4 m (14.4') Dry, 8.6 m (28.4') Wet

Full-Stroke PTFE – 3.8 m (12.7') Dry, 8.6 m (28.4') Wet

MAX FLOW RATE Maximum Traffic

Rubber – 1,048 lpm (277 gpm)

EZ-Install TPE – 1,003 lpm (265 gpm)

Full-Stroke PTFE – 953 lpm (252 gpm)

MAX PRESSURE Maximum Pressure

8.6 bar (125 psi)

MAX DIAMETER SOLIDS Maximum Particle

35 mm (1-3/8")

DISPLACEMENT PER STROKE Displacement per stroke

Rubber – 4.5 L (1.2 gal)

EZ-Install TPE – 4.4 L (1.16 gal)

Full-Stroke PTFE – 4.2 L (1.13 gal)

* 1 cycle = 2 strokes
