Wilden pneumatic diaphragm pump accessories diaphragm code

Pneumatic diaphragm pump is a volume pump powered by compressed air and the volume changes

caused by reciprocating deformation of the diaphragm. Its working principle is similar to that of a plunger pump.

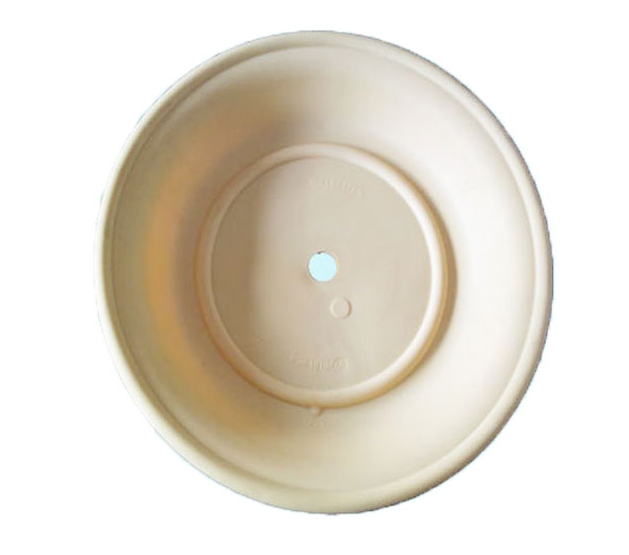

P.025 (1/4 inch) Pump diaphragm: 00-1030-55 Teflon diaphragm

Diaphragm for P1 (1/2 inch) or P100 (1/2 inch) pump:

(01-1010-55 Teflon diaphragm), (011010-50 Polyurethane diaphragm), (01-1010-52 Nitrile diaphragm),

 (01-1010-53 Fluorinated rubber), (01-1010-58 Shandao Rubber WFS).

Diaphragm for P2 (1 inch) or P200 (1 inch) pump:

(02-1010-50 Polyurethane), (02-1010-51 chloroprene diaphragm), (02-1010-52 nitrile diaphragm),

 (02-1010-53 Fluorinated rubber diaphragm), (02-1010-58 Shandao Rubber WFS), (02-1010-55 Teflon diaphragm).

Diaphragm for P4 (1.5 inch) or P400 (1.5 inch) pump:

(04-1010-50 Polyurethane), (04-1010-51 chloroprene diaphragm), (04-1010-52 nitrile diaphragm),

(04-1010-53 Fluorinated rubber diaphragm), (04-1010-58 Shandao Rubber WFS), (04-1010-55 Teflon diaphragm).

Diaphragm for P8 (2 inch) or P800 (2 inch) pump:

(08-1010-50 Polyurethane), (08-1010-51 chloroprene diaphragm), (08-1010-52 nitrile diaphragm),

 (08-1010-53 Fluorinated rubber diaphragm), (08-1010-58 Shandao Rubber WFS), (08-1010-55 Teflon diaphragm).

Diaphragm for P15 (3 inch) or P1500 (3 inch) pump:

(15-1010-50 Polyurethane), (15-1010-51 chloroprene diaphragm), (15-1010-52 nitrile diaphragm),

(15-1010-53 Fluorinated rubber diaphragm), (15-1010-58 Shandao Rubber WFS), (15-1010-55 Teflon diaphragm).
