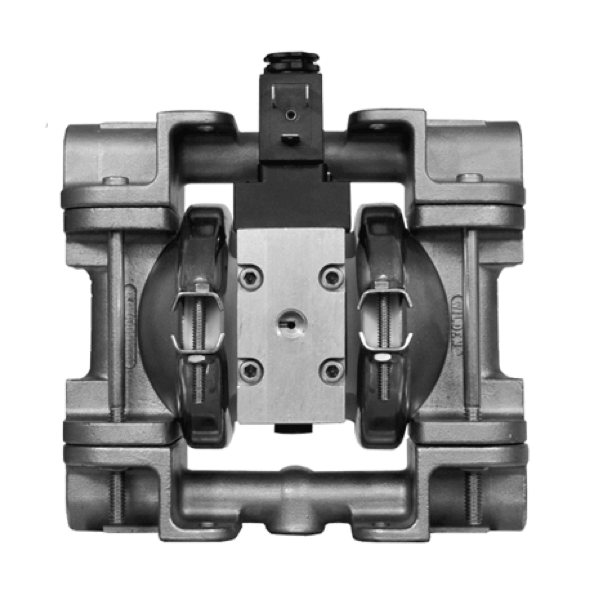

PS1  13 MM (1/2") Wilden Diaphragm Pump CLAMPED METAL PUMP

PS1 Clamp Wilden Pneumatic Diaphragm Pump 13 MM (1/2") PRO-FLO SHIFT CLAMPED METAL PUMP

AIR INLET

1/2" FNPT

LIQUID INLET

13 mm (1/2")

LIQUID DISCHARGE

13 mm (1/2")

CONNECTION TYPE

NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

Rubber – 5.9 m (19.3') Dry, 9.8 m (32.3') Wet

TPE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet

PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet

MAX FLOW RATE

Rubber – 60.2 lpm (15.9 gpm)

TPE – 60.2 lpm (15.9 gpm)

PTFE – 59.8 lpm (15.8 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

1.6 mm (1/16")

DISPLACEMENT PER STROKE * Displacement per stroke

Rubber – 0.10 L (0.026 gal)

TPE – 0.10 L (0.026 gal)

PTFE – 0.10 L (0.026 gal)

* 1 cycle = 2 strokes
