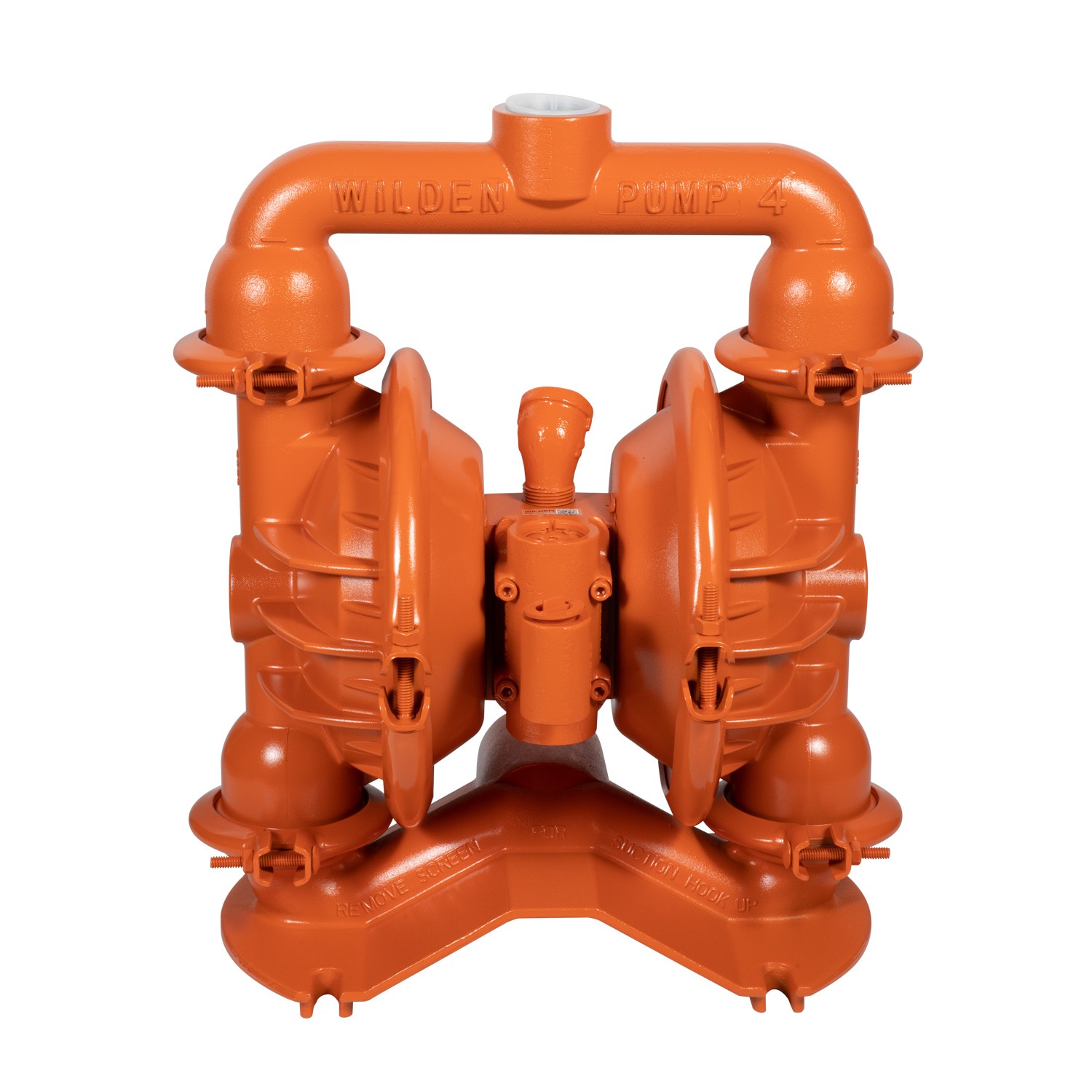

P200/AAPPP/WFS/WF/ATF/0014 Wilden Diaphragm Pump
P200/AAPPP/WFS/WF/ATF/0014 Wilden Diaphragm Pump
P200/AAPPP/WFS/WF/ATF/0014 Wilton Diaphragm Pump Specifications:
Material of liquid contact:
Material of liquid contact
Transport weight
Aluminum alloy
11 kg (24 lbs)
316 stainless steel
21 kg (47 lbs)
Ductile iron.
23 kg (51 lbs)
Elastomer materials: nitrile rubber, ternary rubber, SaniflexT M, neoprene, polyimine ester, Teflon PTFE, fluorinated rubber, Wil-FlexTM
Non-liquid-metal material
Middle part: aluminum alloy, polypropylene, acetal
Air valve: aluminum alloy, polypropylene, acetal
Performance parameters:
Media import size
1” (25 mm)
Media outlet dimensions
1” (25 mm)
Air inlet size
1/4” (6 mm)
Maximum outlet pressure
8.6 Bar (125 psig)
The maximum solid particle diameter can be passed
1/4” (6.4 mm)
Maximum traffic
Rubber/thermoplastic compounds
212 lpm (56 gpm)
Teflon PTFE.
168 lpm (44 gpm)
Maximum suction range
Rubber/thermoplastic compounds
Dry suction 5.4 m (17.6’)
Wet suck 9.3 m (30.6’)
Teflon PTF
Dry suction 3.5 m (11.4’)
Wet suck 9.3 m (30.6’)
