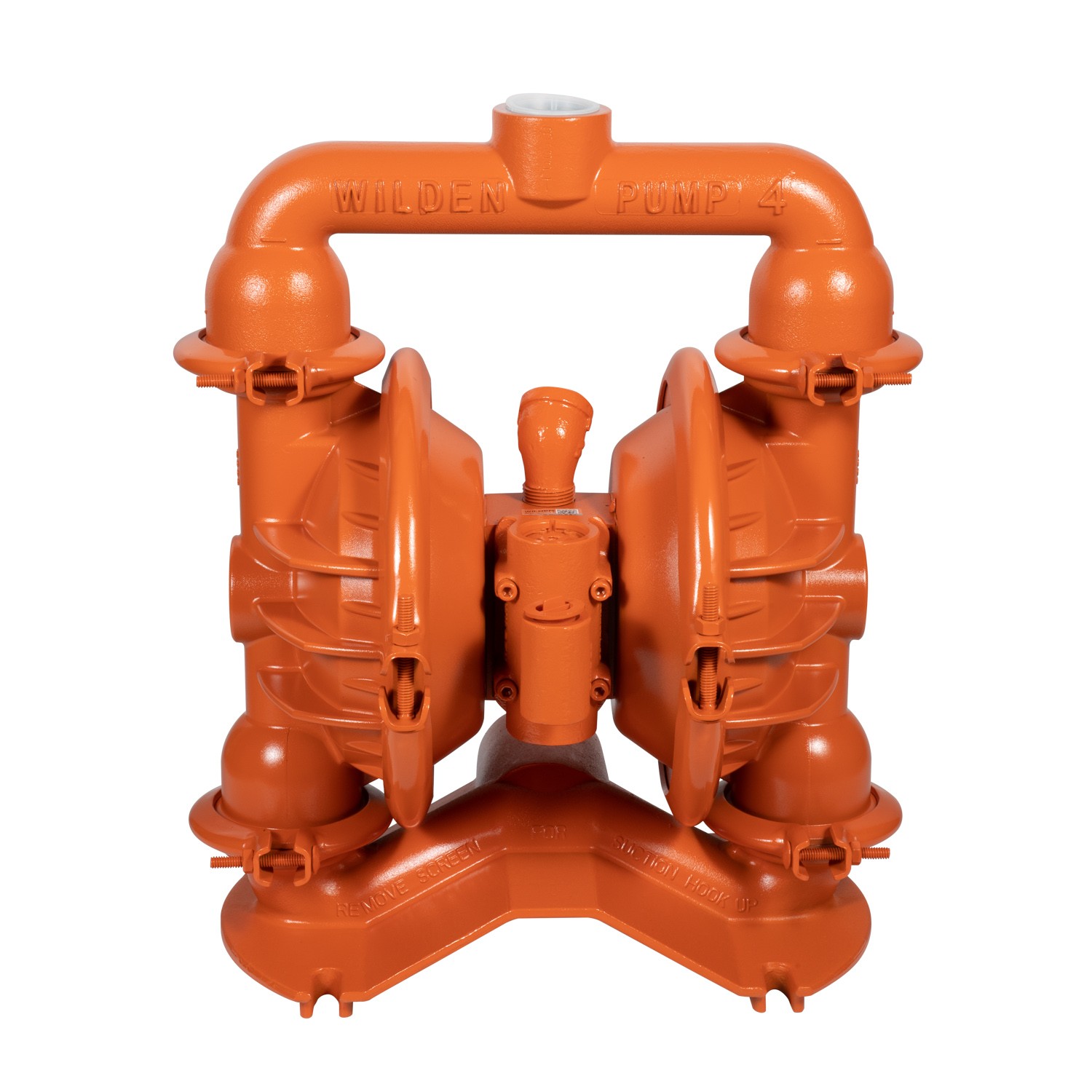

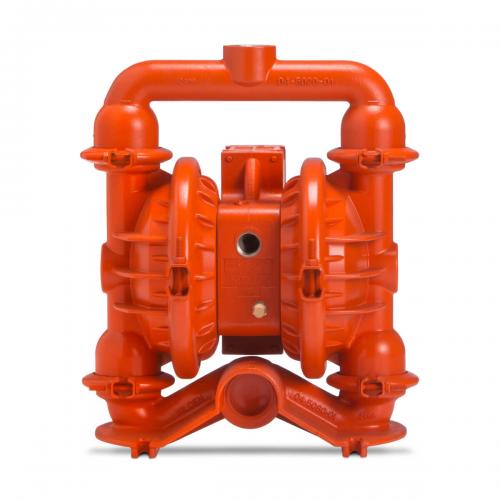

P200/SSPPP/TNU/TF/STF/0014 Wilden Diaphragm Pump

P200/SSPPP/TNU/TF/STF/0014 Wilton Diaphragm Pump Specifications:

Material of liquid contact:

Material of liquid contact

Transport weight

Aluminum alloy

11 kg (24 lbs)

316 stainless steel

21 kg (47 lbs)

Ductile iron.

23 kg (51 lbs)

Elastic material

Nitrile rubber, ternary rubber, SaniflexT M, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM

Non-liquid-metal material

Intermediate part: aluminum alloy, polypropylene, acetal

Air valve: aluminum alloy, polypropylene, acetal

Performance parameters:

Media import size

1” (25 mm)

Media outlet dimensions

1” (25 mm)

Air inlet size

1/4” (6 mm)

Maximum outlet pressure

8.6 Bar (125 psig)

The maximum solid particle diameter can be passed

1/4” (6.4 mm)

Maximum traffic

Rubber/thermoplastic compounds

212 lpm (56 gpm)

Teflon PTFE.

168 lpm (44 gpm)

Maximum suction range

Rubber/thermoplastic compounds

Dry suction 5.4 m (17.6’)

Wet suck 9.3 m (30.6’)

Teflon PTF

Dry suction 3.5 m (11.4’)

Wet suck 9.3 m (30.6’)
