P.025/PPPPP/WFS/TF/KWF 00-9725 AODD Pump WILDEN Polypropylene 1/4" Pro-Flo Clamped
P.025/PPPPP/WFS/TF/KWF 00-9725 AODD Pump WILDEN Polypropylene 1/4" Pro-Flo Clamped
AODD Pump, Polypropylene, 1/4" Pro-Flo®, Clamped, Threaded, w/ Santoprene®
Item: 00-9725
Description: P.025/PPPPP/WFS/TF/KWF
Key Specifications
Discharge Orientation: CENTER SWIVEL
Inlet Orientation: CENTER SWIVEL
Discharge Size (in.): 0.25
Default Max Diameter Solids (in.): 0.02
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 4.8
Max Diameter Solids (in.): 0.02

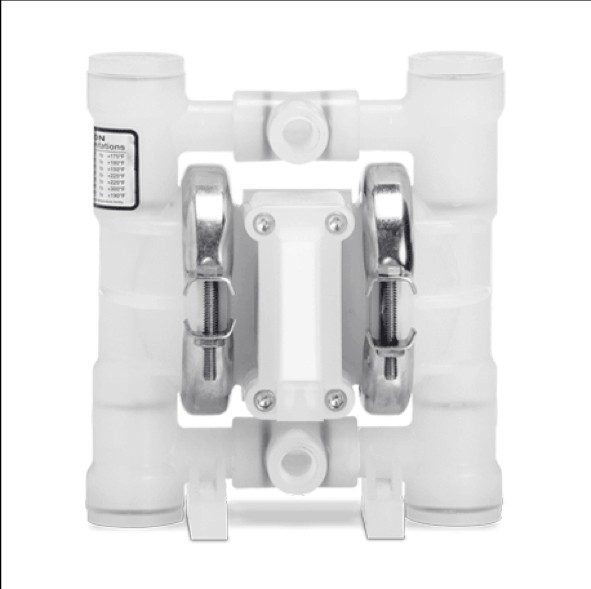

The Wilden® 00-9725, a 0.25" Pro-Flo® clamped AODD pump built from Polypropylene with Santoprene® diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures capability and toughness in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, designed to meet the needs of many industries, from manufacturing to processing and beyond. CE|UKCA certified.
| WILDEN Pump Description | P.025/PPPPP/WFS/TF/KWF |
|---|---|
| Item Number Pump | 00-9725 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Wil-Flex O-Ring |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 3,4 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
