P.025/AZPPP/TNL/TF/ATF 00-9728 AODD Pump, Aluminum, 1/4" Pro-Flo
P.025/AZPPP/TNL/TF/ATF 00-9728 AODD Pump, Aluminum, 1/4" Pro-Flo

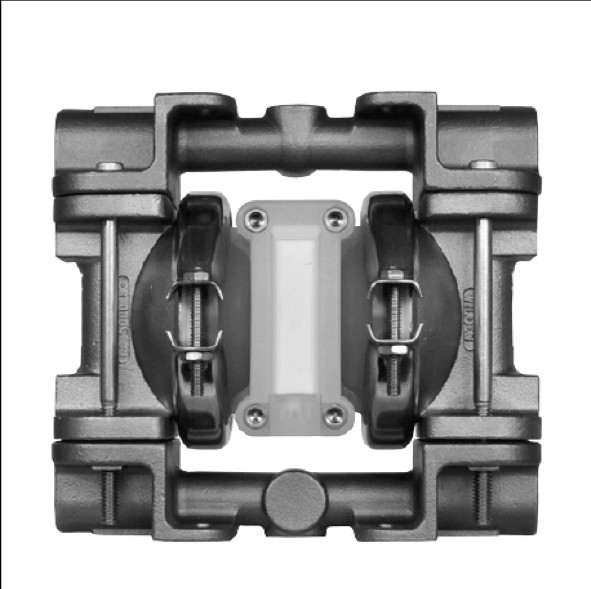

The Wilden® 00-9728, a 0.25" Pro-Flo® clamped AODD pump built from Aluminum with
PTFE|Neoprene diaphragms and PTFE ball valves, delivers up to 5 GPM at 125 PSI across fluid
transfer systems. The PTFE IPD reduced-stroke diaphragm design ensures accuracy and adaptability
in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right
inlet and threaded NPT side-right discharge, suitable for use in industrial facilities, processing plants
and other production settings. CE|UKCA certified.
AODD Pump, Aluminum, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE
Item: 00-9728
Description: P.025/AZPPP/TNL/TF/ATF
Key Specifications
Discharge Orientation: SIDE RIGHT
Inlet Orientation: SIDE RIGHT
Discharge Size (in.): 0.25
Default Max Diameter Solids (in.): 0.02
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 5.0
Max Diameter Solids (in.): 0.02
| WILDEN Pump Description | P.025/AZPPP/TNL/TF/ATF |
|---|---|
| Item Number Pump | 00-9728 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Aluminum |
| Diaphragms | Ptfe, Neoprene Back-Up, O-ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | Aluminum with Teflon O-Ring |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 6,3 |
| Pump Weight Kilo | 2 |
| Specialty Code | #N/A |
