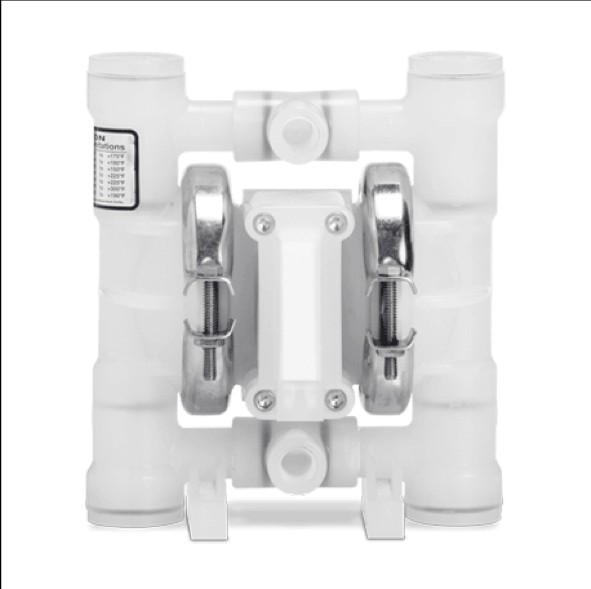

P.025/PPPPP/WFS/TF/KWF  00-9725 AODD Pump WILDEN  Polypropylene 1/4" Pro-Flo Clamped features: corrosion resistance,

high temperature resistance, good stability, no sticking, self-priming Optional elastomer materials: nitrile rubber, neoprene,

EPDM, Wil-Flex, Saniflex, polyurethane, PTFEWILDEN Pump Description

P.025/PPPPP/WFS/TF/PBN

Item Number Pump

00-9617

Port Size

1/4"

Air Kit

NAK

Wet Kit

NME

Air Distribution System

Pro-Flo®

Pump Construction

Polypropylene

Diaphragms

Wil-Flex

Valve/ Balls

Teflon

Valve Seats

PP with Buna-N O-Ring

Outer Piston

Polypropylene

Air Chamber

Polypropylene

Center Block

Polypropylene

Air Valve

Polypropylene

Capacity GPM

4

Capacity Liters/min

18

Pump Weight Lbs

3,4

Pump Weight Kilo

1

Specialty Code

#N/A

Item Overiew for Wilden® 00-9617

The Wilden® 00-9617, a 0.25" Pro-Flo® clamped AODD pump built from Polypropylene with Santoprene® diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures reliablity and reliability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, effective in a broad range of applications across industrial and commercial markets. CE|UKCA certified.
