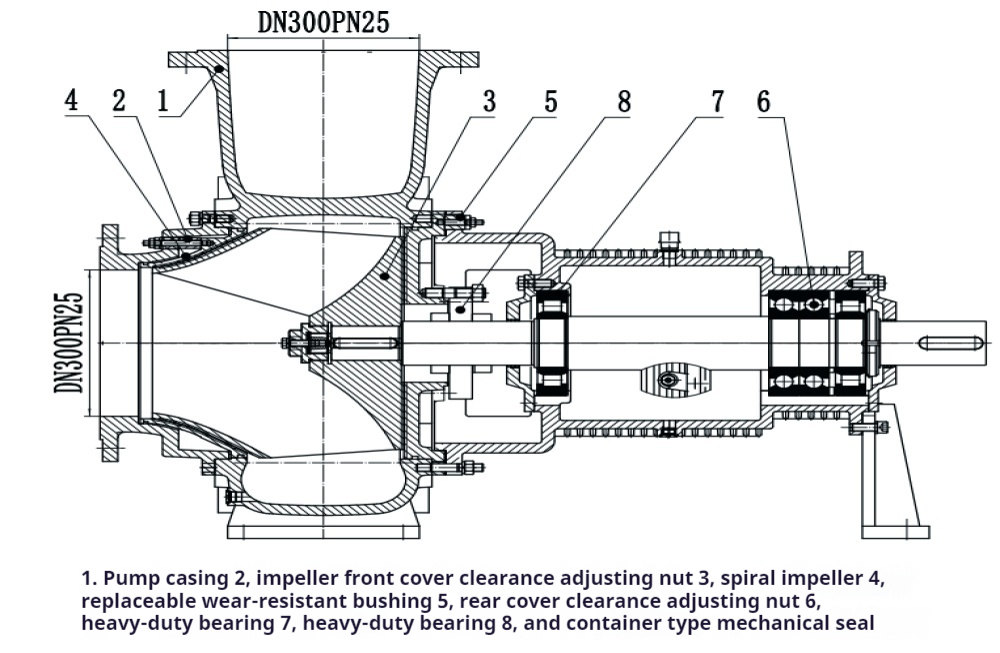

Features of large flow channel spiral centrifugal pump

Pumping of media with high solid content:

It can transport media with higher solid content, such as slurry with solid content up to 20%.

The wear-resistant lining can be replaced, and the impeller clearance is easy to adjust and can be adjusted forward and backward,

making it easier to choose the installation method of the pump.

(1) Replaceable wear-resistant inner village

Hynet spiral centrifugal pumps can be equipped with wear-resistant linings, which is an ideal choice for improving wear resistance.

Even after damage occurs, only one lining needs to be replaced. The cost is only a fraction of the entire volute and it is very easy to

replace the memory without much manpower and material resources.

(2) The impeller clearance is easy to adjust and can be adjusted front and back, making it easier to choose the installation method of

 the pump.

There are three ways.

① Non-adjustable lining: The gap can be easily adjusted by adjusting the gasket.

②) Adjustable lining: The gap between the impeller and the lining can be adjusted through three external adjustment bolts, so that the

 pump can always maintain the efficiency of the new pump during operation.

③ Adjust the gap on the motor side: If the inlet pipeline is fixed, you can adjust the motor side screw to adjust the gap between the

impeller and the lining to maintain high efficiency of the pump.
