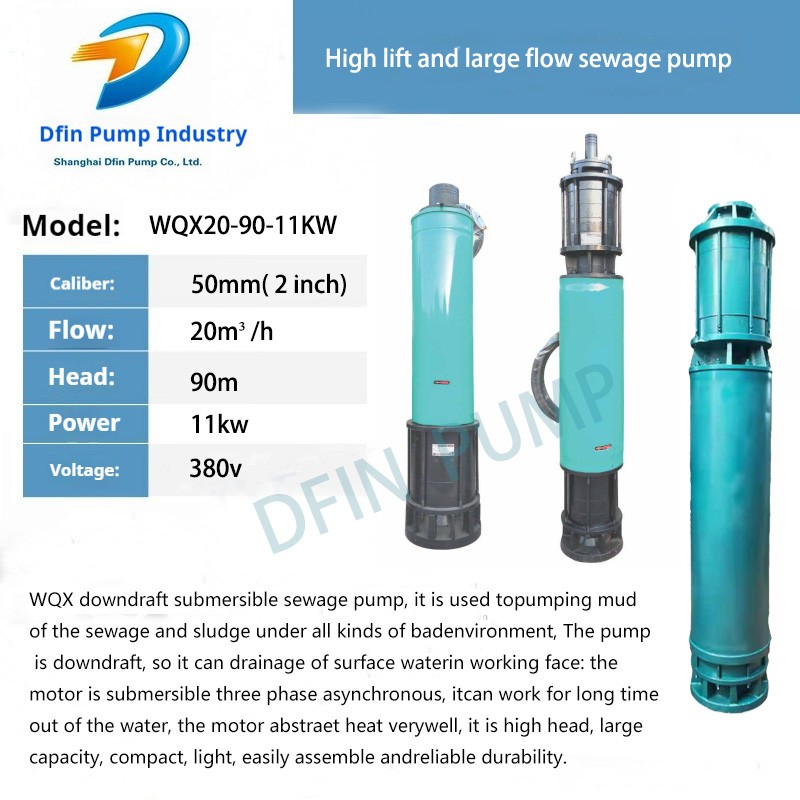

Wqx20-90-11kw Mining Sewage Pump, Disaster Relief, River Drainage, Sedimentation Tank, Large Discharge, High Lift

Submersible pumps are important equipment for pumping water from deep wells. When in use, the entire unit submerses into the water and extracts groundwater to the surface. It is used for domestic water, mine rescue, industrial cooling, farmland irrigation, seawater lifting, ship load regulation, and can also be used for fountain landscapes.

Hot water submersible pumps are used for hot spring bathing, and can also be used to extract groundwater from deep wells, and can also be used in water lifting projects such as rivers, reservoirs, and canals. It is mainly used for farmland irrigation and water for humans and animals in high mountainous areas. It can also be used for central air conditioning cooling, heat pump units, cold pump units, cities, factories, railways, mines, and construction site drainage. The general flow rate can reach 5~650m³/h, and the head can reach 10-550 meters.

Wqx20-90-11kw Mining Sewage Pump, Disaster Relief, River Drainage, Sedimentation Tank, Large Discharge, High Lift is widely used in industry, agriculture, construction, municipal environmental protection and other places. It can pump liquids containing short fibers, paper scraps, sediment and other solid particles, such as mud, mortar, domestic wastewater, sewage, Feces, etc., are water conservancy equipment for agricultural drainage and irrigation, and river and pond dredging.Commonly used models are: WQX6-25-1.1, WQX10-24-1.5, WQX10-34-2.2, WQX10-44-3, WQX12.5-50-4, WQX12.5-60-5.5, WQX15-80/2- 7.5, WQX15-110/3-9.2, WQX15-140/4-11 and other series

WQX high-lift submersible sewage pump Model meaning

Wqx20-80-7.5kw City Flood Control Pump, 12-Inch Flood-Resistant Drainage Self-Priming Pump, High-Lift River Sewage Mixed Flow Pump

Our WQX downdraft submersible sewage pump,it is used topumping mud of the sewage and sludge under all kinds of badenvironment, The pump is downdraft, so it can drainage of surface waterin working face: the motor is submersible three phase asynchronous, itcan work for long time out of the water, the motor abstract heat verywell, it is high head, large capacity, compact, light, easily assemble andreliable durability.

WQX high-lift submersible sewage pump Main Application

This submersible pump are widely used in mine drainagetunnel engineering, coal washing plant sewage circulation, wellflushing, agricultural water irrigation, reservoir water fetching andso on

WQX high-lift submersible sewage pump Structural features

1. The WQ downdraft sewage pump is combined by Submersible three phase asynchronous motor and sewage pump. The motor isconnected with the pump body with a reliable mechanical seal in middle, which can prevent the exchange of the cooling fluid and pumpingfluid, then it can make sure the pump works steadily for long time.




2. The motor winding is made of polyethylenewaterproof nylon sheathed wire. 'The motor cavity and the sealed cavity is filled with No.10mechanical oi or No.25 transformer oil(tillsubmerging the upper bearing when the pump is vertical, no overbrim). The bearing of themotor is centripetal ball, Easy disassembly and assembly, Convenient maintenance

3.  The small low water pump is Centrifugaltype or vortex type,it is used to pumping common sewage, high head drainage in the project; thelarge flow water pump is double channel without cloggingor mixed flow structure.

4. The motor housing is eouipped with a cooling cover, t is built-in structure, and the liouid is discharged through the outer wall of themotor.The motor can be exposed to the surface for a long time.

   WQX high-lift submersible sewage pump Use environment and conditions


1.The rated frequency:50Hz/60Hz, rated voltage: 3ph, 220V380V,440V,660V,1140V+10%.

2.The volumetric ratio of the solids in the Conveying mediumis less than 2%, the maximum density of the conveying medium is1.2*10xkg/m3

3. The PH of the conveying medium is 4-10(The material iscast iron,stainless steel304,316,316)4.The temperature of the conveying medium is less than 40℃(All the pump can be made to high temperature resistant model)

WQX high-lift submersible sewage pump Product model description

If you need more models please contact us
