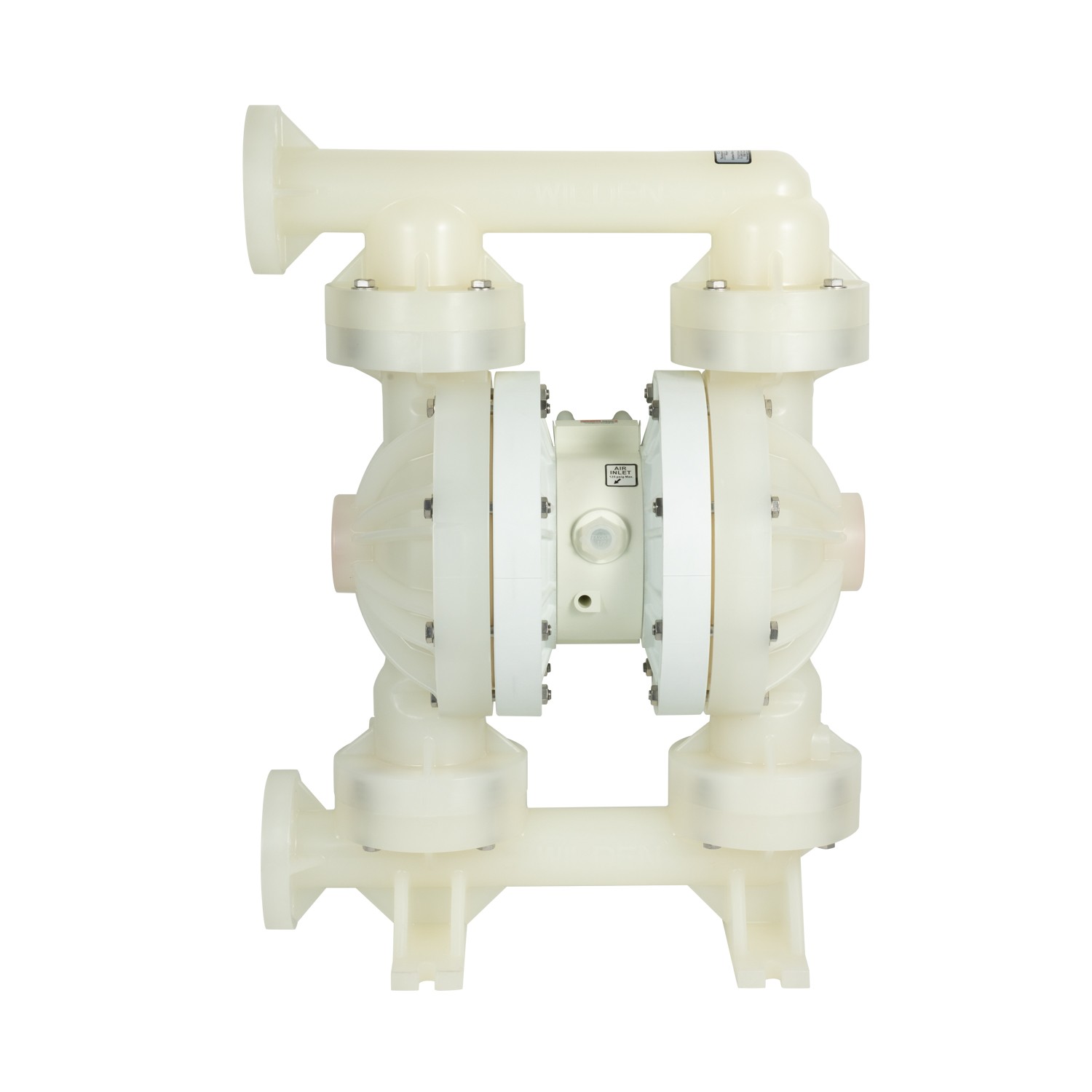

P200/KKPPP/TNU/TF/KTV Wilden Polypropylene Diaphragm Pump

P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump Specifications:

Material of the liquid wet part:

Polypropylene transport weight: 10 kg (22 lbs)

Polyvinylidene fluoride: 15 kg (32 lbs)

Teflon: 18 kg (40 lbs)

P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump Elastomer Material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM

P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump Non-fluidized Part Material:

Middle part: polypropylene

Air valve: polypropylene

P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump Performance Parameters:

Media import dimensions: 1” (25 mm)

Media outlet dimensions: 1” (25 mm)

Air inlet size: 1/4” (6 mm)

Maximum outlet pressure: 8.6 Bar (125 psig)

Maximum solid particle diameter can be passed: 3/16” (4.8 mm)

Maximum flow rate of P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump:

Rubber/thermoplastic compound: 220 lpm (58 gpm)

Teflon PTFE: 174 lpm (46 gpm)

Maximum suction range of P200/KKPPP/TNU/TF/KTV Wilton Diaphragm Pump:

Rubber/thermoplastic compounds: Dry suction 3.6 m (11.9’); Wet suction 9.8 m (32.0’)

Teflon PTFE: Dry suction 2.4 m (7.9’); Wet suction 9.4 m (31.0’)
