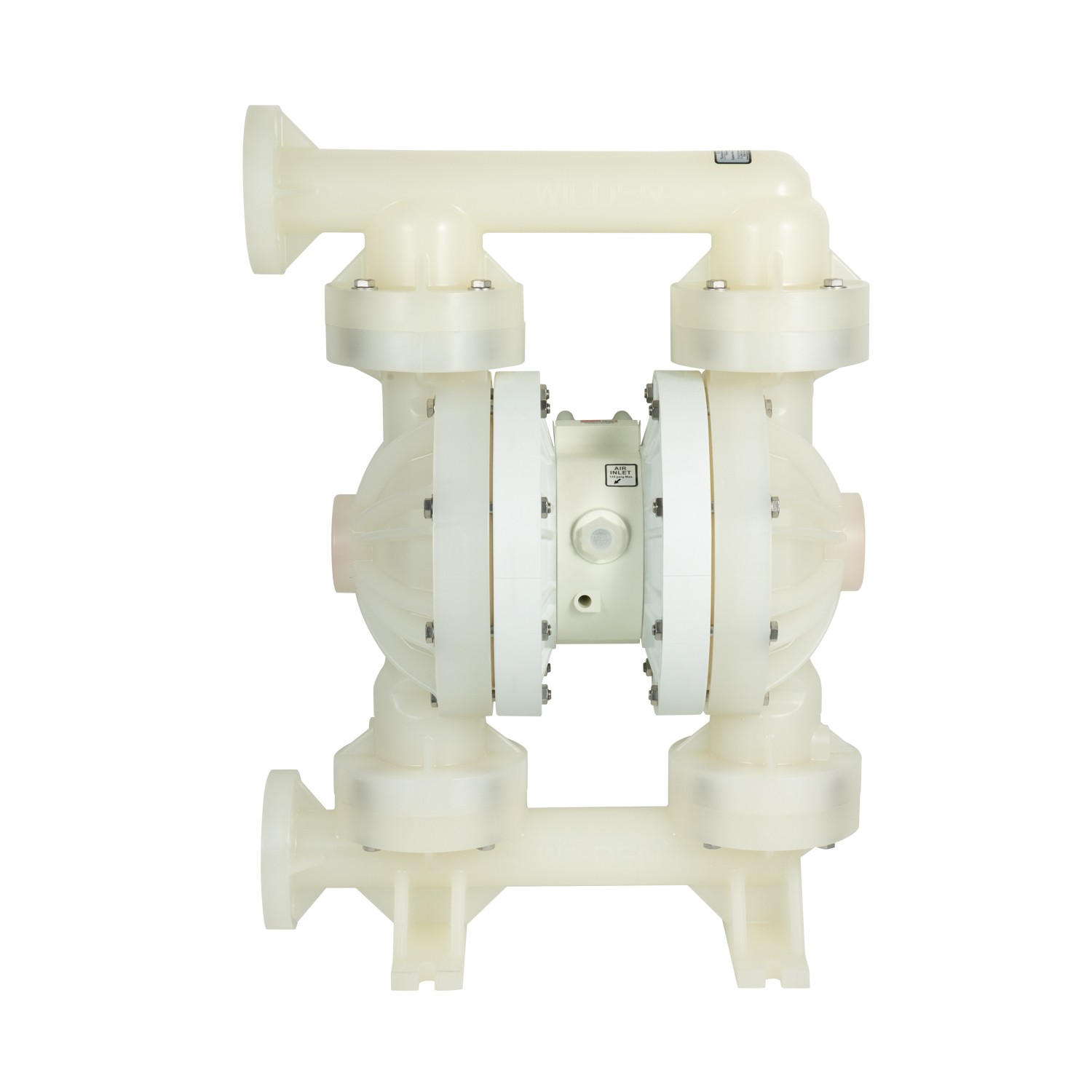

P2/KKPPP/TNU/TF/KTV/0400 Wilden  Polypropylene Diaphragm Pump

P2/KKPPP/TNU/TF/KTV/0400 Wilton Diaphragm Pump Specifications:

Material of liquid contact:

Polypropylene transport weight: 8 kg (18 lbs);

Polyvinylidene Fluoride transport weight: 10 kg (23 lbs).

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Intermediate part: polypropylene, acetal;

Air valve: polypropylene, acetal;

P2/KKPPP/TNU/TF/KTV/0400 Wilton Diaphragm Pump Performance Parameters:

Media import dimensions: 1” (25 mm)

Media outlet dimensions: 1” (25 mm)

Air inlet size: 1/4” (6 mm)

Maximum outlet pressure: 8.6 Bar (125 psig)

Maximum solid particle diameter can be passed: 1/8” (3.2 mm)

Maximum flow rate: Rubber/thermoplastic compound: 140 lpm (37 gpm)

Teflon PTFE: 132 lpm (35 gpm)

Maximum suction range: Rubber/thermoplastic compounds: dry suction 5.5 m (18.0’), wet suction 8.8 m (29.0’)

Teflon PTFE: Dry suction 3.4 m (11.0’), wet suction 8.8 m (29.0’)
