Wilden Pneumatic Diaphragm Pump Tz15/Ssaab/Tnu/TF/Stf/0014

Wilden PS4 Pump  Wilton diaphragm pump diaphragm

WILDEN high-pressure pneumatic diaphragm pump features: Bolt design can be highly leak-proof Sliding seal capability Single-head or double-head positive displacement technology No lubricating oil required for operation

Wilden Pump & Engineering Company of the United States developed the world's first pneumatic diaphragm pump in

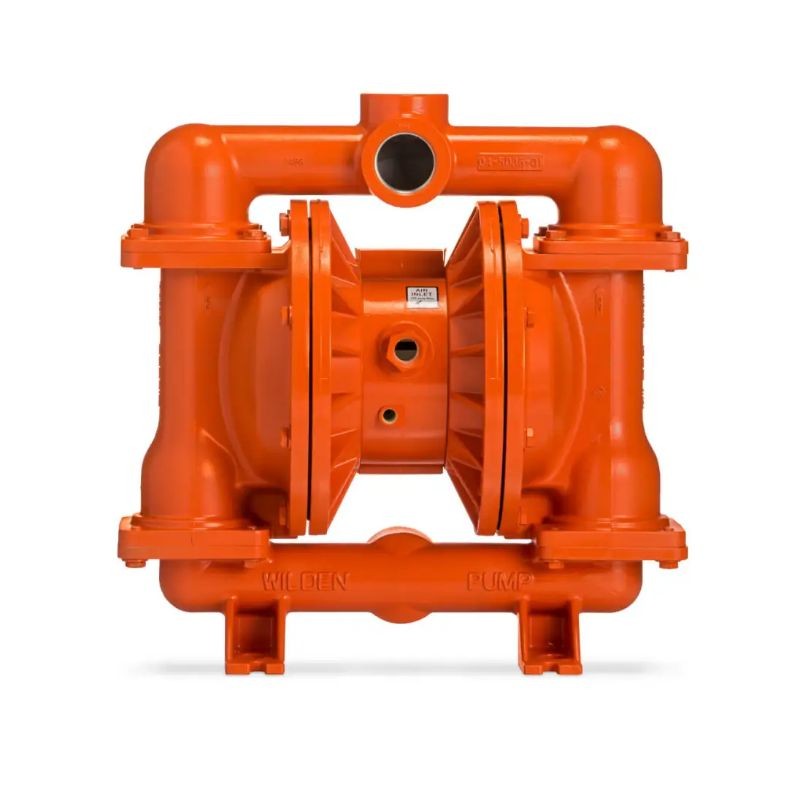

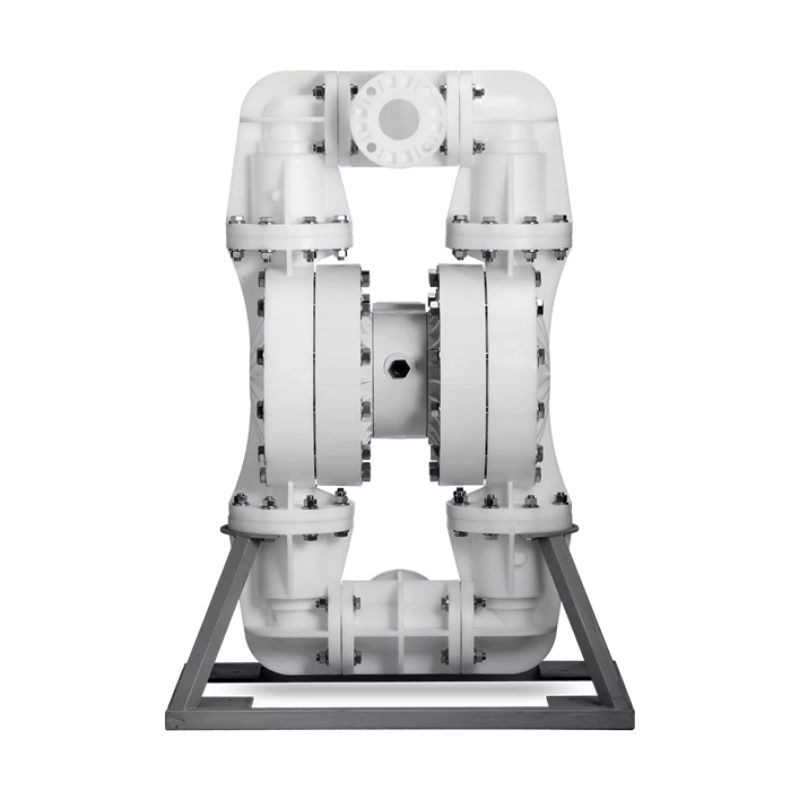

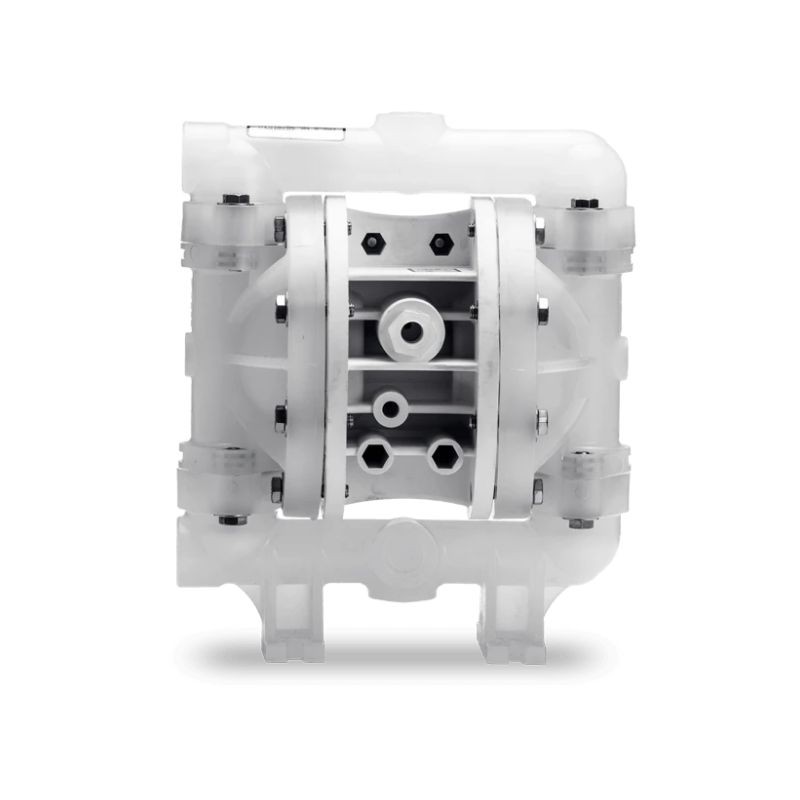

Wilden pneumatic diaphragm pump TZ15/SSAAB/TNU/TF/STF/0014

Maximum flow: 359 LPM (95 GPM)

Maximum air inlet pressure: 8.6 BAR (125 PSI)

Maximum outlet pressure: 17.2 BAR (250 PSI)

Wetted part structural material: ductile iron

Maximum self-priming capacity (dry suction): 3.6 m (12')

Maximum diameter of solid particles that can pass through: 1.27 mm (1/20") high-pressure pump

 Aluminum Air Valve Assembly Fit for Wilden PS4 Pump  Wilton diaphragm pump diaphragm technical data:

Optional materials include aluminum, ductile iron, stainless steel and alloy C

Dimensions: 6 mm (1/4") to 51 mm (2")

Wetted part type: BSPT (NPT) or DIN (ANSI)

Elastomers withstand temperatures up to 176.7° C (350° F)

Optional elastomer materials: Wil-Flex?, polyurethane

Maximum outlet/inlet pressure ratio: 26:1

 Aluminum Air Valve Assembly Fit for Wilden PS4 Pump  Wilton diaphragm pump diaphragm performance data:

Maximum flow: 360 lpm (95 gpm)

Maximum outlet pressure: 20.7 bar (300 psi)

Maximum suction distance: wet suction 9.3m (30.6'), dry suction 7.8m (25.5')

Maximum diameter of solid particles that can pass through: 13mm (1/2")

General advantages of pneumatic diaphragm pumps

Pneumatic diaphragm pumps are the fastest-growing conveying machinery product in recent years. They do not use a motor and use air as the source of power. They can be self-priming and submersible, and can transport high-viscosity and high-viscosity liquid media;

The outlet can be opened and closed at any time without fear of clogging. It is currently the most popular environmentally friendly and energy-saving product on the market.

1. No motor is needed, air is used as the source of power through the air compressor, there is no spark, it can run dry, it can start working by self-priming, no complicated control is required, the operation is simple, and it can self-prime at a height of 6 meters;

2. Liquid media with different characteristics such as strong acid, strong alkali, and strong organic solvent can be transported by selecting the material of the pump shell and diaphragm;

3. No dynamic seal, no pollution to materials, low shear force, not easy to damage the material structure;

4. It is submersible, movable, easy to transport, and can be used as a mobile pump;

5. No rotating parts, no mechanical bearings, no connectors, low maintenance costs;

6. The conveying speed can be changed by changing the air volume;

7. The conveying head can be changed by changing the pressure;

8. It can transport high-thickness and high-viscosity liquid media;

9. The outlet can be opened and closed at any time without fear of blockage;

10. Automatic pressure balance (no pressure relief valve required)
