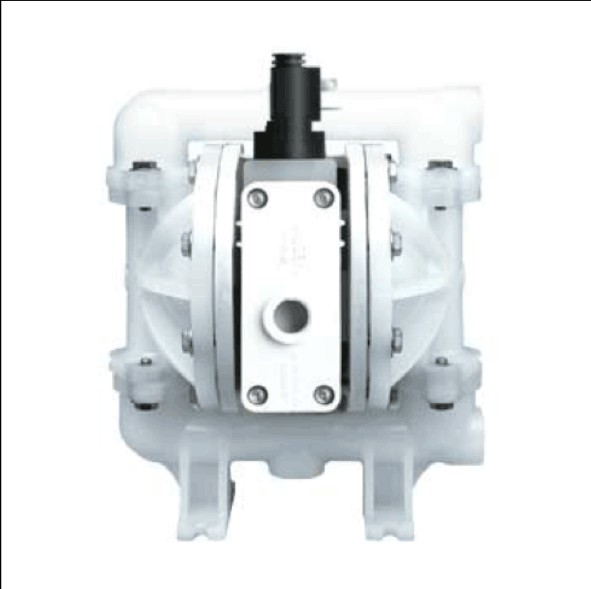

A100P/PPPPP/BNS/BN/PBN/0155 01-9815-52 Wilden Plastic Pneumatic Diaphragm Pump
A100P/PPPPP/BNS/BN/PBN/0155 01-9815-52 Wilden Plastic Pneumatic Diaphragm Pump
| WILDEN Pump Description | A100P/PPPPP/BNS/BN/PBN/0155 |
|---|---|
| Port Size | 1/2" |
| Air Kit | NAK |
| Wet Kit | 01-9815-52 |
| Air Distribution System | Accu-Flo™ |
| Pump Construction | Polypropylene |
| Diaphragms | Buna-N |

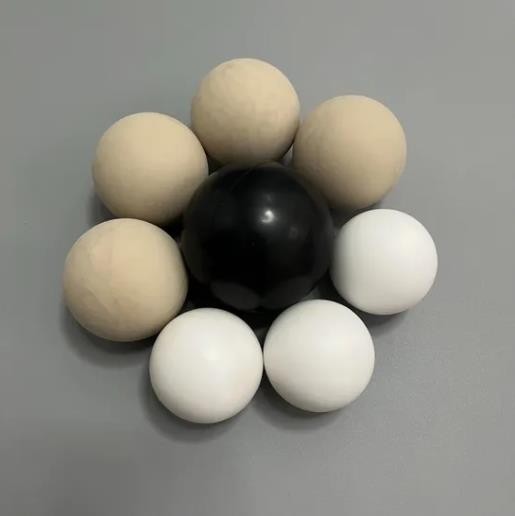

| Valve/ Balls | Buna-N |
| Valve Seats | PP with Buna-N O-Ring |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 10 |
| Capacity Liters/min | 38 |
| Pump Weight Lbs | 8,0 |
| Pump Weight Kilo | 3 |
| Specialty Code | Adapter block, no muffler, Pro-Flo, center section |
There are many models of Wilden diaphragm pumps, mainly including the following categories:
P series: including P025, P1, P2, P4, P8, P15 and other models. The maximum working pressure of these pumps is 8.6Bar, and the shell
material includes aluminum alloy, stainless steel, cast iron, and the diaphragm material is Neoprene, BN Dingling rubber, PTFE Teflon, Wil-Flex rubber
T series: including T1, T2, T4, T8, T15 and other models. The maximum working pressure of these metal pumps is also 8.6Bar, and the
shell is made of aluminum alloy, stainless steel, cast iron
Pro-Flo Series: Includes the Pro-Flo R® Series and the Pro-Flo SHIFT Series. The Pro-Flo R series is known for its excellent design and
reliability, while the Pro-Flo SHIFT series saves up to 60% of energy and increases flow by 34% through advanced air valve design
Special Pumps: Wilton also offers dedicated pumps that are specially designed to improve productivity, efficiency and safety in the segment
EXP Metal Pump: Such as 3" EXP Metal Pump, with large flow and a variety of material options, is suitable for heavy-duty pump solutions,
and its long-life diaphragm can last four times the service life of traditional diaphragms under normal operating conditions
Non-metallic pump: including PD02P-APS-PTA, PD02P-APS-PTT and other models, suitable for different sizes and needs
