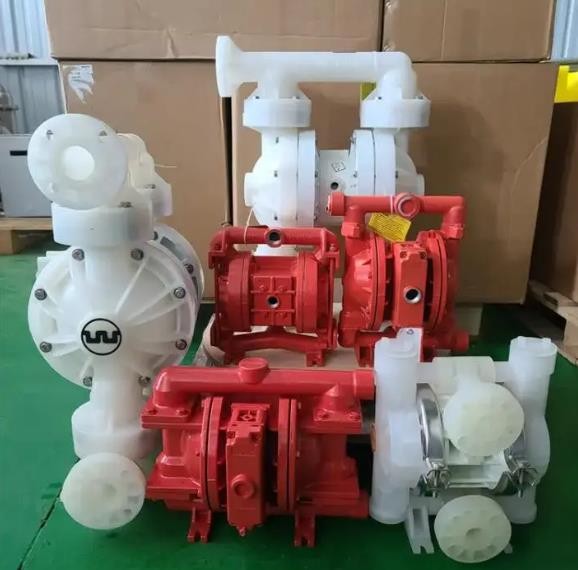

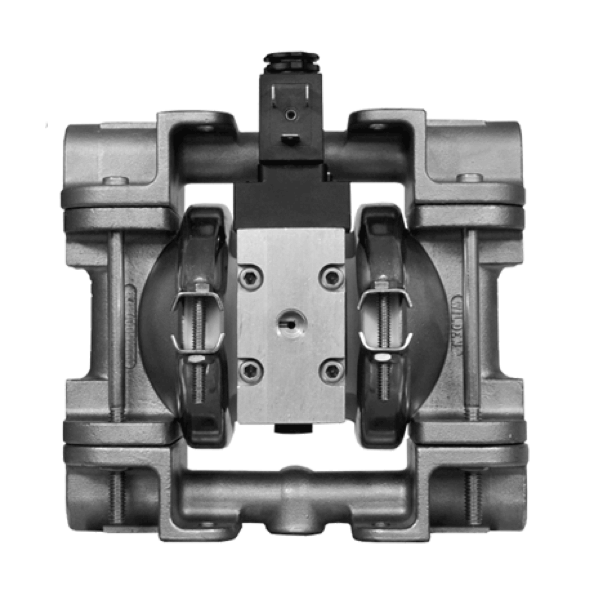

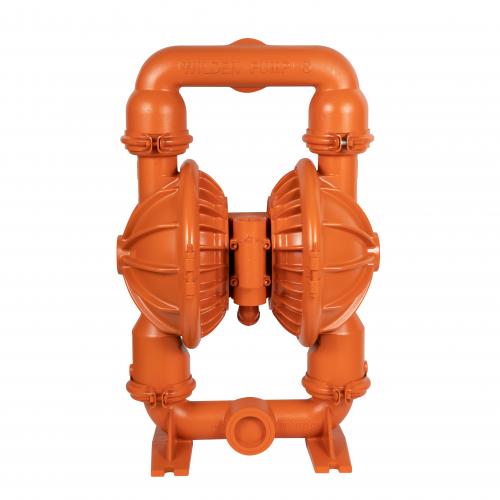

A.025P/KKPPP/WFS/TF/KTV/0151 Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump

A.025P/KKPPP/WFS/TF/KTV/0151  Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump  product features: corrosion resistance, high temperature resistance, good stability, no sticking, self-priming Optional elastomer materials: nitrile rubber, neoprene, EPDM, Wil-Flex, Saniflex, polyurethane, PTFE

INQUIRY

Product Details

Product Tags

A.025P/KKPPP/WFS/TF/KTV/0151 Stainless steel aluminum alloy

pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump

WILDEN Pump Description	A.025P/KKPPP/WFS/TF/KTV/0151
Port Size	1/4"
Air Kit	NAK
Wet Kit	NME
Air Distribution System	Accu-Flo™
Pump Construction	Pvdf

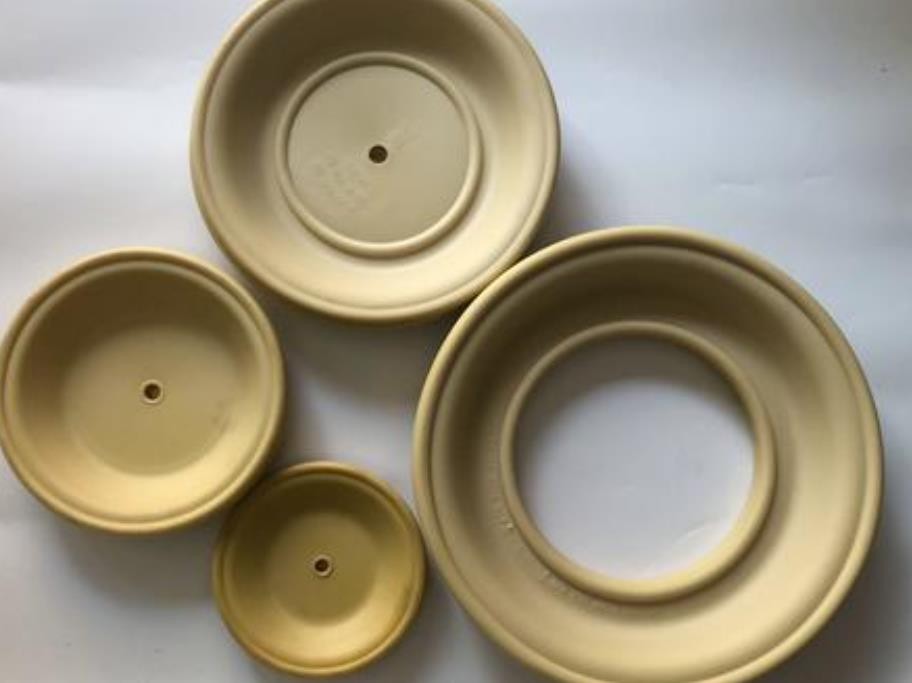

Diaphragms	Wil-Flex

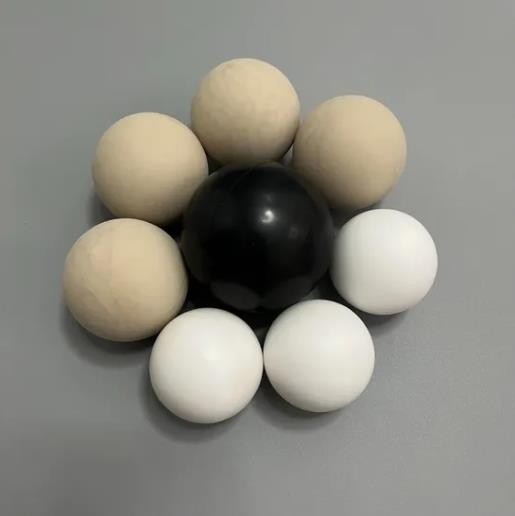

Valve/ Balls	Teflon
Valve Seats	Pvdf with Ptfe Encapsulated Viton
Outer Piston	Pvdf
Air Chamber	Polypropylene
Center Block	Polypropylene
Air Valve	Polypropylene
Capacity GPM	2
Capacity Liters/min	11
Pump Weight Lbs	3,9
Pump Weight Kilo	1
Specialty Code	Adapter block, no muffler, Pro-Flo, center section
