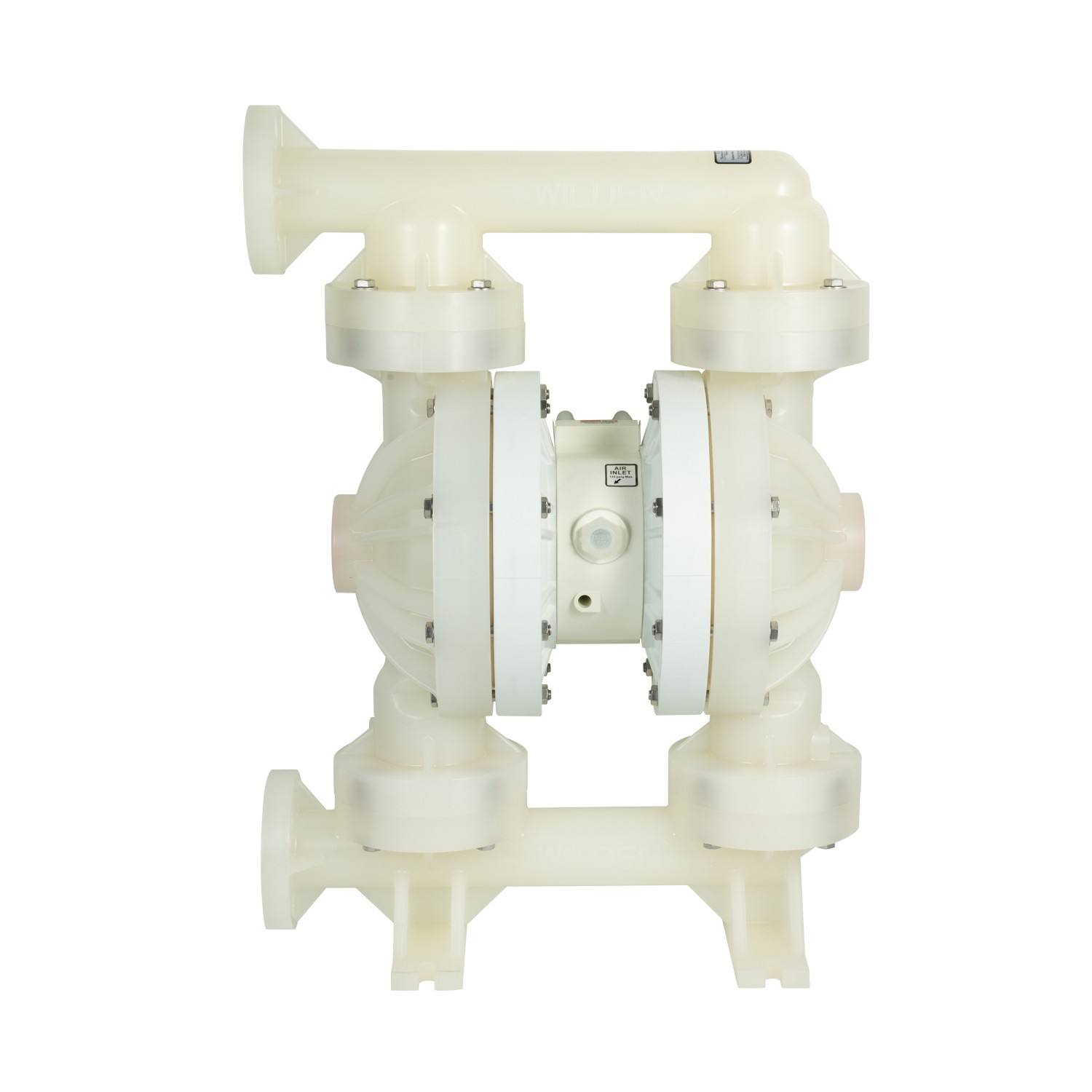

P100/PPPPP/TNU/TF/KTV/0014 Wilden  Polypropylene Diaphragm Pump

P100/PPPP/TNU/TF/KTV/0014 Wilton Diaphragm Pump Specifications:

Material of liquid contact:

Polypropylene transport weight: 4 kg (9 lbs);

Polyvinylidene Fluoride transport weight: 5 kg (11 lbs);

Elastomer material:

Nitrile rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM;

Non-liquid-to-liquid material:

Intermediate part: polypropylene;

Air valve: polypropylene;

P100/PPPP/TNU/TF/KTV/0014 Wilton Diaphragm Pump Performance Parameters:

Media import dimensions: 1/2” (13 mm);

Media outlet dimensions: 1/2” (13 mm);

Air inlet size: 1/4” (6 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/16” (1.6mm);

Maximum traffic:

Rubber/thermoplastic compound: 58.7 lpm (15.5 gpm);

Teflon PTFE: 57.0lpm (15.0gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.2 m (17.0’), wet suction 8.7 m (28.4’);

Teflon PTFE: dry suction 4.5 m (14.7’), wet suction 9.3 m (30.6’);
