Q(D)X-S All stainless steel small submersible pump (wire port)
Q(D)X-S All stainless steel small submersible pump (wire port)
Q(D)X-S All stainless steel small submersible pump (wire port)is made of stainless steel precision casting, corrosion-resistant, environmentally friendly, beautiful appearance, small size, and durable.
Q(D)X-S All stainless steel small submersible pump (wire port) Features
1. Use fluoroelastic double-end surface machine sealing and fluoroelastic radial "O" ring sealing to effectively seal and protect liquids with harsh environments.
2. The motor uses vacuum-immersed paint to achieve F-level insulation and has built-in thermal protection device, which greatly extends the service life of the pump.
3. Anti-corrosion cables, tetrafluoro seals, and high-temperature resistant motors can be customized according to customer's special requirements.
(Solve the use environment where the liquid temperature is ≤100℃).
4. Stainless steel closed stamping welding impeller is adopted, which greatly improves the head.
Q(D)X-S All stainless steel small submersible pump (wire port) Main uses
Suitable for general corrosive media such as industrial and mining enterprises, food industry, seawater aquaculture, landscape engineering, deep well water extraction, chemical electroplating, farmland irrigation and other general corrosive media.
Q(D)X-S All stainless steel small submersible pump (wire port) Conditions of use
1. The center of the impeller shall prevail, and the depth of diving into the water shall not exceed 5m;
2. The temperature of the conveying medium is not higher than +40℃;
3. PH values of the conveying medium are 304 (4-10), 316 (2-13);
4. The kinetic viscosity of the conveying medium is 7x10^-7-23×10^-6㎡/s.
Q(D)X-S All stainless steel small submersible pump Performance parameters
| Model | Flow | Head | Power | Voltage | Diameter | Current |
| m3/h | m | kw | V | mm | A | |
| QDX1.5-12-0.25 | 1.5 | 12 | 0.25 | 220 | 25 | 2.1 |
| QDX1.5-17-0.37 | 1.5 | 17 | 0.37 | 220 | 25 | 2.87 |
| QDX1.5-25-0.55 | 1.5 | 25 | 0.55 | 220 | 25 | 4.07 |
| QDX3-18-0.55 | 3 | 18 | 0.55 | 220 | 32 | 4.07 |
| QDX10-12-0.55 | 10 | 12 | 0.55 | 220 | 38 | 4.07 |
| QDX15-7-0.55 | 15 | 7 | 0.55 | 220 | 51 | 4.07 |
| QDX1.5-32-0.75 | 1.5 | 32 | 0.75 | 220 | 25 | 5.24 |
| QX1.5-32-0.75 | 1.5 | 32 | 0.75 | 380 | 25 | 5.24 |
| QDX3-24-0.75 | 3 | 24 | 0.75 | 220 | 32 | 5.24 |
| QDX8-18-0.75 | 8 | 18 | 0.75 | 220 | 38 | 5.24 |
| QX8-18-0.75 | 8 | 18 | 0.75 | 380 | 38 | 1.99 |
| QDX10-16-0.75 | 10 | 16 | 0.75 | 220 | 51 | 5.24 |
| QDX15-10-0.75 | 15 | 10 | 0.75 | 220 | 64 | 5.24 |
| QX15-10-0.75 | 15 | 10 | 0.75 | 380 | 64 | 1.99 |
| QDX25-6-0.75 | 25 | 6 | 0.75 | 220 | 76 | 5.24 |
| QX25-6-0.75 | 25 | 6 | 0.75 | 380 | 76 | 1.99 |
| QDX40-6-1.1 | 40 | 6 | 1.1 | 220 | 76 | 7.02 |
| QDX15-14-1.1 | 15 | 14 | 1.1 | 220 | 64 | 7.02 |
| QDX3-30-1.1 | 3 | 30 | 1.1 | 220 | 25 | 7.02 |
| QX3-30-1.1 | 3 | 30 | 1.1 | 380 | 25 | 2.74 |
| QX40-6-1.1 | 40 | 6 | 1.1 | 380 | 76 | 2.74 |
| QX15-14-1.1 | 15 | 14 | 1.1 | 380 | 64 | 2.74 |
| QX6-25-1.1 | 6 | 25 | 1.1 | 380 | 51 | 2.74 |
| QX25-12-1.5 | 25 | 12 | 1.5 | 380 | 64 | 3.58 |
| QX40-9-1.5 | 40 | 9 | 1.5 | 380 | 76 | 3.58 |

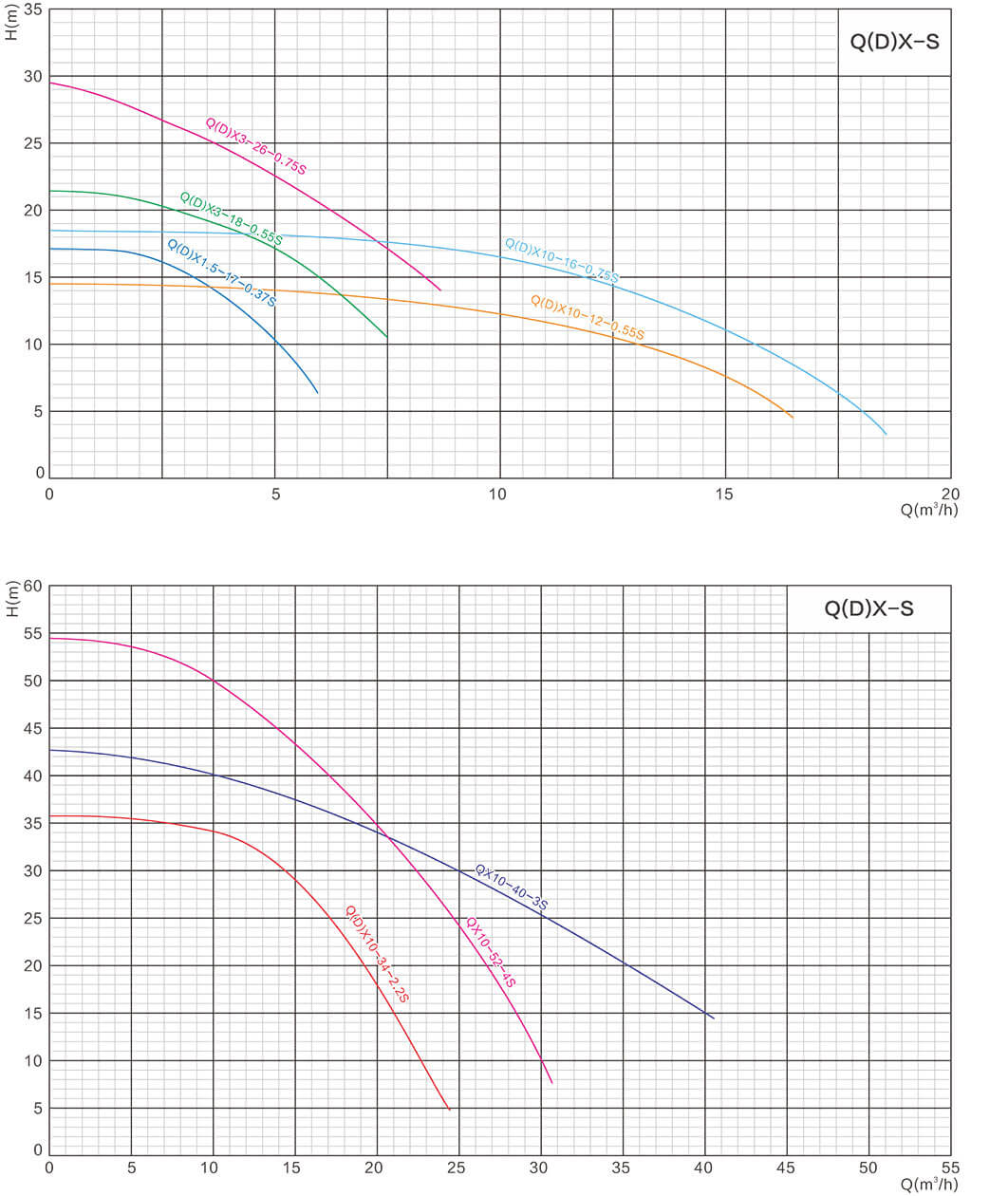

Q(D)X-S All stainless steel small submersible pump Curve graph
