MP type magnetic circulation pump Model meaning

MP type magnetic circulation pump The magnetic drive circulation pump operates because the connecting shaft and impeller are equipped with

magnetic materials to attract and couple to each other. There is no need for a traditional mechanical shaft seal, so it is completely sealed. The

rotational torque of the motor drives the blades to operate through the attraction of the active magnet and the driven magnet.

MP type magnetic circulation pump The biggest disadvantage of the commonly used magnetic drive pumps today is that they are absolutely

forbidden to operate when there is a lack of fluid, otherwise the whole machine will be destroyed, adding unnecessary trouble and annoyance

to the user. It uses a specially designed specially formulated ceramic as the bearing, which has extremely strong wear resistance and corrosion

resistance, ensuring its advanced performance and quality safety. The drive circulation pump generally adopts a shaft seal-less design, which

completely avoids the defects of corrosion and contamination caused by liquid leakage in traditional mechanical shaft seal pumps. It is an ideal

liquid transfer pump for industrial equipment.

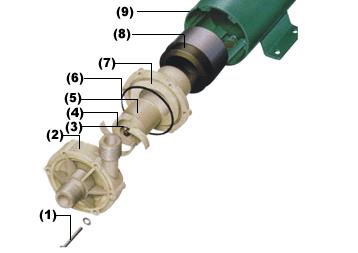

MP type magnetic circulation pumpParts

1. Fixing screws and washers

2. Pump shell

3. Pump shaft

4. Impeller

5. Passive magnet

6. Seal ring

7. Isolation sleeve

8. Active magnet

9. Motor

MP type magnetic circulation pump Material

Stainless steel

Reinforced polypropylene

Alumina ceramic

Reinforced polypropylene

Strontium Ferrite

Fluorine rubber

Reinforced polypropylene

Strontium Ferrite

Working purpose of MP type magnetic drive circulation pump

Chemical industry: Sodium carbonate chemical industry (production of hydrochloric acid, hydrofluoric acid, secondary chemicals); production

of fluoride and chemical fertilizers; gas absorption tower reaction liquid circulation; oil refining (sulfuric acid); recovery and regeneration of waste

acids Systems; transport of strong acids between chemical plants and transport vehicles.

Pharmaceutical industry: Production of luminescent chemicals (EL) for semiconductors, pesticides, pharmaceuticals, and water treatment chemicals

Electroplating industry: Circulating and filtering various electroplating solutions.

Photography industry: ready-made photographic systems; development of X-rays, black and white, color, and three-dimensional photographs.

Electrical appliance industry: production of electrolytic capacitors (etching of aluminum films); transport of electrolytes during the manufacturing

process of dry batteries and storage batteries; etching of circuit boards; transport of high-purity chemical liquids during the production of semiconductors.

Metal industry: Alumina film treatment equipment; degreasing and pickling in wire drawing and steel rolling; degreasing and pickling before vehicle

painting; production of titanium oxide and rare earth elements, etc.

Mining: metal smelting (transporting and circulating electrolyte); washing and treatment of waste liquid.

Food industry: production of gluconic acid (hydrochloric acid); refining of cooking oil (sulfuric acid); canned fruit industry (hydrochloric acid).

Medical: Artificial kidneys, heart and lungs, ultrasonic cleaning machines and various medical equipment.

Water treatment: cleaning ion exchange resin; pure water production equipment; seawater desalination equipment.

Pollution control: Adding sewage treatment chemicals to the liquid tank; collecting and transporting waste liquid; waste gas absorption equipment

(deodorization device, desulfurization before discharging waste gas).

Others: Used in silver recycling, wafer manufacturing, experimental factories, refrigerators, beverage machines, domestic boilers, heat exchangers,

solar systems, bleaching and dyeing, laser systems and other fields, and recycled in fountains, fish ponds, and ornamental fish tanks.

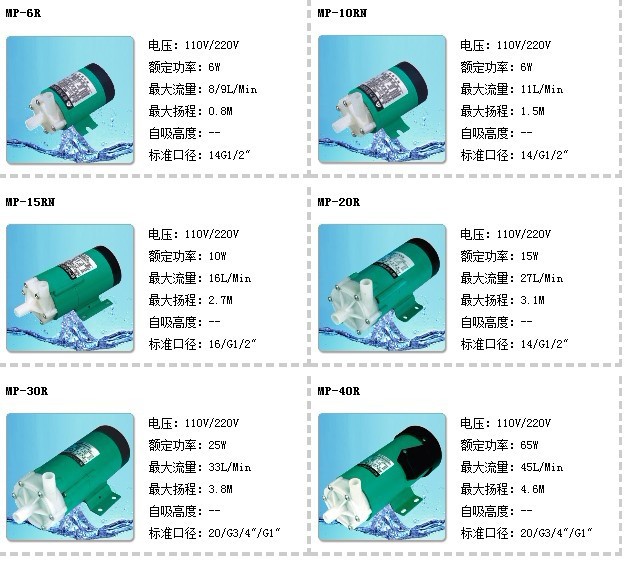

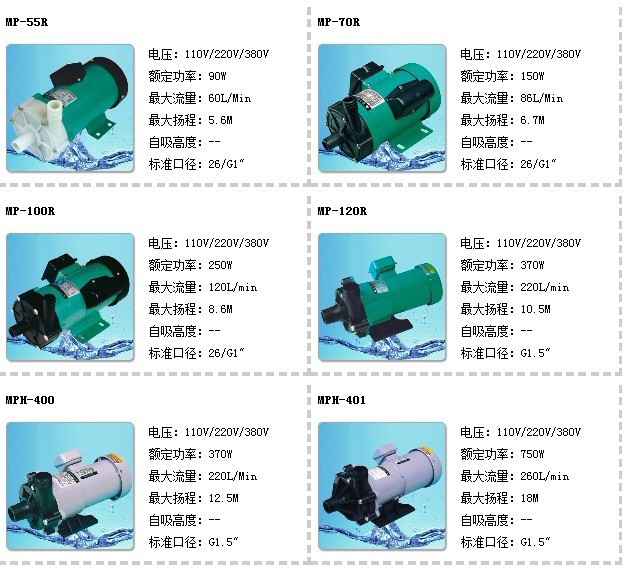

MP type magnetic circulation pump Specifications

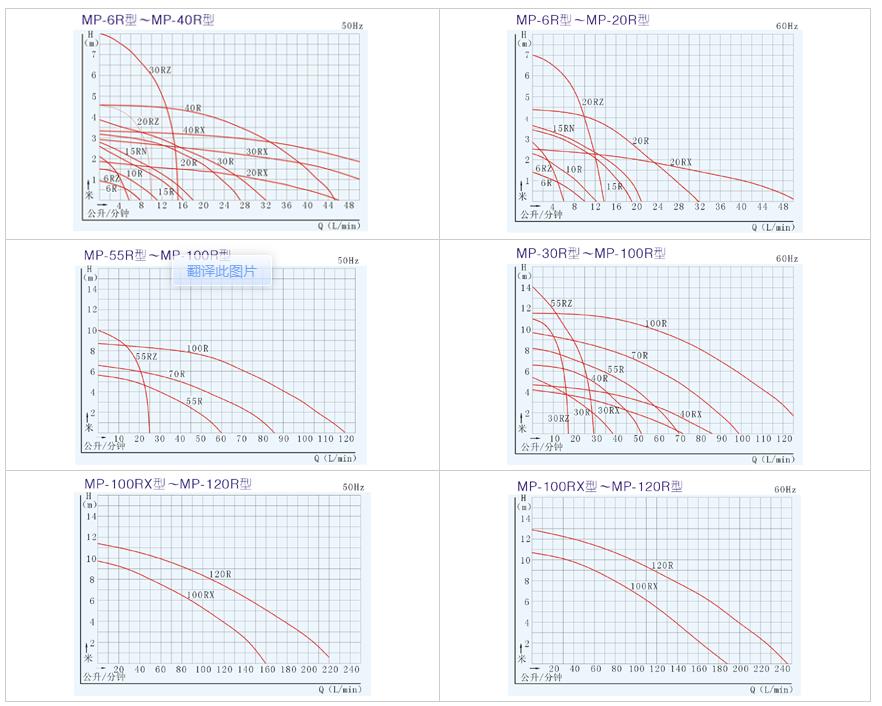

MP type magnetic circulation pump Performance curve
