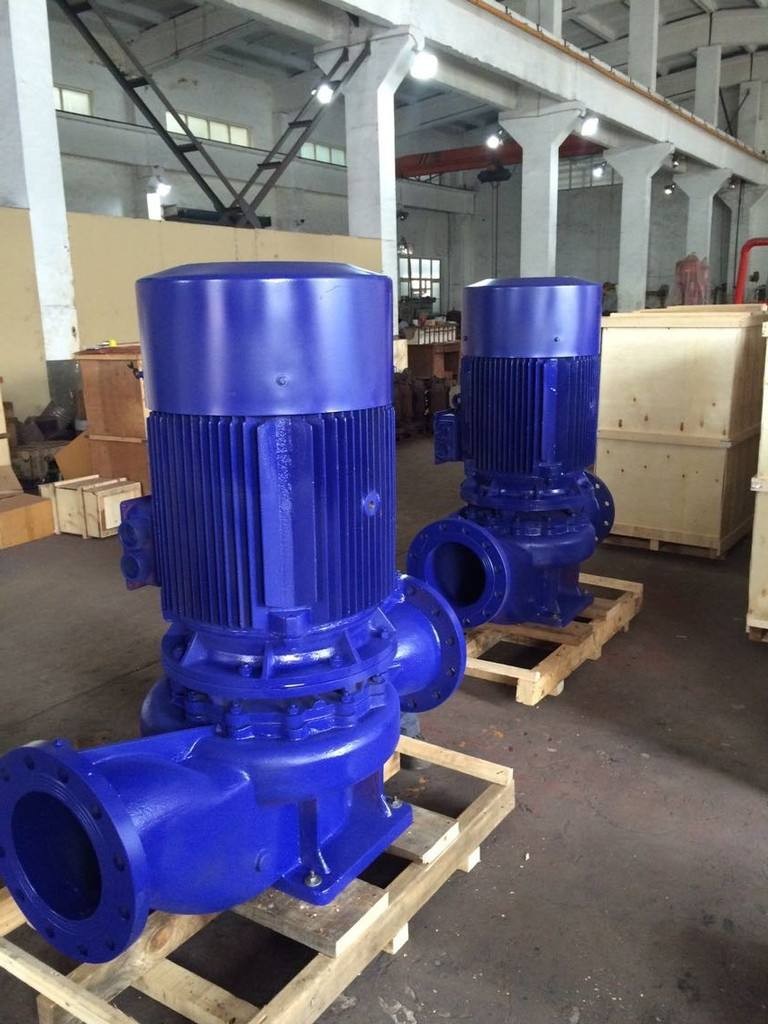

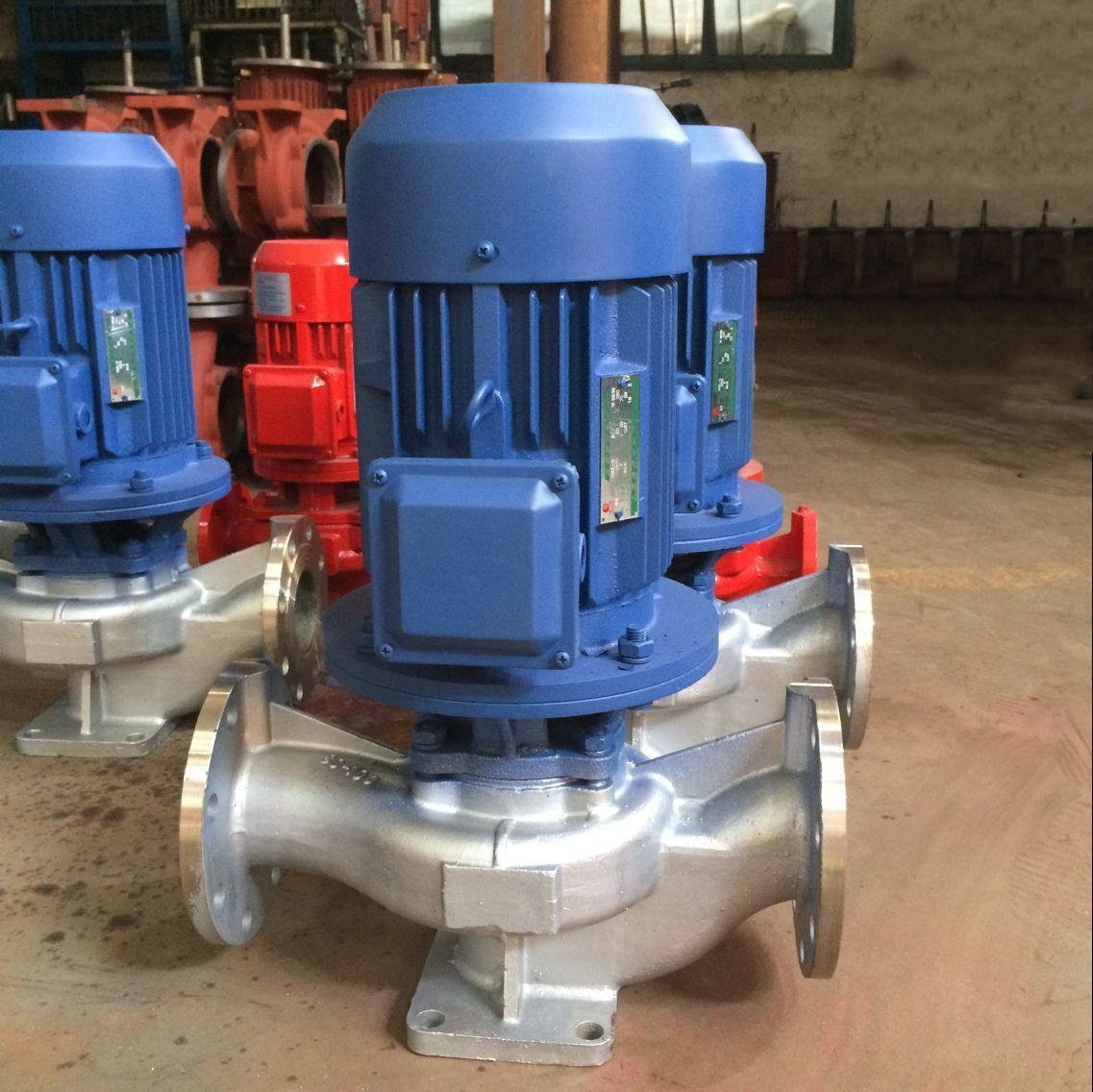

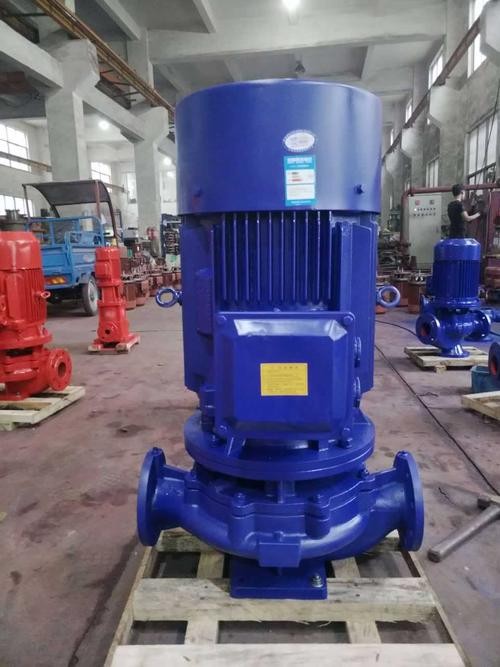

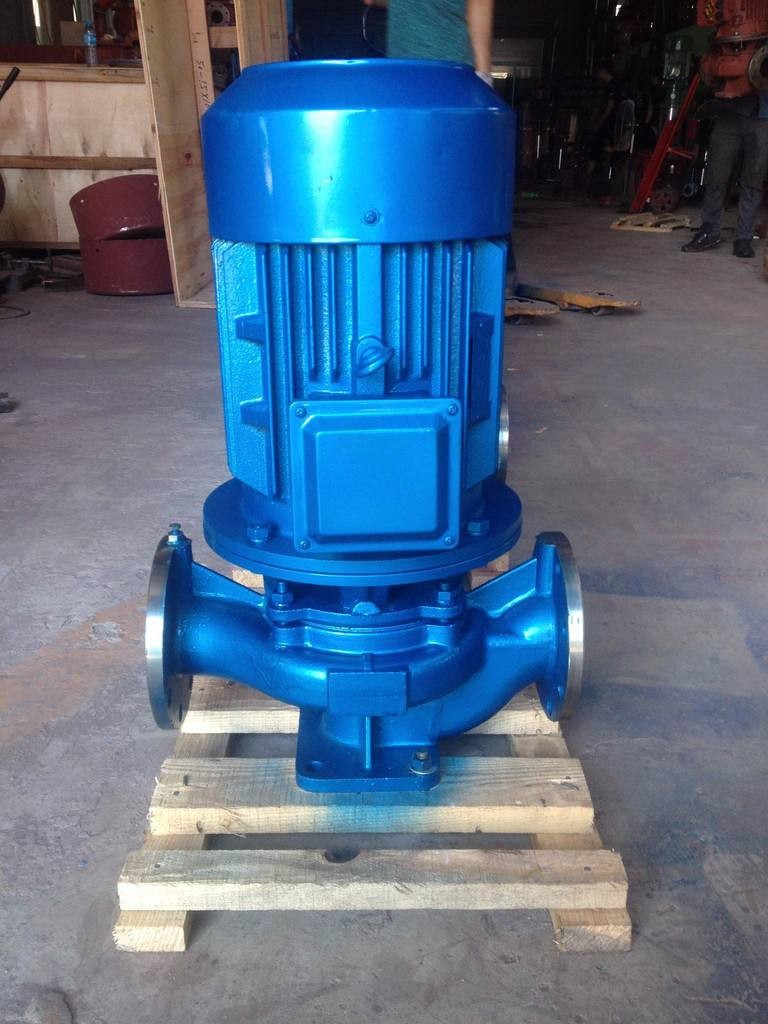

The GW pipe non-blocking sewage pump adopts an impeller structure and a new type of mechanical seal, which can well transport solid materials and long fibers. Compared with the traditional impeller, the impeller of this pump adopts the form of single flow channel or double flow channel. It is similar to an elbow with the same cross-section size and has good flow performance. It is equipped with a reasonable volute, making the pump have an impeller After dynamic and static balance tests, the pump has no vibration during operation. Commonly used models are: GW50-20-7-0.75, GW25-8-22-1.1, GW50-10-10-0.75, GW50-20-15-1.5, GW50-15-25-2.2, GW50-18-30- 3. GW50-40-15-4, GW50-20-40-7.5, GW65-37-13-3, GW80-40-7-2.2, GW80-43-13-3, GW80-40-15-4, GW80-65-25-7.5, GW100-80-10-4, GW100-100-15-7.5, GW100-80-20-7.5, GW100-100-30-15, GW100-100-35-18.5, GW150- 145-9-7.5, GW150-180-15-15 and other series


GW pipeline non-clogging sewage pump model meaning

Model: 100GW100-15-7.5

100 represents the discharge diameter of the pump (mm)

GW stands for pipeline sewage pump

100 represents the pump flow rate 100 (L/S)

15 represents the Yang Cheng of the pump 15 (m)

7.5 represents the pump motor power of 7.5 (KW).


Features of GW pipeline non-blocking sewage pump

1. The pump and motor are directly connected coaxially. It is an electromechanical integration product with compact structure and stable performance.

2. The large flow channel anti-clogging hydraulic component design greatly improves the dirt passing capacity, and can effectively pass through 5 times the fiber material of the pump diameter and solid particles with a diameter of about 50% of the pump diameter.

3. Reasonable design, reasonable matching motor, high efficiency, low noise, and significant energy saving effect.

4. The mechanical seal is made of hard wear-resistant tungsten carbide, which is durable and wear-resistant, allowing the pump to operate safely and continuously for more than 8,000 hours.

5. The pump has a vertical structure, the center lines of the inlet and outlet are on the same horizontal line, and the inlet and outlet flanges have the same specifications, making installation and disassembly very convenient.

6. It occupies a small area and does not need to build a machine room, which can save a lot of infrastructure costs. With a protective cover on the blade end of the motor, the whole machine can be placed outdoors for operation.


Main uses of GW pipeline non-clogging sewage pump:


1. Sewage discharge from hospitals, hotels and high-rise buildings.

2. Discharge of thin mud from municipal projects and construction sites.

3. Wastewater discharge from breeding farms and rural farmland irrigation.

4. It is the water supply device of the water plant.

5. Mine exploration and water treatment equipment matching.

6. Water supply and drainage of water conservancy projects.

7. Wastewater discharge from enterprises and units.

8. Urban sewage treatment plant discharge system.

9. Sewage drainage stations in residential areas.

10. Subway, basement, civil air defense system drainage station.

Conditions for use of GW pipeline non-clogging sewage pump

1. The temperature of the transported medium does not exceed 80 degrees Celsius.

2. The weight of the transported medium is 1~1.3Kg/dm3.

3. The pump is mainly made of cast iron and cannot be used to transport highly corrosive liquids.

4. When the water pump is working, the area around the pump should be well ventilated.

5. 1Cr18Ni9Ti stainless steel material can be used to transport various corrosive liquids.

If users have special requirements, please indicate the relevant conditions of the conveying medium when ordering so that our company can provide more reliable products.


Installation and use of GW pipeline non-clogging sewage pump

1. First check whether the external fasteners have become loose during transportation.

2. Check whether the power supply voltage meets the requirements on the motor nameplate.

3. Turn on the power and make a test run to see if the impeller rotates in the direction indicated on the pump. If the direction is reversed, just swap any two-phase wires in the cable. The test run should not take too long to avoid burning the seal. .

4. Install the pump and start it up. Then install the pump foot screws.


GW pipeline non-clogging sewage pump inspection and maintenance

1. Before using the pump, check the insulation resistance of the motor winding to the casing. If it is lower than 0.5 megohm, the stator must be dried until the insulation resistance rises before use.

2. If the gap between the impeller and the oil seal at the inlet of the pump body exceeds 2mm, the wear-resistant oil seal should be replaced.

3. When the pump seal leaks, the seal should be replaced in time. When replacing, first install the static seal flat and solid, and then install the dynamic seal on the shaft.

4. When replacing the impeller, use a tensioner to pull it out and do not hit it with a hammer to avoid damaging the axis.

Common causes of failure of GW pipeline non-clogging sewage pump

1. No water comes out, the weight and particle size of the pumped liquid are too high; the liquid flow channel is blocked; the impeller turns in the wrong direction; the bar material is pumped into the impeller and is stuck; the pipe outlet height exceeds the rated lift height.

2. Insufficient flow and low head. The voltage is low, the impeller turns in the wrong direction or the wear-resistant seal is worn; the liquid is too heavy and granular.

3. The insulation resistance is low, the surrounding environment is humid, and the mechanical seal leaks seriously.


Performance parameters of non-clogging sewage pump in GW pipeline

GW   pipeline non-clogging sewage pump modelCaliberFlowLiftSpeedMotor PowerEfficiency
mmm3/hMr/minkw%
GW25-8-22-1.12582229001.145
GW32-12-15-1.132121529001.149
GW40-15-15-1.540151529001.554
GW40-15-30-2.240153029002.254
GW50-20-7-0.755020729000.7551
GW50-10-10-0.7550101029000.7552
GW50-20-15-1.55020152901.553
GW50-15-25-2.250152529002.254
GW50-18-30-35018302900355
GW50-40-15-45040152900455
GW50-25-32-5.550253229005.555
GW50-20-40-7.550502029007.558
GW65-25-15-2.265251529002.250
GW65-37-13-36537132900357
GW65-25-30-46525302900461
GW65-30-40-7.565304029007.556
GW65-35-50-1165355029001145
GW65-35-60-1565356029001565
GW80-60-13-5.580601329005.567
GW80-40-7-2.28040714502.259
GW80-43-13-38043132900370
GW80-40-15-48040152900461
GW80-65-25-7.580652529007.563
GW100-80-10-4100100101450465
GW100-110-10-5.51001101014505.565
GW100-100-15-7.51001001514507.568
GW100-80-20-7.5100802014507.565
GW100-100-25-111001002514501170
GW100-100-30-151001003014501565
GW100-100-35-18.510010035145018.568
GW125-130-15-111251301514501172
GW125-130-20-151251302014501575
GW150-145-9-7.5150145914507.576
GW150-180-15-151501801514501569
GW150-180-20-18.515018020145018.572
GW150-180-25-221501802514502278
GW150-130-30-221501303014502278
GW150-180-30-301501803014503078
GW150-200-30-371502003014503773
GW200-300-7-1120030079801166
GW200-250-11-152002501114501564
GW200-250-15-18.520025015145018.573
GW200-400-10-222004001014502275
GW200-400-13-302004001314503076
GW200-300-15-222003001514502276
GW200-250-22-302002502214503071
GW200-350-25-372003502514503771
GW200-400-30-452004003014504574
GW250-600-9-3025060099803078
GW250-600-12-372506001214503776
GW250-600-15-452506001514504573
GW250-600-20-552506002014505573
GW250-600-25-752506002514507571
GW300-800-12-45300800129804574
GW300-480-15-453004801514504566
GW300-800-15-553008001514505573
GW300-600-20-553006002014505573
GW300-800-20-753008002014507575
GW300-950-20-903009502014509076
GW300-1000-25-110300100025145011076
GW300-1100-10-5530011001014505573
GW350-1500-15-903501500157409087
GW350-1200-18-903501200189809085
GW350-1100-28-13235011002898013284
GW350-1000-36-16035010003698016084
GW400-1760-7.5-5540017607.59805583
GW400-1500-10-754001500109807586
GW400-2000-13-11040020001398011084
GW400-2000-15-13240020001598013283
GW400-1700-22-16040017002298016083
GW400-1500-26-16040015002698016084
GW400-1700-30-20040017003098020086
GW400-1800-32-25040018003298025082
GW500-2500-10-11050025001074011085
GW500-2600-15-16050026001574016084
GW500-2400-22-22050024002274022085
GW500-2650-24-25050026502474025085
