Advantages of spiral non-clog delivery pump impeller

Large diameter, no clogging or winding

Spiral non-clogging transfer pumps provide exceptional clogging-free performance. Its large open channel has the characteristics of high

efficiency and no clogging, making it easier to transport large solids and long fiber materials.

The spiral non-clog delivery pump combines the advantages of traditional centrifugal pumps and spiral pumps (or volumetric pumps). It is

composed of 1 or 2 large-angle open twisted blades. It has a unique structure and good passing performance. It can transport large particles,

Long fiber, high viscosity, high concentration liquid. The conveying slurry runs smoothly, is less destructive to the slurry, and has good non-destructive

 performance.

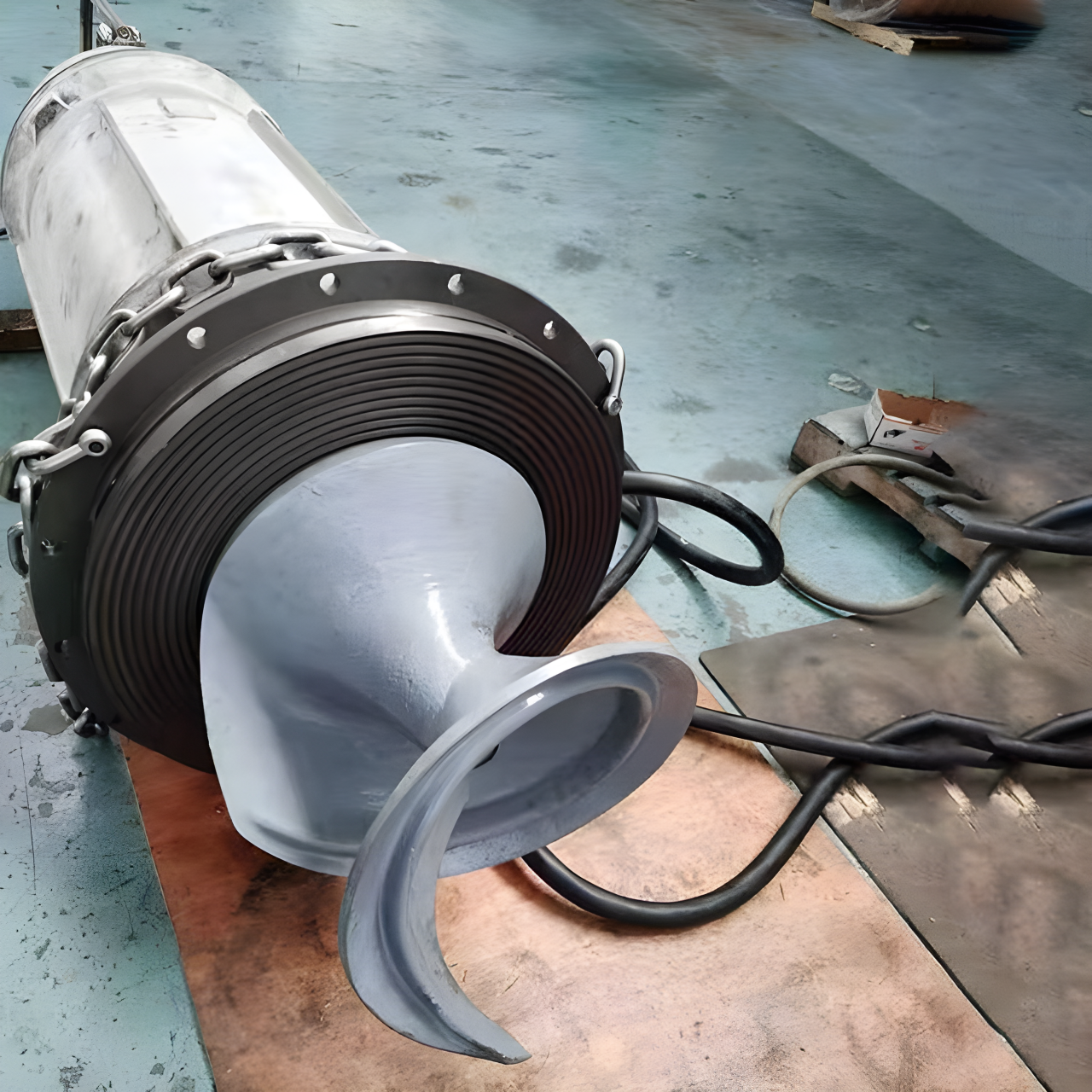

The impeller of the spiral non-clog delivery pump is its core part. It adopts a unique twisted spiral impeller blade and is composed of a spiral part and

 a centrifugal part.

Spiral part: Produces a spiral propulsion effect. The front end of the impeller is sickle-shaped. The radius of the blades gradually increases along the hub,

 guiding the liquid flow and transported objects to the vicinity of the axis. The spiral action is then used to push them along the axis to the centrifugal part.

Provides good suction capacity and low cavitation levels.

Centrifugal part: converts the impeller energy into pressure energy in the volute. Due to the action of the centrifugal part, the liquid is discharged from the discharge port
