Large flow channel spiral centrifugal pump submersible pump types

Spiral centrifugal submersible pump

Spiral centrifugal axial flow pump

Spiral centrifugal dry pump

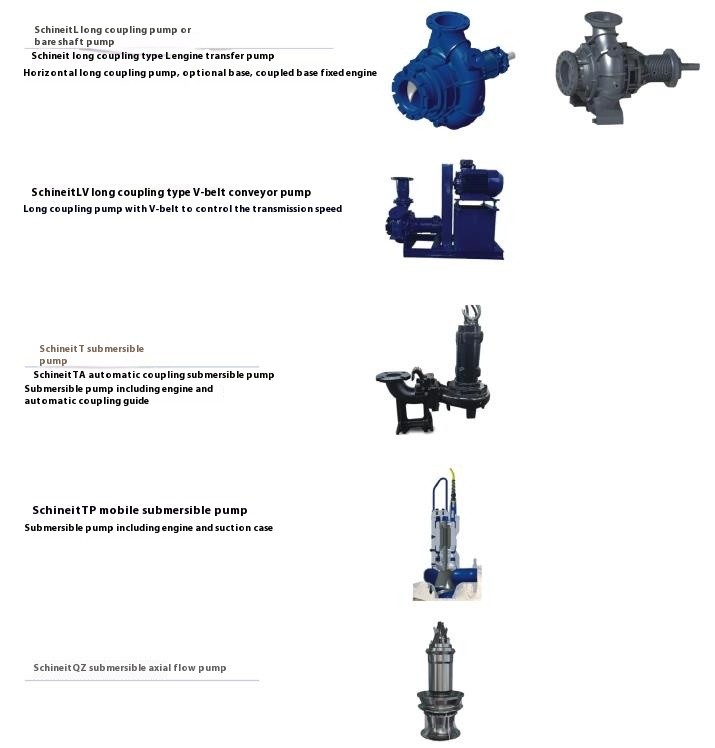

Long coupling pump or bare shaft pump

Long coupling L-type engine transfer pump Horizontal long coupling pump, optional base, coupling base fixed engine

Long coupling V-belt transmission pump Long coupling pump, equipped with V-belt to control transmission speed

submersible pump

Automatic coupling submersible pump

Submersible pump including engine and automatic coupling guide

Mobile submersible pump

QZ submersible axial flow pump

Large flow channel spiral centrifugal pump submersible pump product material

Pump casing: cast iron (GG25), optional high chromium 304, 316, duplex steel or other materials

Impeller: ductile iron (GGG50), optional high chromium 304, 316, duplex steel or other materials

Bearing box: cast iron (GG25) optional high chromium 304, 316, duplex steel or other materials

Shaft: martensitic stainless steel 1.4021, optional high chromium 304, 316, duplex steel or other materials

Large flow channel spiral centrifugal pump submersible pump seal

Wear resistance, double "back-to-back" mechanical seals, equipped with intermediate seal cooling oil chamber

Standard seal specifications: elastomer, rotating surface, static surface

Product side: silicon carbide, silicon carbide, fluororubber

Motor side: carbon, ceramic, NBR

By convention, the product side sealing surface faces the liquid and the motor side sealing surface faces the motor side.

Special order options include gland packing, API seal flush solutions and specialized seal face material-elastomer combinations.

motor

Large flow channel spiral centrifugal pump submersible pumps are usually equipped with IEC motors with a rated operating power

of 50Hz. There is a growing demand for motor efficiency worldwide, and large flow channel spiral centrifugal submersible pumps are

suitable for the latest version of high-efficiency IE3 motors. Some models can be equipped with ultra-efficient permanent magnet motors.

Motor ordering options include country-specific voltage, NEMAC and ATEX certified motors and hydraulic or pneumatic drives.

Pump material options

To prevent cavitation when pumping abrasive and corrosive media, Schineit pump material options include:

316 stainless steel impeller and pump housing h

NATEX explosion-proof certified motors

Coatings include polyurethane and Lican° (nylon-11 fiber) N

Soft nitriding and ferritic nitrocarburizing surface hardened cast iron impeller,

and pump housing (64HRC to 50μm)

5Plasma nitrided hardened stainless steel impeller and pump casing

Suction into tapered end tool groove

Submersible pump including engine and suction casing
